3.3.1 Basic Information
3.3.1.1 Connection
1) Disconnect the power to the balance.
2) Connect the AKB-301 cable to the KEY connector on the back of the balance.
3) Turn on the power to the balance.
3.3.1.2 Overview of Use
1) To set numeric values Press a function keys after the number keys.
2) To check the set numeric values
Press only a function key, not a number key.
3) To return to the mass display
Press the C key.
If numeric keys other than C are pressed, the
symbol illuminates to indicate that a number is being
entered.

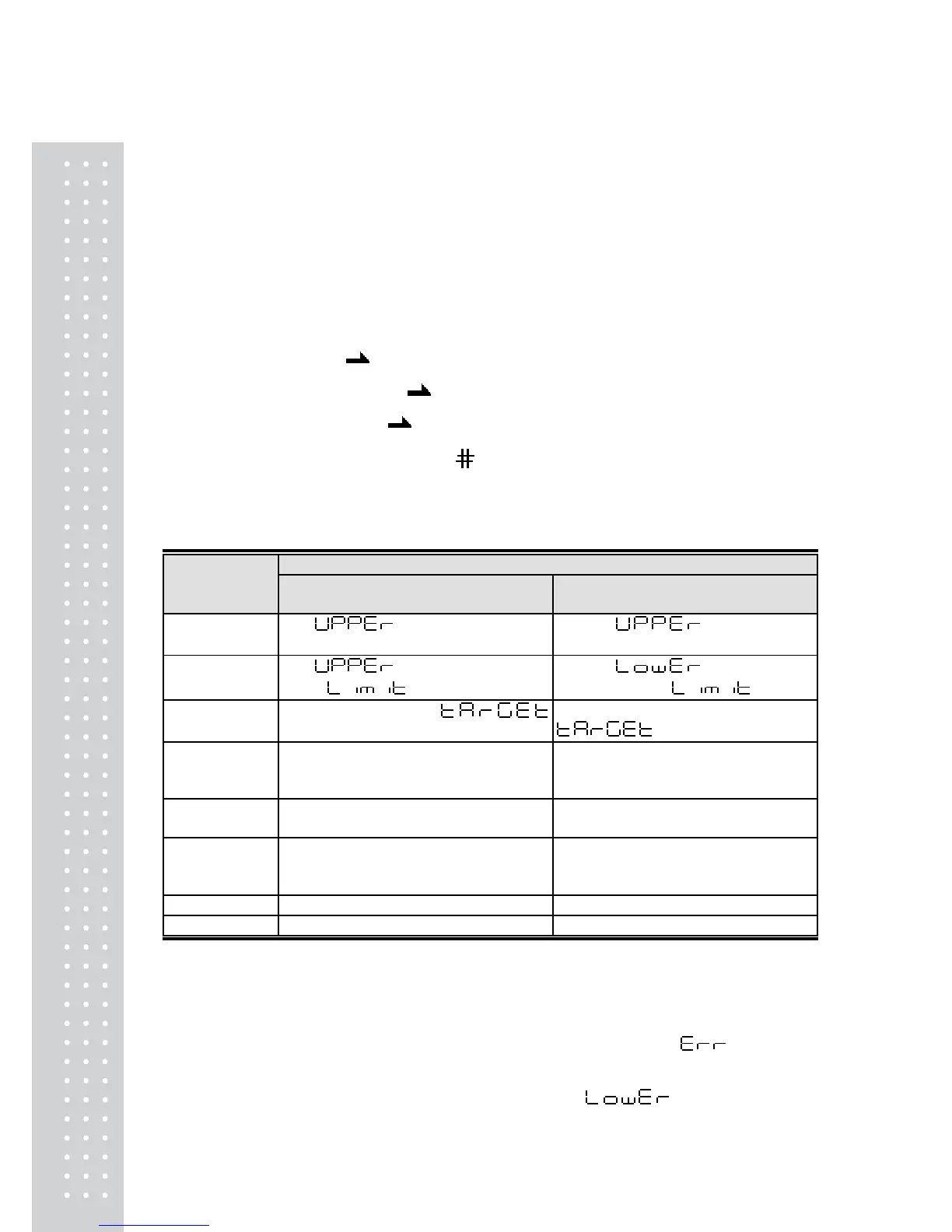

3.3.1.3 Summary of Function Keys
Function
Function key
When this key is pressed after the numeric
keys
If this key is pressed while the numeric
keys are not pressed *1
UPPER key *2
Sets
value of graphic display. Displays value of graphic
display.
LOWER key *3
Sets
value of graphic display
or sets
value.
Displays
value of graphic
display or displays
value.
TARGET key *4
For target display, sets
value.
For target display, displays
value.
g/PCS key Recalculates the weight with regard to the
present load as the input value (pieces) and
saves.
Switches gram-display unit and displays in
piece unit.
UNIT WEIGHT
key
Stores the numeric values entered as the
unit weight.
Displays the unit weight presently stored.
RECALC key Nothing is done. When piece is displayed, divides the
present load by the present displayed
piece count to recalculate the unit weight.
PRINT key *5 Outputs the input numerals. Outputs the displayed value.
TARE key *5 Sets Pretare value. Performs taring.
*1 When these values are displayed, the * and # symbols are illuminated on the screen.
Pressing the C key returns these displays to the mass display.
These displays can be output (printed) with the PRINT key.
*2 This key functions only when a comparator is used in Group or Level mode.
is displayed
for other modes.
*3 When a comparator is used in Group or Level mode, is the target value.
