ANALOG OUT(0~10V) INTERFACE
This option transmits the indicated weight value to external devices (Recoder, P.L.C Central
Control Room, etc.) that is adjusted by the Analog Signals via Voltage Out.
SPECIFICATIONS▶
Output Voltage 0~10V DC Output
Precision Over 1/1000

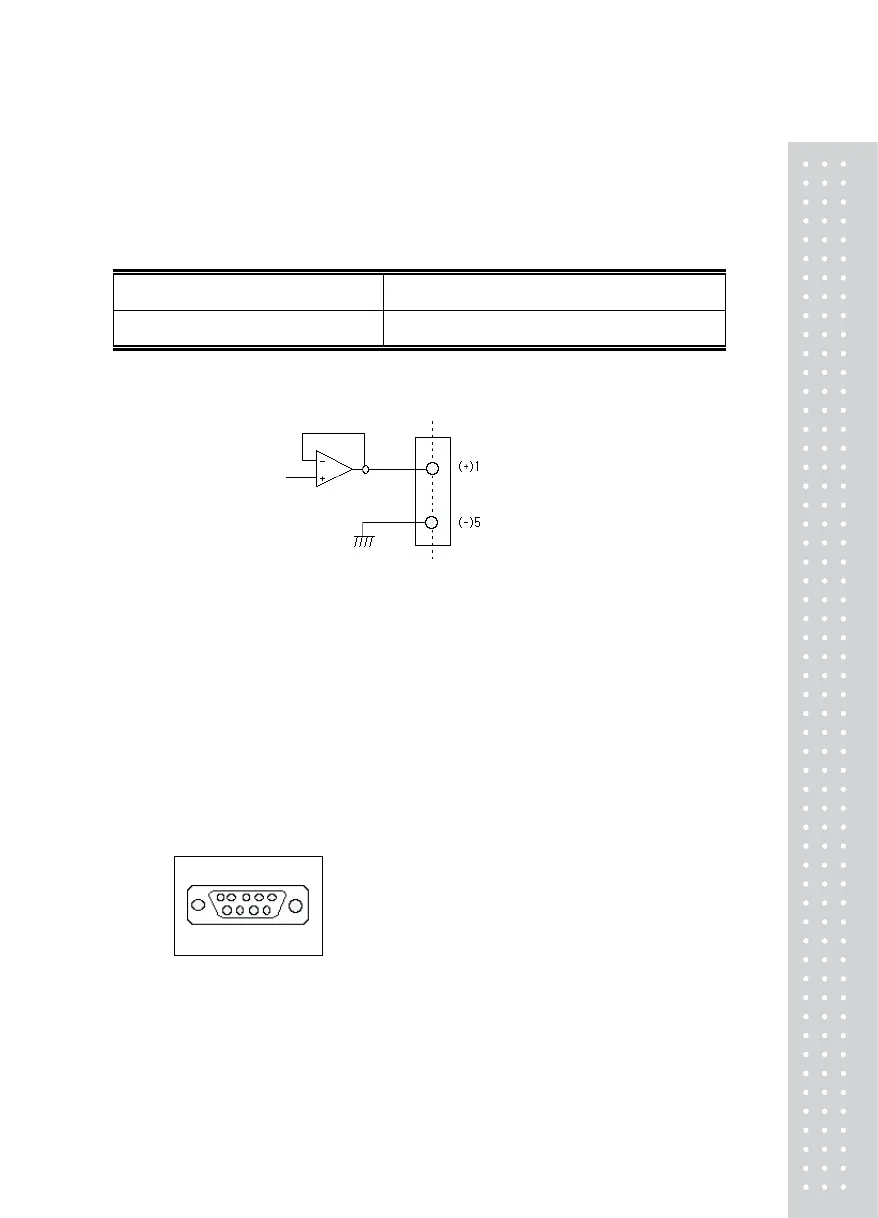

CONNECTOR (9P D▶ -TYPE Female) and Circuit
This voltage output outputs analog voltage (0~10V) proportional to the weight indication signal input.※
▶ ADJUST
1. The default value of the unit is 10V when the indicated weight is O, and 10V when it is at a maximum
load.
2. To adjust the output value range, adjust F70 and F71.
3. When using the DIGITAL MULTI-METER to measure the output voltage does not allow accurate
output, fine-tune VR (Zero), VR (SPAN) on ANALOG OUT PCB in the interior side of the ₁₂
Indicator.
※ Warning: This ANALOG OUTPUT outputs the ANALOG value converted from the
indicated weight value (MICRO PROCESS DATA) by the D/A CONVERTER.
※ Also, please note that because the D/A CONVERTER’s precision rate is under 1/4000, it is
not suitable for devices requiring more than 1/3000 precision rate.
CONNECTOR▶
9 Pin D-TYPE Female Connector
1 : HI(+)
5 : Lo(-)
