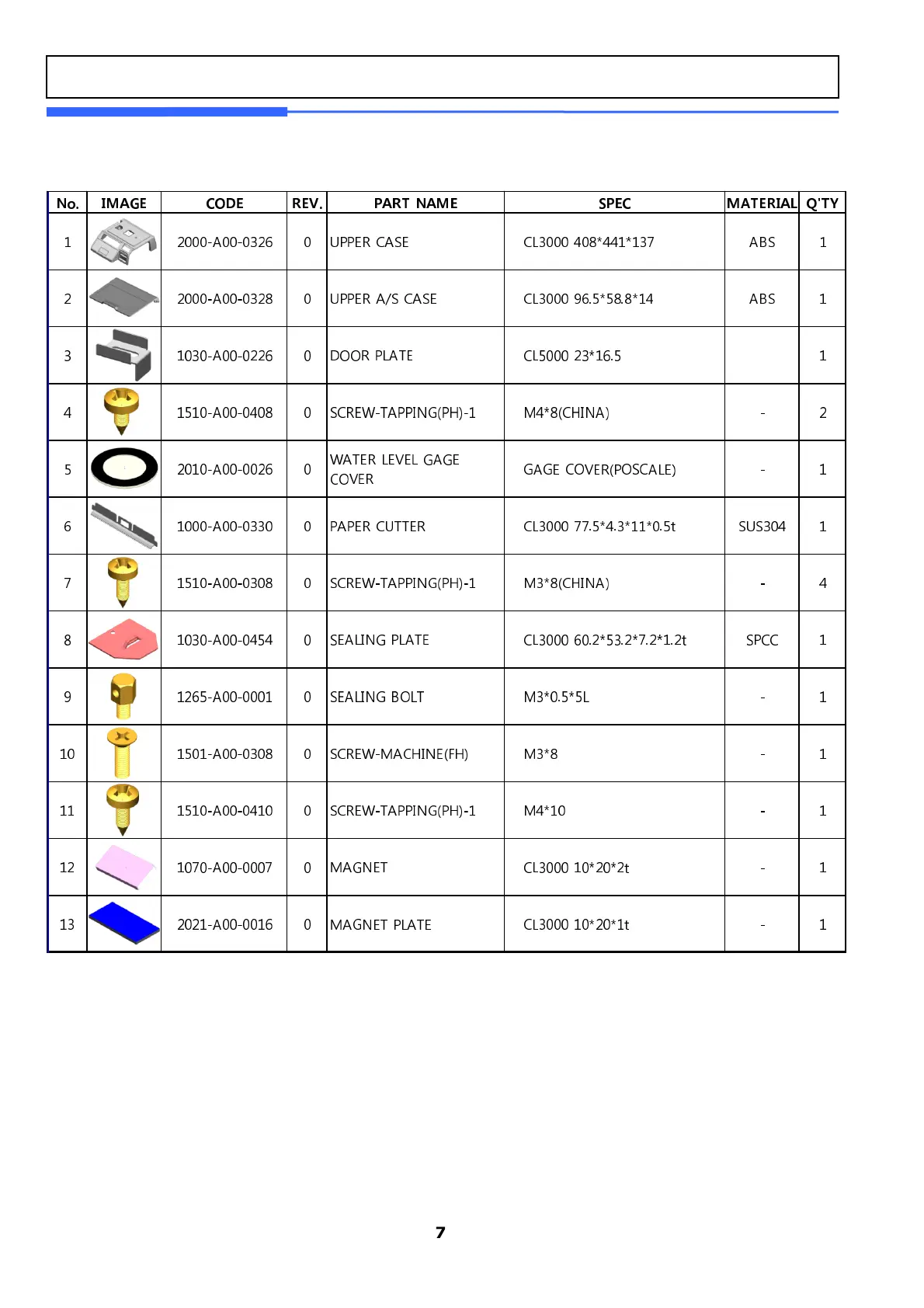

10.2 Mechnical Part
10.2.1 Upper Body Ass’y
No. IMAGE CODE REV. PART NAME SPEC MATERIAL Q'TY
1 2000-A00-0326 0 UPPER CASE CL3000 408*441*137 ABS 1
2 2000-A00-0328 0 UPPER A/S CASE CL3000 96.5*58.8*14 ABS 1
3 1030-A00-0226 0 DOOR PLATE CL5000 23*16.5 1
4 1510-A00-0408 0 SCREW-TAPPING(PH)-1 M4*8(CHINA) - 2
5 2010-A00-0026 0
WATER LEVEL GAGE
COVER
GAGE COVER(POSCALE) - 1
6 1000-A00-0330 0 PAPER CUTTER CL3000 77.5*4.3*11*0.5t SUS304 1
7 1510-A00-0308 0 SCREW-TAPPING(PH)-1 M3*8(CHINA) - 4
8 1030-A00-0454 0 SEALING PLATE CL3000 60.2*53.2*7.2*1.2t SPCC 1
9 1265-A00-0001 0 SEALING BOLT M3*0.5*5L - 1
10 1501-A00-0308 0 SCREW-MACHINE(FH) M3*8 - 1
11 1510-A00-0410 0 SCREW-TAPPING(PH)-1 M4*10 - 1
12 1070-A00-0007 0 MAGNET CL3000 10*20*2t - 1
13 2021-A00-0016 0 MAGNET PLATE CL3000 10*20*1t - 1
