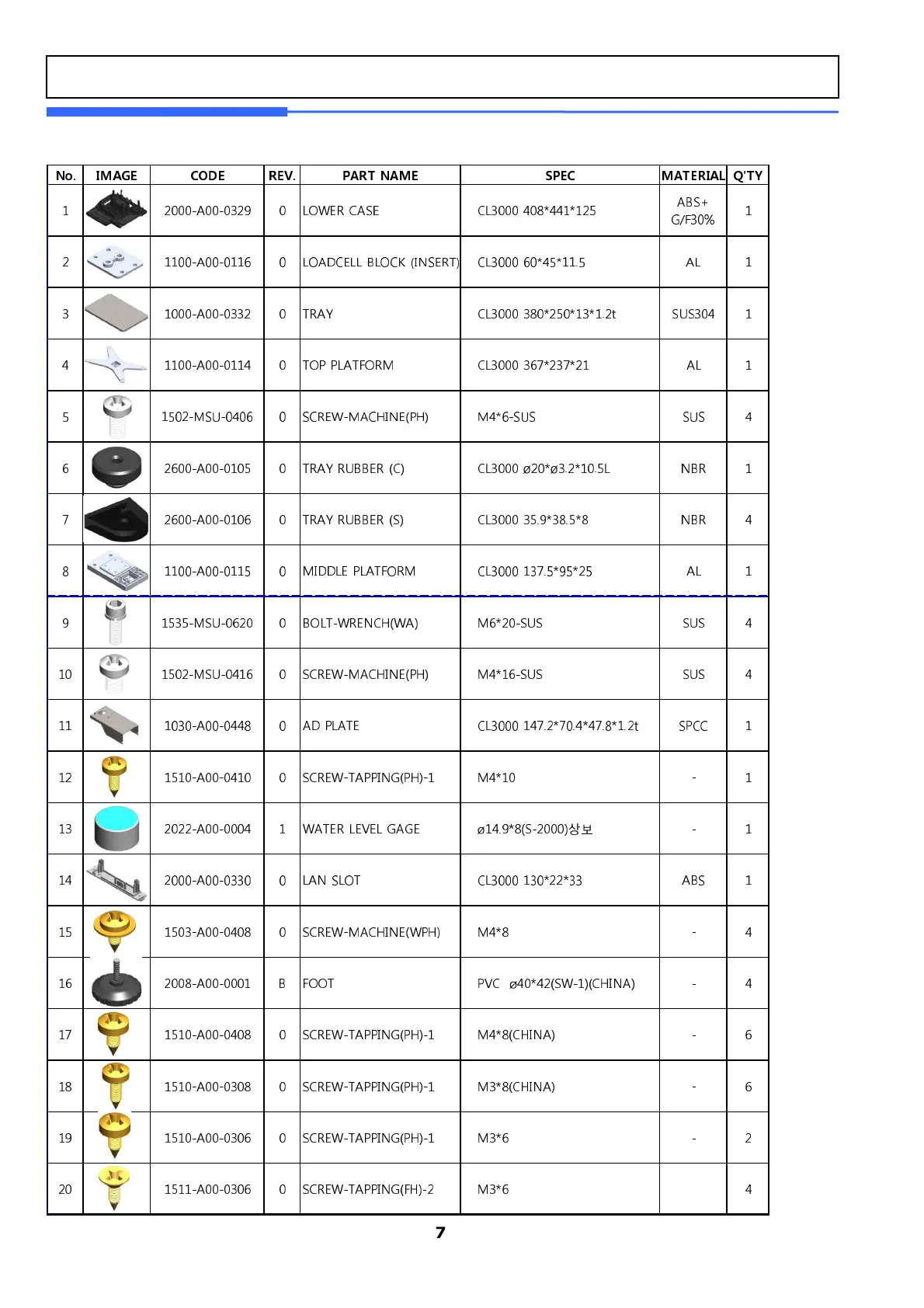

10.2.2 Lower Body Ass’y
No. IMAGE CODE REV. PART NAME SPEC MATERIAL Q'TY
1 2000-A00-0329 0 LOWER CASE CL3000 408*441*125
ABS+
G/F30%
1
2 1100-A00-0116 0 LOADCELL BLOCK (INSERT) CL3000 60*45*11.5 AL 1
3 1000-A00-0332 0 TRAY CL3000 380*250*13*1.2t SUS304 1
4 1100-A00-0114 0 TOP PLATFORM CL3000 367*237*21 AL 1
5 1502-MSU-0406 0 SCREW-MACHINE(PH) M4*6-SUS SUS 4
6 2600-A00-0105 0 TRAY RUBBER (C) CL3000 ø20*ø3.2*10.5L NBR 1
7 2600-A00-0106 0 TRAY RUBBER (S) CL3000 35.9*38.5*8 NBR 4
8 1100-A00-0115 0 MIDDLE PLATFORM CL3000 137.5*95*25 AL 1
9 1535-MSU-0620 0 BOLT-WRENCH(WA) M6*20-SUS SUS 4
10 1502-MSU-0416 0 SCREW-MACHINE(PH) M4*16-SUS SUS 4
11 1030-A00-0448 0 AD PLATE CL3000 147.2*70.4*47.8*1.2t SPCC 1
12 1510-A00-0410 0 SCREW-TAPPING(PH)-1 M4*10 - 1
13 2022-A00-0004 1 WATER LEVEL GAGE ø14.9*8(S-2000)상보 - 1
