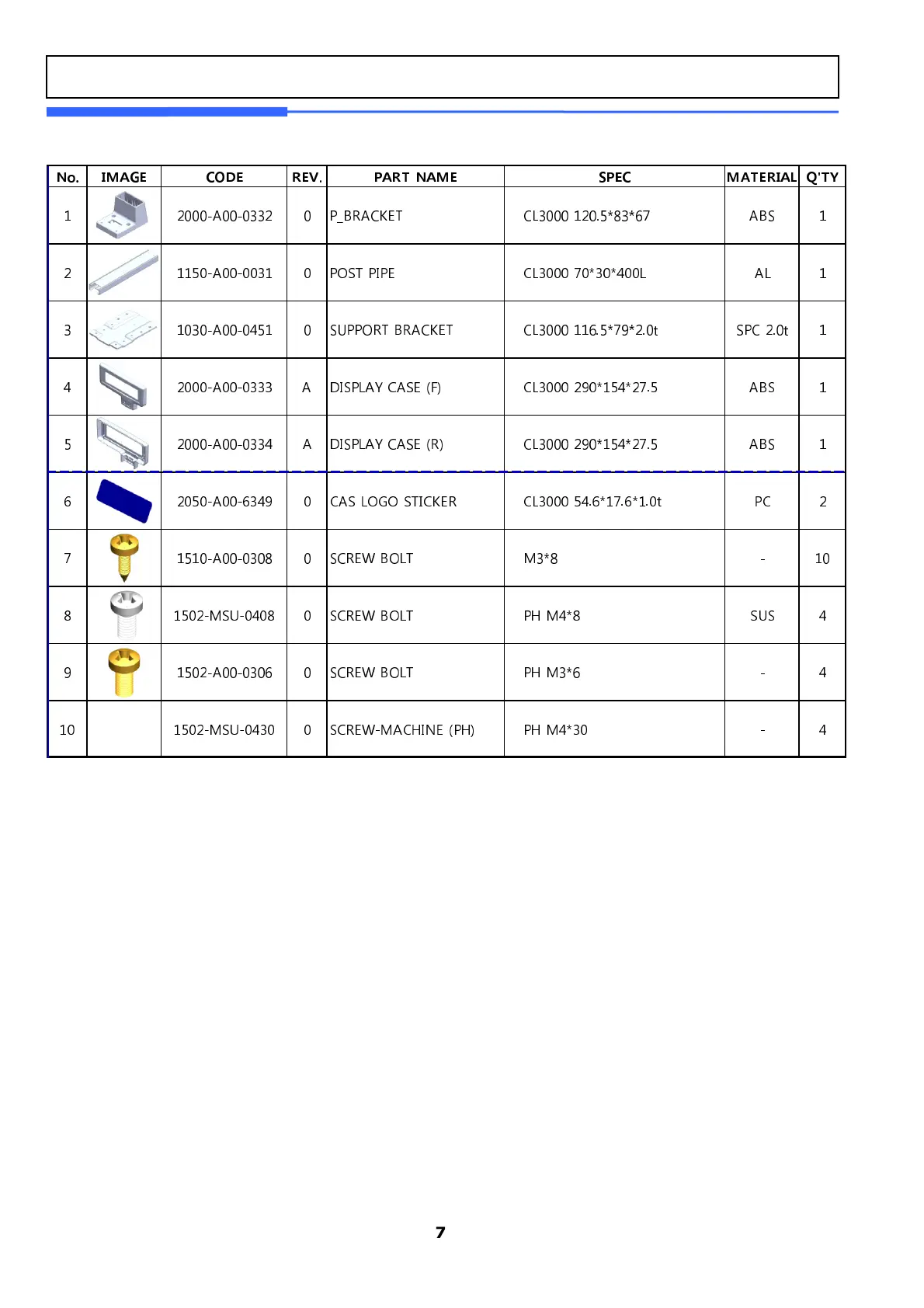

10.2.3 Poll Ass’y
No. IMAGE CODE REV. PART NAME SPEC MATERIAL Q'TY
1 2000-A00-0332 0 P_BRACKET CL3000 120.5*83*67 ABS 1
2 1150-A00-0031 0 POST PIPE CL3000 70*30*400L AL 1
3 1030-A00-0451 0 SUPPORT BRACKET CL3000 116.5*79*2.0t SPC 2.0t 1
4 2000-A00-0333 A DISPLAY CASE (F) CL3000 290*154*27.5 ABS 1
5 2000-A00-0334 A DISPLAY CASE (R) CL3000 290*154*27.5 ABS 1
6 2050-A00-6349 0 CAS LOGO STICKER CL3000 54.6*17.6*1.0t PC 2
7 1510-A00-0308 0 SCREW BOLT M3*8 - 10
8 1502-MSU-0408 0 SCREW BOLT PH M4*8 SUS 4
9 1502-A00-0306 0 SCREW BOLT PH M3*6 - 4
10 1502-MSU-0430 0 SCREW-MACHINE (PH) PH M4*30 - 4
