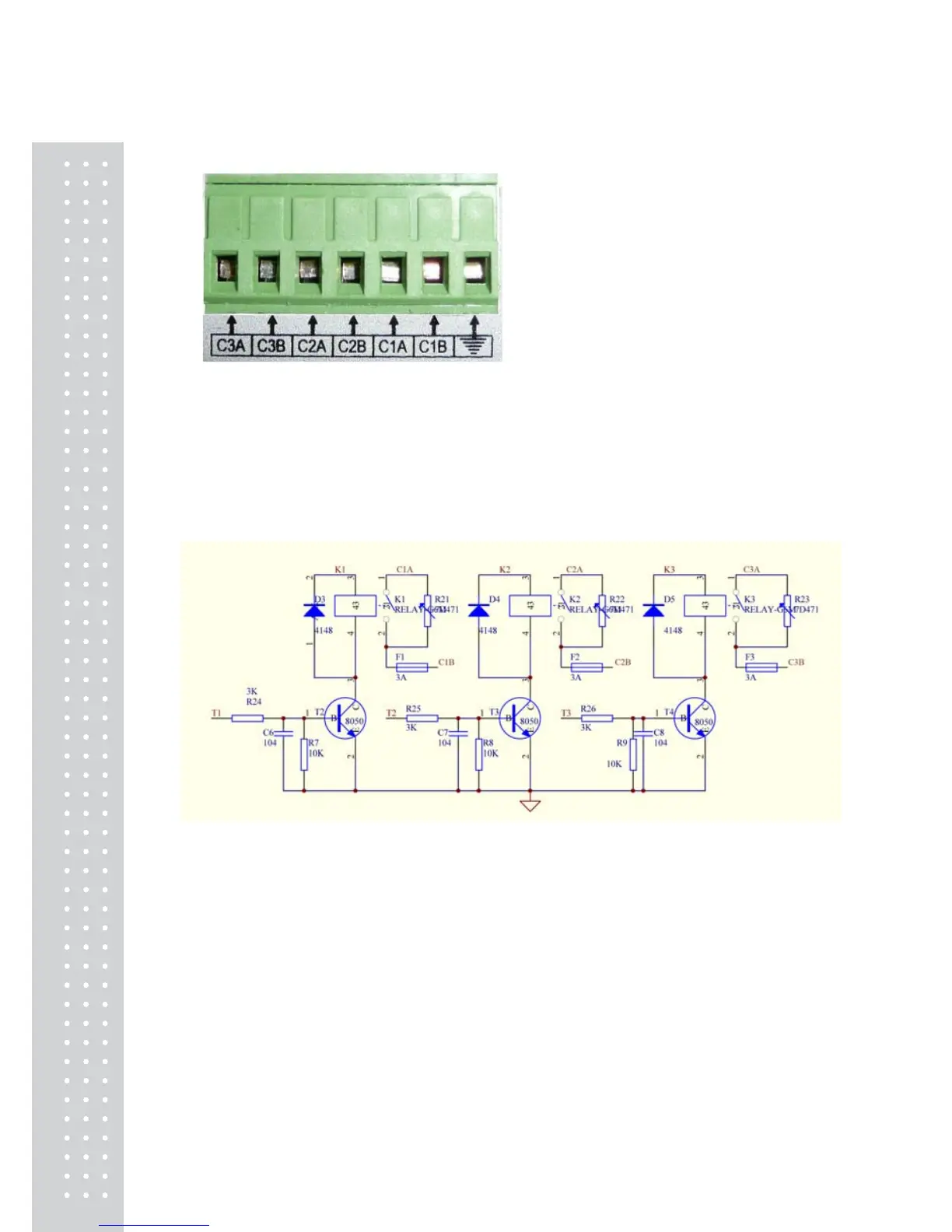

2.2 Signal Output port
There are three section controllers, (C1A、C1B)，(C2A、C2B)，(C3A、C3B),
Each of them has two wire connectors. They work respectively.
The signal output port can be connected to a lamp, beeper, annunciator, etc.
Note : (C1A, C1B)= LO, (C2A, C2B)=OK, (C3A, C3B)=HI
Appendix：Electric Schematic of Out-put
When it is connected with 3 color Annunciator, please use a cable to parallel
C1A, C2A and C3A.
And use other three cables to connect C1B, C2B, C3B with Annunciator.
