15

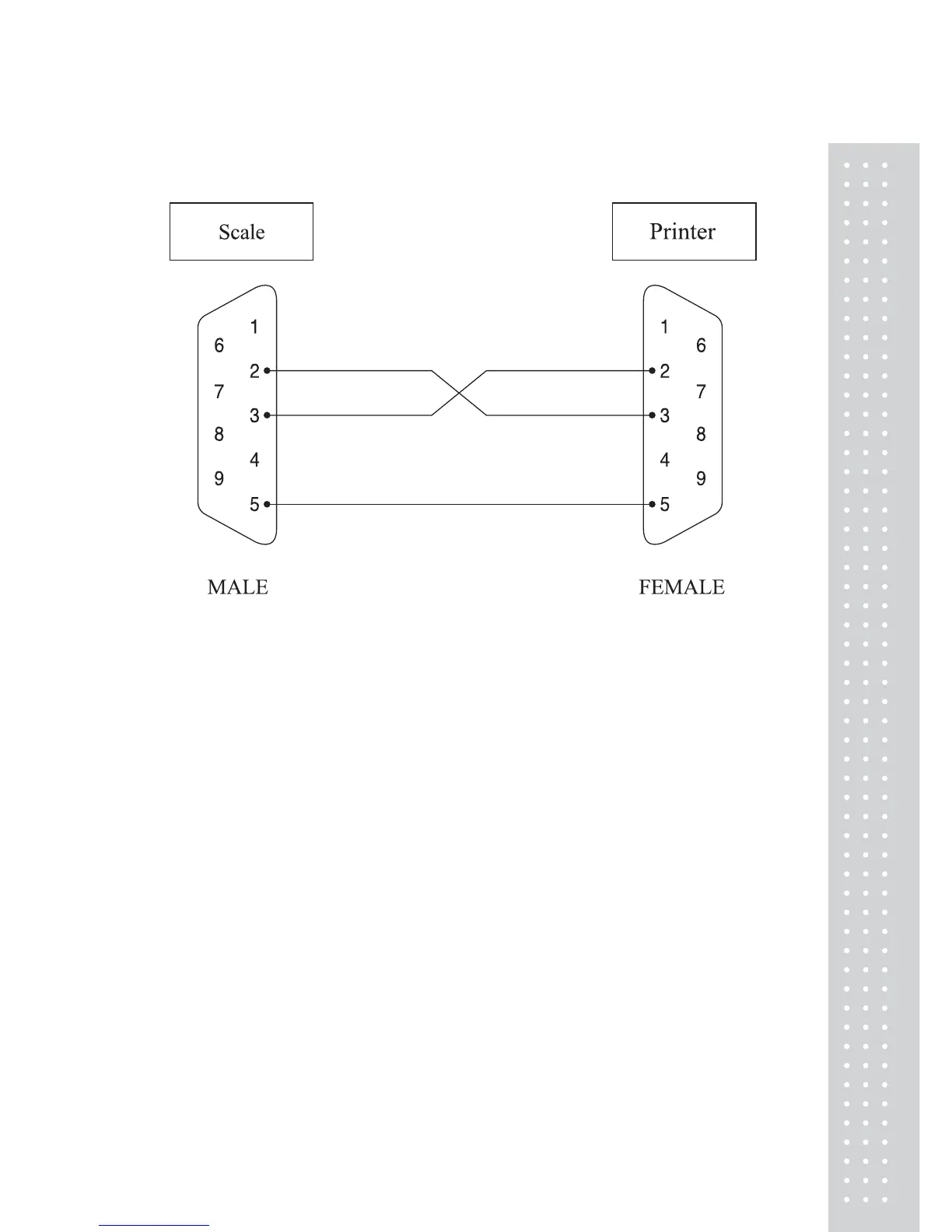

C. RS-232 output port
Connect EC-II and Printer using same cable. [male(EC-II) – female(DLP-50)]
GND GND
Rx
Tx
Rx
Tx
