DISTRIBUTION SYSTEMS - PRIMARY HYDRAULIC POWER SYSTEM

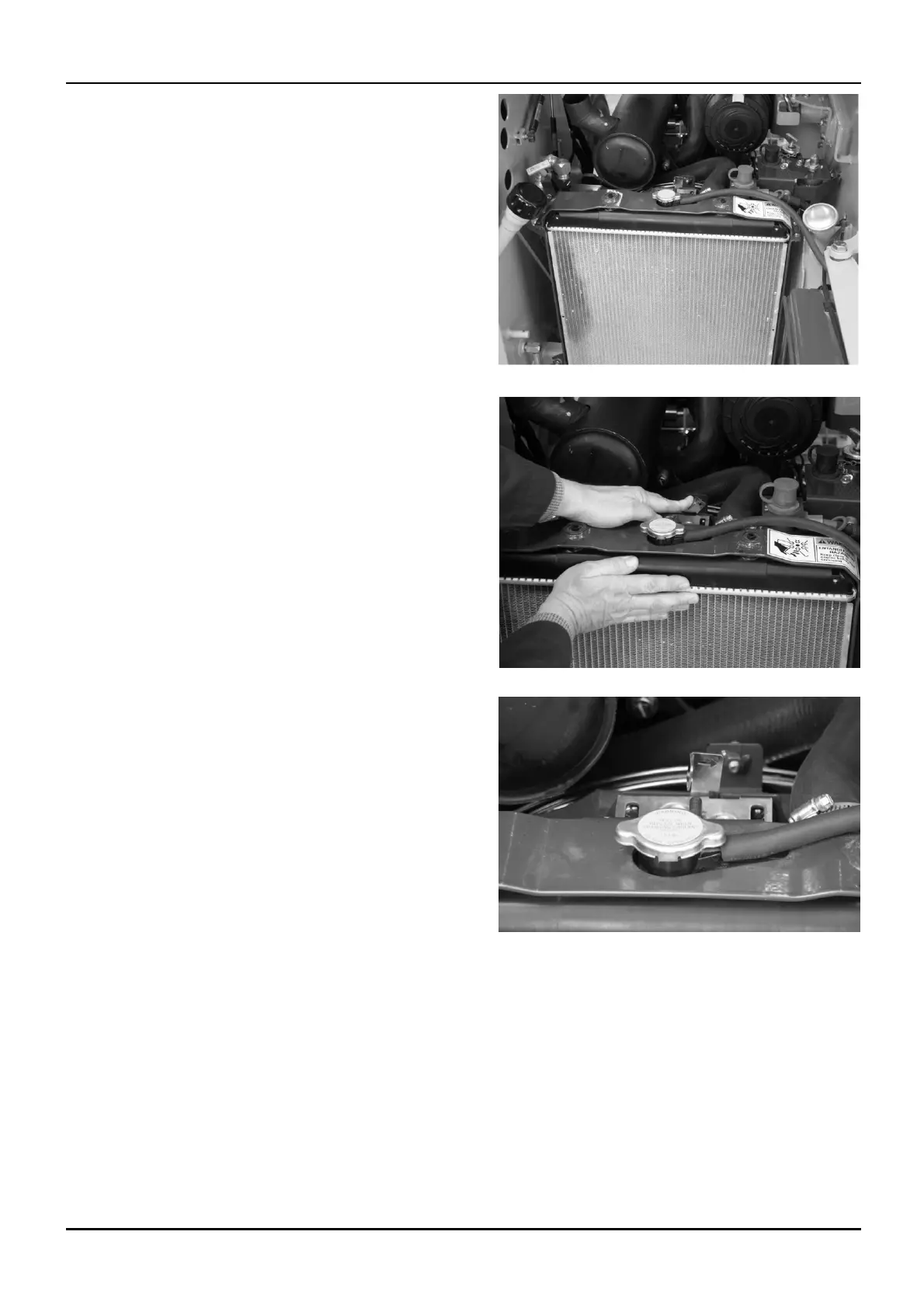

6. Loosen and remove the upper and lower hardware
that fasten the radiator to the chassis. Loosen and
remove the hardware from the remote jump start
and master d isconnect switch bracket (if equipped)
at the m ounting location on the oil cooler.
bdo4c008 4
7. Pushthehandleonthelatchtoreleasetheradiator
from the o il cooler. Tip the radiat or down to access
the hardware which fastens the radiator to the oil
cooler. Remove the hardware from the radiator and
remove the radiator from the engine compartment.
bd04c026 5
8. Loosen and remove the bolts which fasten the fan
guard to the oil cooler. Remove the fan guard from
the oil cooler.
BD04C002x 6
