7-MAINTENANCE
Loaderandbackhoewheeltoe-in(4WS)
1.Thefrontandrearwheeltoe-inispresetandadjust-
mentisnotnormallynecessary.
2.Periodicalchecksshouldbemadetoensurethecorrect
toe-inismaintained.
Adjustment
3.Placethemachineonalevelgroundpresentingnoel-
ementswhichcouldaffectadjustments.
4.Themachinewheelsmustbesettothenormal2wheel
steerpositionwiththewheelssetinastraightline.

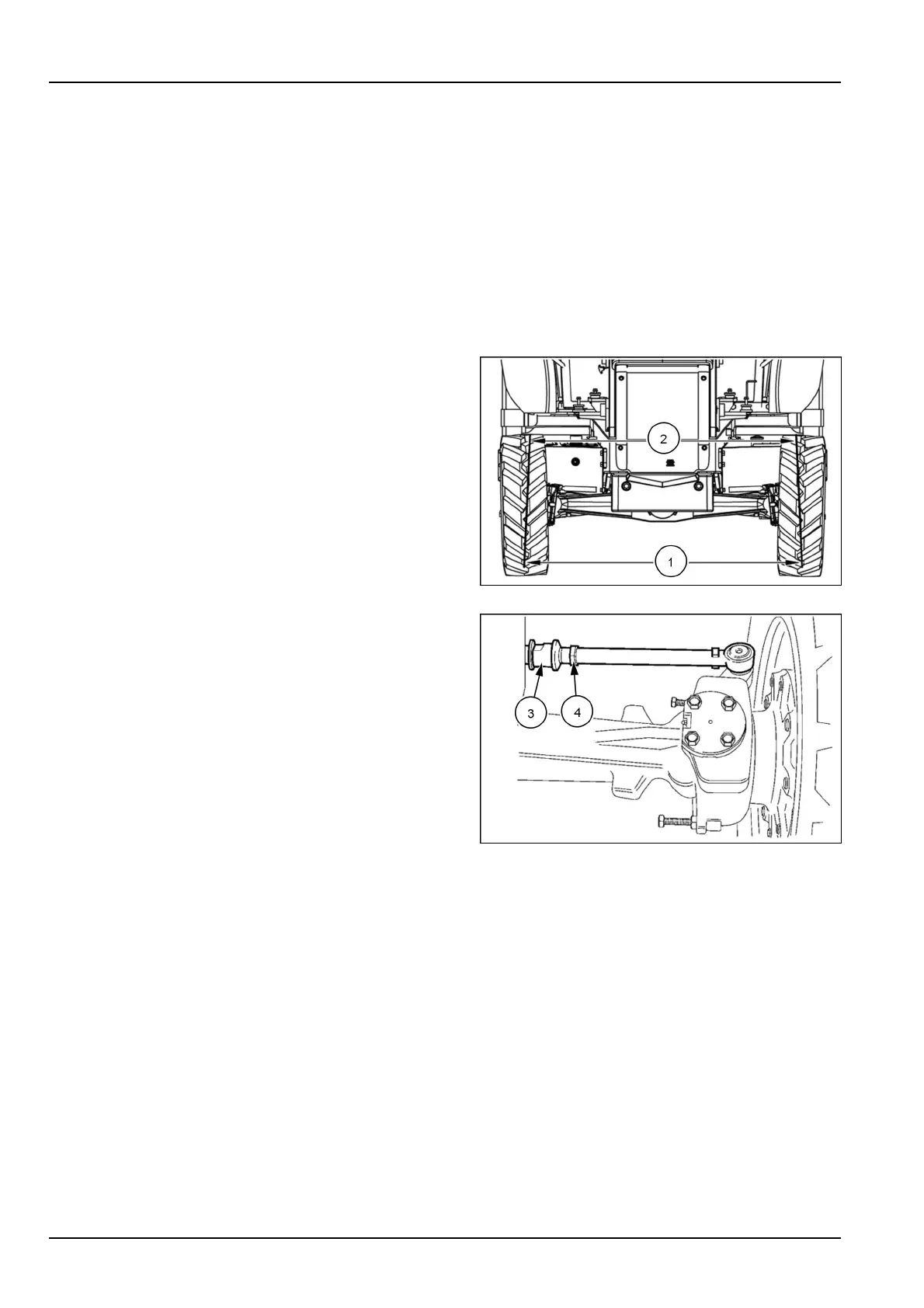

5.Measurethetoe-inbycheckingthetrackwidthbetween
thefrontofthewheelrim(1)andtherearofthewheel
rim(2)athubheight.
6.Thecorrecttoe-inmeasurementis0-2mm(0-
0.08in).
LEEN12T0481AA4
7.Loosenthelocknut(3)oneachwheeltierodand
tightenthenut(4)withawrench,untilthecorrectwheel
toe-inisobtained.
8.Tightenthelocknut(3)andrecheckthetoe-in.
LEEN12T0482AA_15
