Casio A-10 - Z305-1 PCB Assy

— 56 —
Z305-1 PCB Ass’y

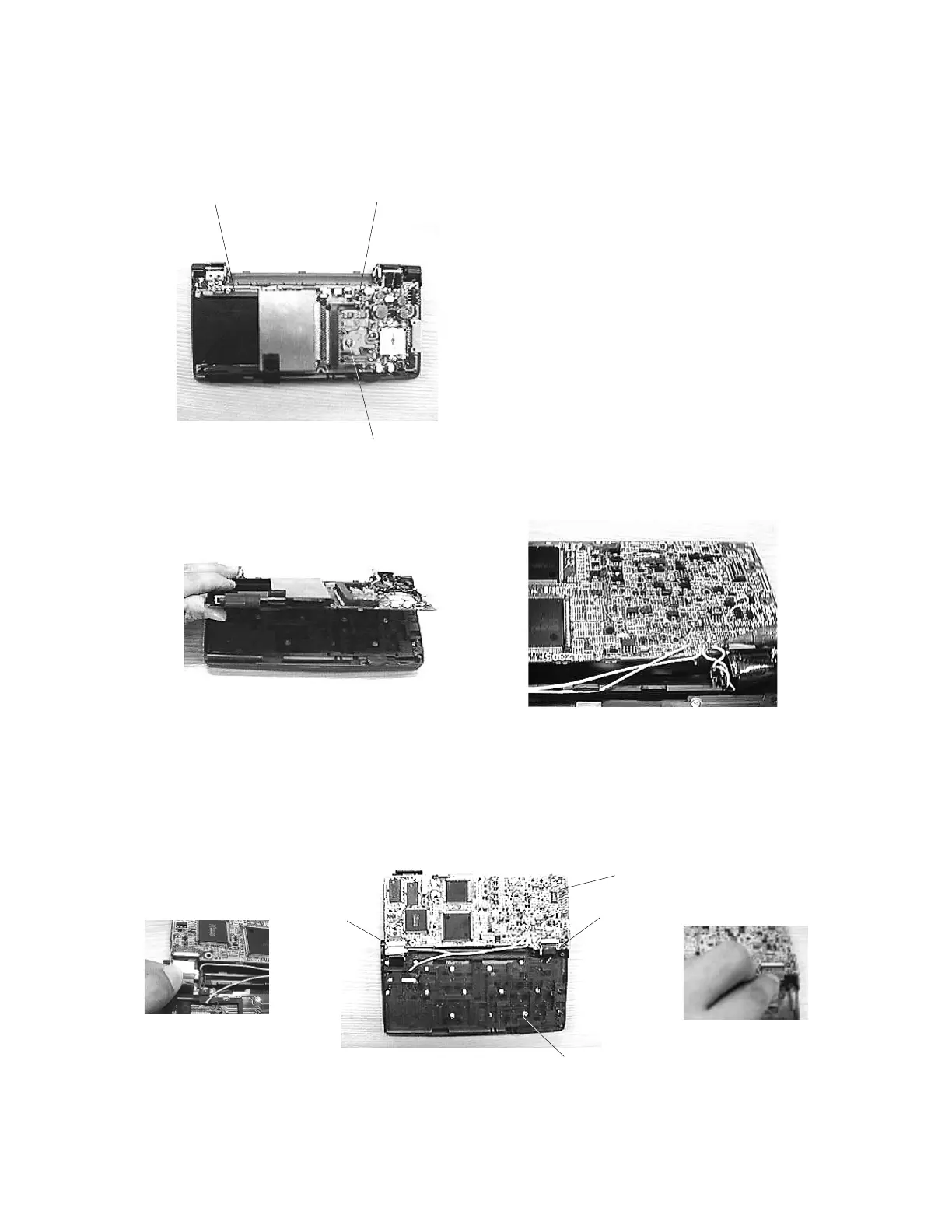

8. Remove 3 screws.
9. Turn over Z305-1 PCB Ass’y and then remove 4 terminals with soldering iron.
10. Remove 2 connectors from PCB ass’y and then remove PCB ass’y from Upper Case B ass'y.
Connector
Connector
12
3
Z305-1 PCB ass’y
Upper Case B ass'y
