— 6 —

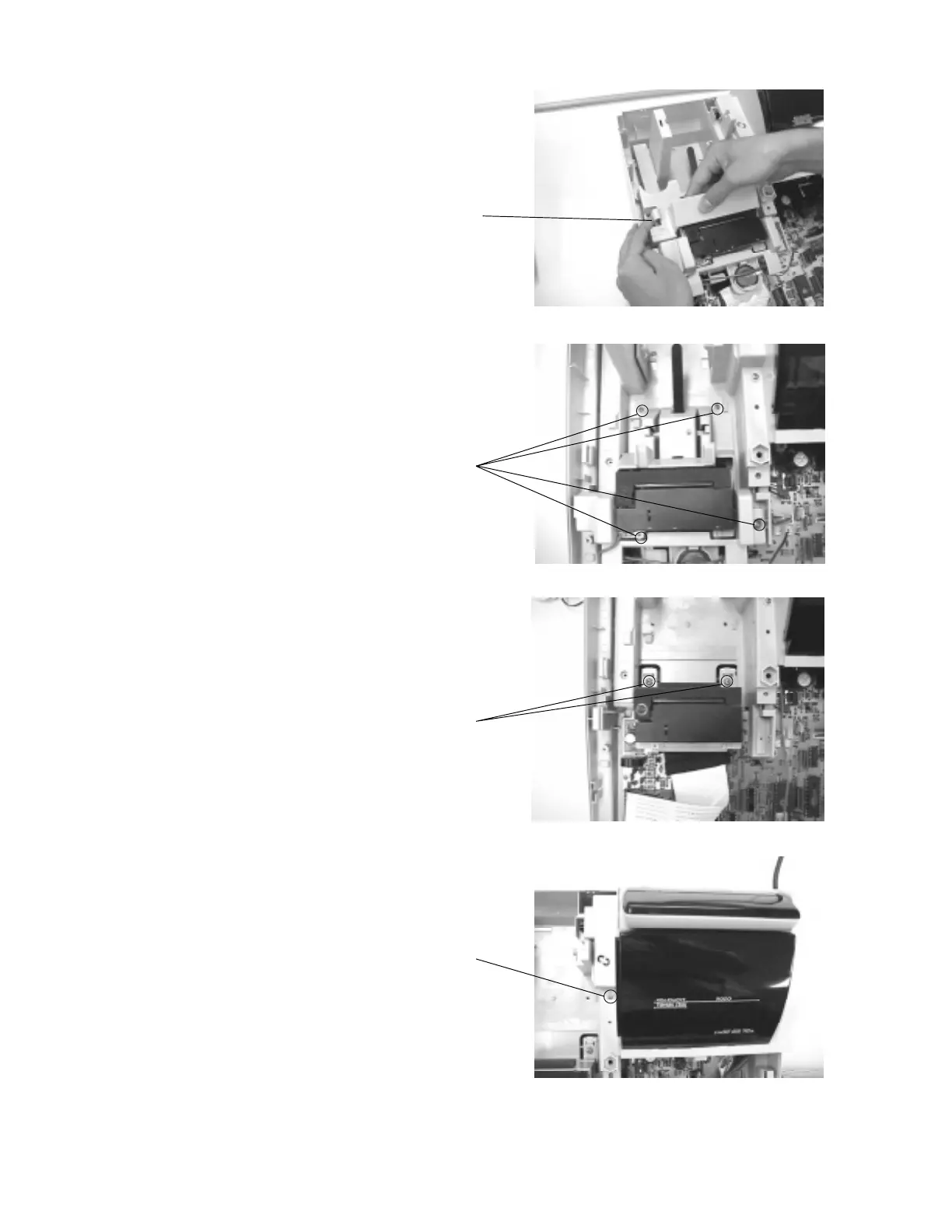

5. Release the hook them Remove the write side.
6. Release 3screws to remove printer plastic stand.
7. Release 2screws to remove printer unit.
8. Release 1 screw to remove display case.
Remove 1 screw.
Hook
Remove the 4 screws.
Remove the 2 screws.
7
9
Table of Contents
Service Manual
2
Default Chapter
2
Table of Contents
2
1 Specifications
3
2 Initialize (Mac) Operation
4
3 F-Init (Fmac) Operation
4
4 Block Diagram
5
Pcb Connection
5
Block Diagram (Circuit)
6
5 Disassembly (Fe-700)
7
Main Parts
7
6 Circuit Explanation
10
Power Supply Circuit
10
CPU (IC11: Upd78052Gc-A46-8BT)
11
Display Controller (IC2: Upd16312Gb-3B4)
13
Initilize IC (Reset Circuit)
14
Power down Detection Circuit (PWD)
14
Address Latch Circuit
14
RAM / ROM / Fiscal ROM Bank Selection Circuit
15
Fiscal ROM Address and Data Selection
16
Head Drive Circuit for Printer
17
VPP Sensor Circuit
18
Power Supply Circuit for Display
19
7 Diagnostic
20
To Start the Diagnostic Program
20
Check Item
20
Operation of each Test
20
Switch Status Test
21
Individual Function Test
22
Fiscal ROM Test
25
To Exit the Diagnostic Test
25
8 Error Code
26
Operation Error Code
26
Fiscal ROM Error Code
27
System Lock Code
28
9 IC Data
29
10 Pcb Layout
34
Model : Fe-700 (Ex-287 Mexican Version)Mex
35
11 Circuit Diagram
35
1 Location of Printed Circuit Board
36
2 Main Pcb Circuit
37
Main Pcb Circuit (1/8)
37
Main Pcb Circuit (2/8)
38
Main Pcb Circuit (3/8)
39
Main Pcb Circuit (4/8)
40
Main Pcb Circuit (5/8)
41
Main Pcb Circuit (6/8)
42
Main Pcb Circuit (7/8)
43
3 Keyboard
44
4 Fiscal Memory Board
45
5 Power Supply Circuit
46
6 Main Display
47
7 Rear Display
48
8 Battery
49
9 Motor
50
10 Paper End Sensor
51
Parts List
52
Explode View
53
Main Pcb Block (E287Pol-1)
55
Button Block
57
Customer Display Block (E287-E2-2)
57
Main Display Block (E287-E2-1)
57
Fiscal Memory Block
58
Lower Case Block
58
Power Supply Block
58
Upper Case Block
58
Battery Block
59
Other
59
Printer Mount Block
59
Sensor Cover Block
59
Drawer(Dl-1326)
60
Printer M190G
62
4
Based on 1 rating
