Changing the Pitch
EN-132
Use the Octave Shift feature to raise or lower the pitch of all notes in octave units. Each part (Upper 1,
Upper 2, Lower) can be set individually when using the Layer or Split functions.
• For details on parts, see “Sounding Two Different Tones at the Same Time (Layer)” (page EN-44)
and “Splitting the Keyboard Between Two Tones (Split)” (page EN-46).
1.
Touch the FUNCTION button to display the FUNCTION Menu.
2.
Use the touch ring to select “KEYBOARD” > “PART OCT SHIFT”, then touch the
ENTER button.

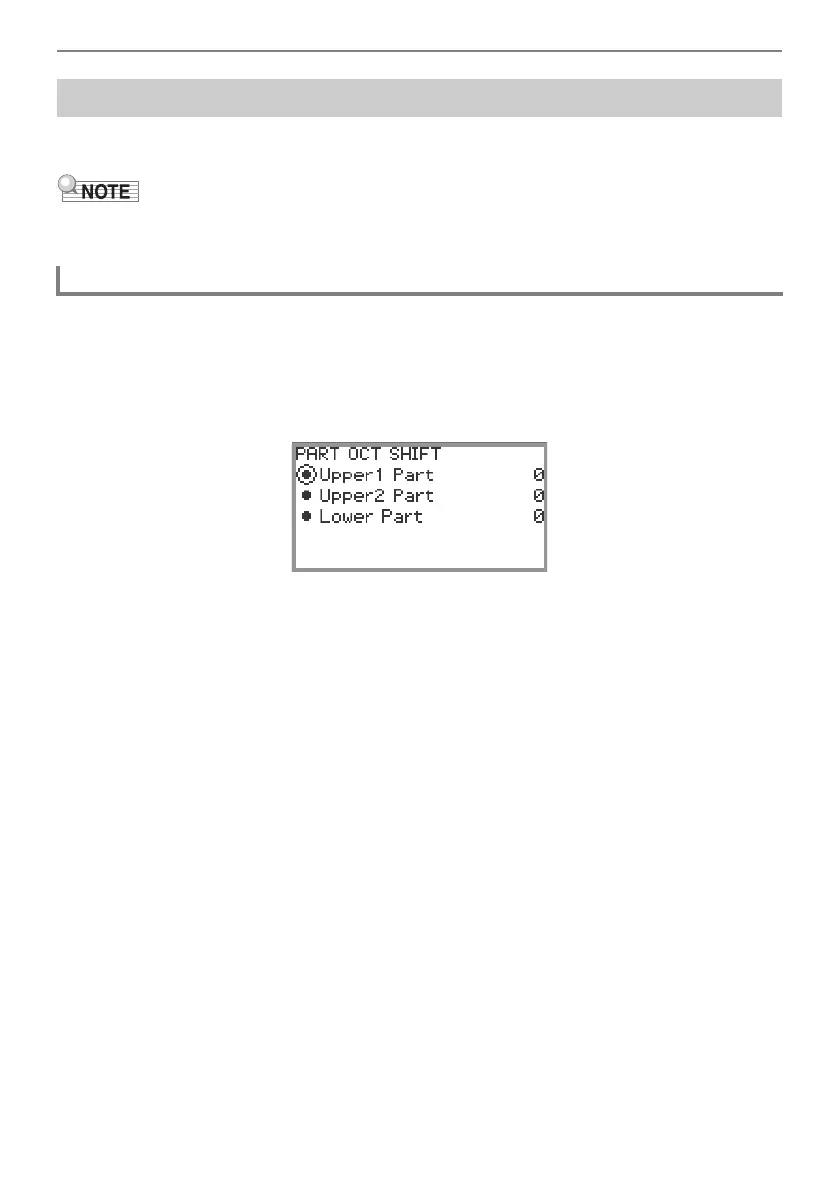

The “PART OCT SHIFT” screen appears.
3.
Touch the top or bottom of the touch ring to select the part to octave shift.
4.
Change the setting value of the selected part.
• Trace the touch ring to change the desired setting value.
5.
Repeat Steps 3 and 4 as necessary.
Changing the Pitch in Octave Units (Octave Shift)
Using Octave Shift Separately for Each Part (Upper 1/Upper 2/Lower)
To Next Page
