25

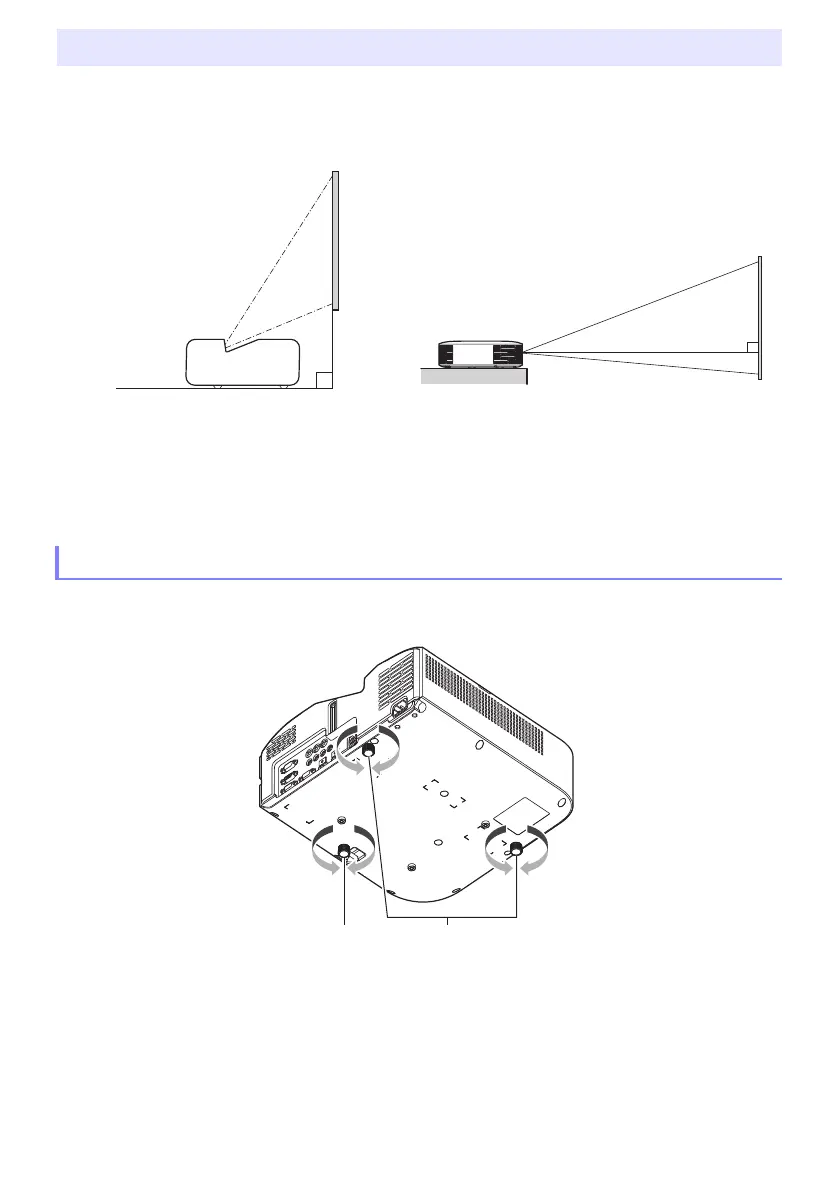

Locate the projector on a desk, table, or stand that is firm and level. Make sure that you allow
sufficient space around the sides and back of the projector for proper ventilation. The illustrations
below show how the projector should be oriented relative to the screen for optimum projection.
Test Pattern
You can project a test pattern when setting up the projector to help determine the proper image size,
projector orientation, etc. For details, see “Test Pattern Projection” on page 51.
XJ-UT Series
Rotate the single foot on the bottom front of the projector to fine adjust the projector’s vertical
angle.
Rotate the two feet on the bottom back of the projector to fine adjust the projector’s horizontal
angle.
Placing the Projector on a Desk or on the Floor
XJ-UT Series XJ-F Series
Adjusting the Vertical Angle of the Projector
Screen
Screen
