5.12.1 TO RESET THE ROUTER FEED RATE:
1. Locate the Feed Rate knob on the left side of the case and fully loosen the Jamb Nut. See
Fig 13.

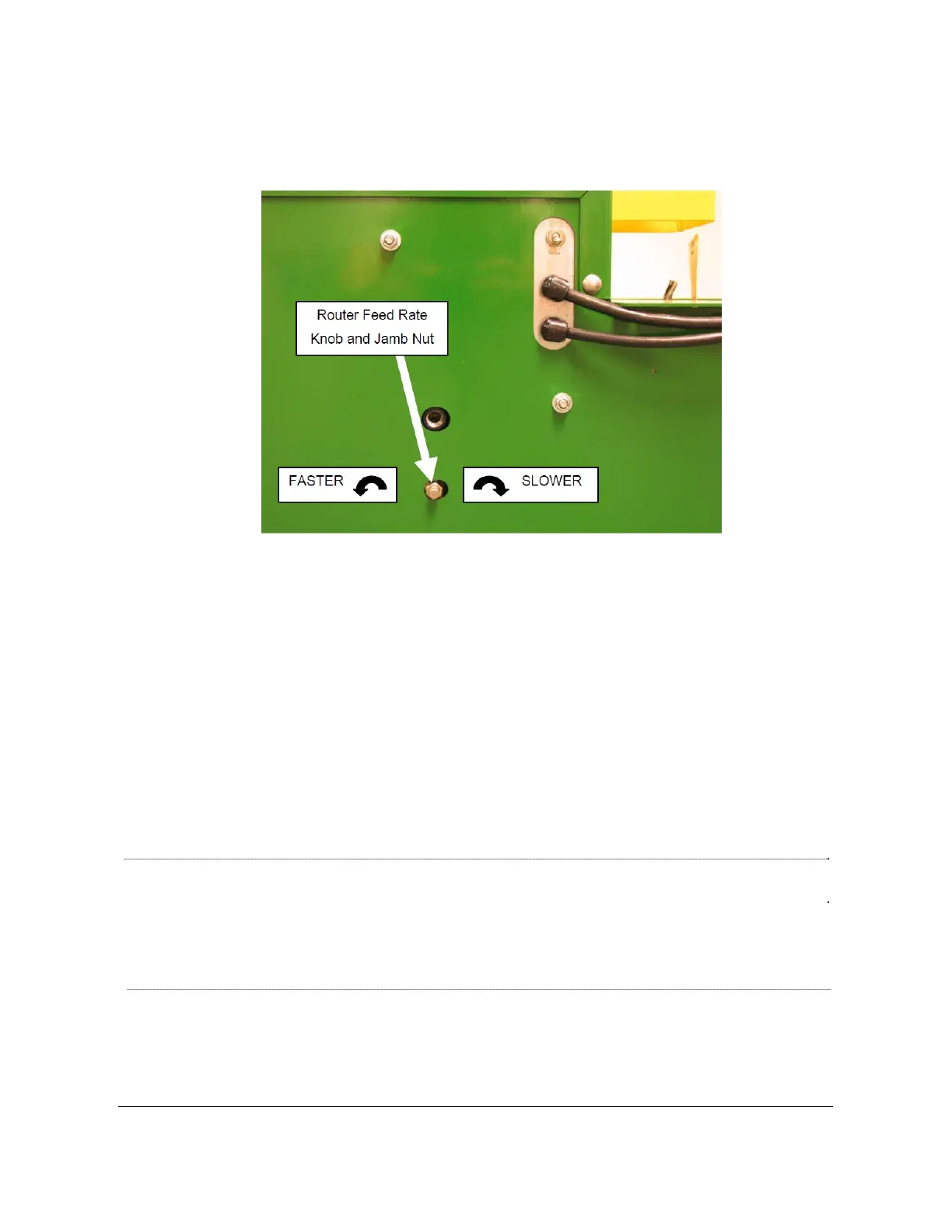

Fig 13
2. Rotate the Feed Rate knob fully clockwise until it stops.
3. Rotate the Feed Rate knob 2 full revolutions counter-clockwise. This setting is typical for
hard woods.
4. Adjust the Feed Rate to your material by ½ or ¼ turn
at a time to obtain a clean, smooth
pocket.
5. Counter-clockwise increases the Router Feed Rate, Clockwise decreases the Router
Feed Rate.
6. Tighten the Jamb Nut after adjustments are finalized.
Note: If the Router comes up with the Feed rate knob turned fully clockwise or if it runs at full speed
regardless of the setting, the Feed rate valve should be replaced. This can be confirmed by closing
the router feed rate valve (clockwise until it hits the mechanical stop). Initiate a dry cycle. Router
should not move. If the router moves forward, replace the router feed rate valve. Now, turn the
Router Feed Rate valve up slightly (counter clockwise). If the router moves slowly then the router
feed valve should be OK. If the router comes up extremely fast, replace the router feed rate valve.
TSM-21 Diagnostic Manual Parker/Humphrey Solenoids
