5.7 Router Motor Operation 21.20
1. Disconnect power and air from the machine.
2. Open the rear door and locate the Drill Motor. Just to the right is a T-Knob that
tightens a large U-Bolt holding the Router Motor in place. See Fig 7.
The Router Motor has its own power switch located on the motor body. This switch should
be in the ON position as motor operation is controlled by the main Power Switch on the
machine. f our machine is equipped with a variable speed router motorosch
the variable speed rotator selector on the end of the router should be on the highest setting.
Warning: Do Not run the motor for more than two hours at a time. The motor requires a
1/2 hour
cool down period after each two hour period.

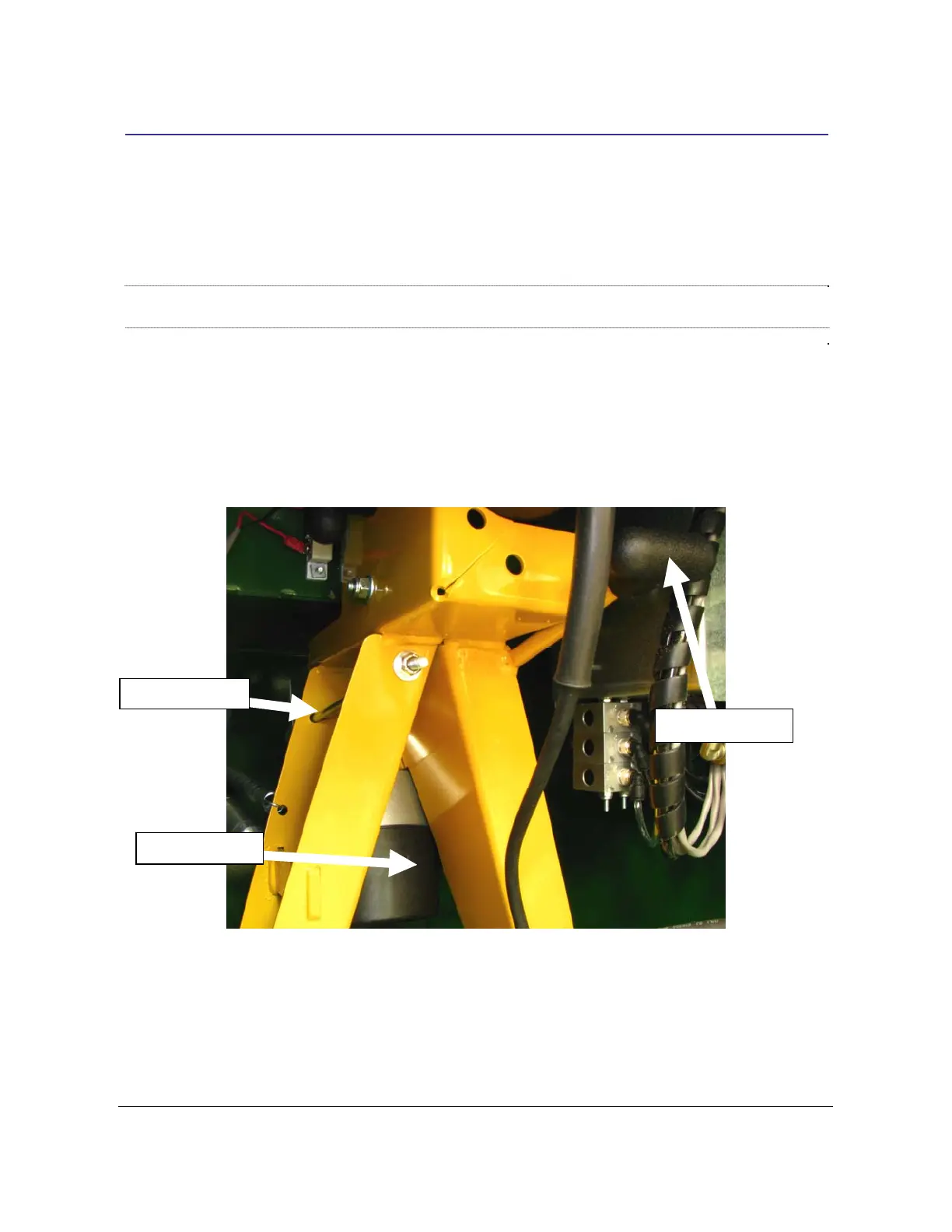

5.7.1 REMOVING / INSTALLING THE ROUTER MOTOR:
Router T-Knob
Router U-Bolt
Router Motor
Fig 7
3. Unplug the Router motor.
4. With your right hand loosen the Router T-Knob a few turns to provide enough slack to
drop the Router Motor down into your left hand and then out the rear door.
TSM-21 Diagnostic Manual Parker/Humphrey Solenoids
