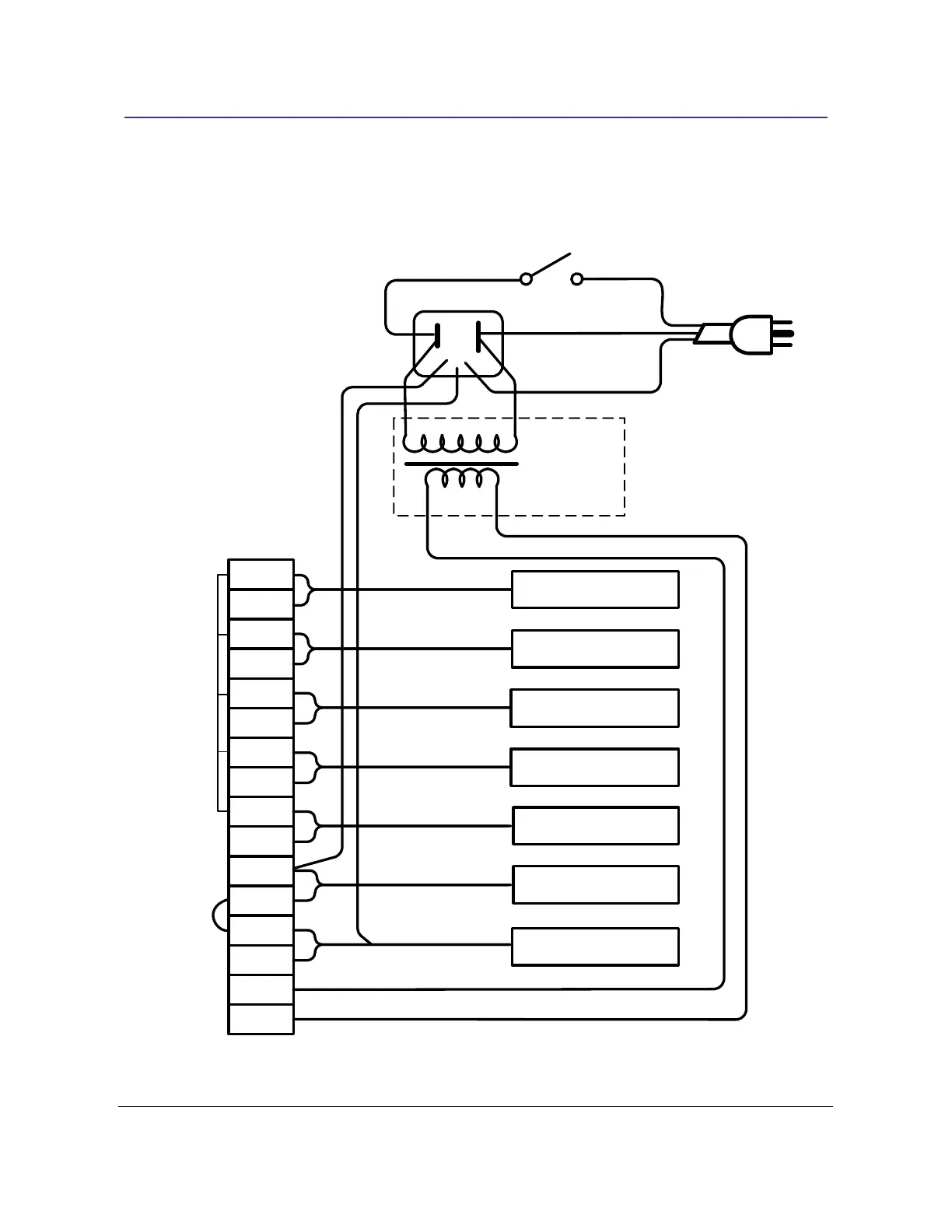

CASTLE TSM-21 - Appendix B - Wiring Diagram

7 Appendix B – Wiring Diagram 21.84
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Drill Solenoid Valve
Clamp Solenoid Valve
Drill Stop Switch
(NC-Normally Closed)
Router Solenoid Valve
Foot Switch
(NO-Normally Open)
Router Stop Switch
(NC-Normally Closed)
15/16
EL-21G Circuit Board Terminal Strip
16
15
Wood Sensor Switch
(NO-Normally Open)
13/14
11/12
9/10
7/8
5/6
3/4
D
Black
Power Switch
White
Green
Power
Cord
24 VAC
Transformer
120VAC
System Ground
Foot Switch Ground
Outlet
+24 VDC
Castle Inc
TSM-21 Diagnostic Manual Parker/Humphrey Solenoids
