5.25 Tooling Check and Replacement 21.83
5.25.1 ROUTER:
1. Disconnect power and air from the machine.
2. Open the rear door and unplug both motors.

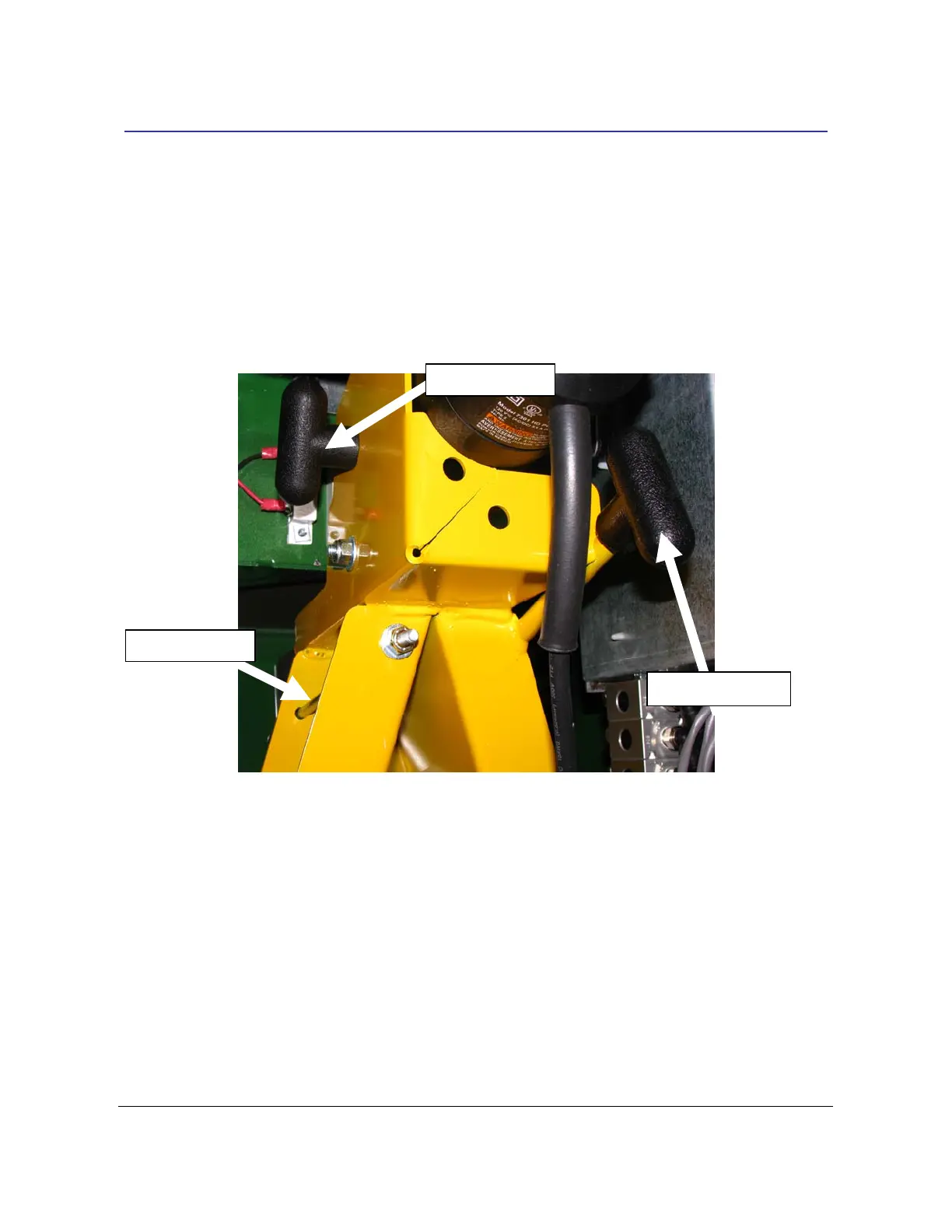

3. To the right of the Drill Motor is the Router T-Knob that tightens a large U-Bolt holding
the Router Motor in place. See Fig 25.
Drill T-Knob
Router T-Knob
Router U-Bolt
Fig 25
4. With your right hand loosen the Router T-Knob a few turns to provide enough slack to
drop the Router Motor down into your left hand and then out the rear door.
• ALTERNATE METHOD: Remove the four bolts and nuts attaching the work top and
remove the work top for access to the router.
5. Replace the bit. A Bit Gauge is provided to record your preferred Router Bit Height.
Once a preferred setting is selected, mark or scribe your settings on the aluminum plate.
(“R” Router) See Fig 26.
6. When re-installing, make sure the motor face is pushed up to seat flush with the tabs on
the yellow carriage (if unsure, remove table top to confirm location).
