5.12 Router Feed Rate Adjustment 21.32
Note: If the Pressure Regulator has been adjusted, readjust the Router Feed Rate (if
necessary) AFTER the Pressure Regulator setting has been finalized.
Fig 12b
4.
5.
6. If the Router Solenoid is stuck open or clogged, Perform procedure 21.30,
Unclogging the Router Solenoid.

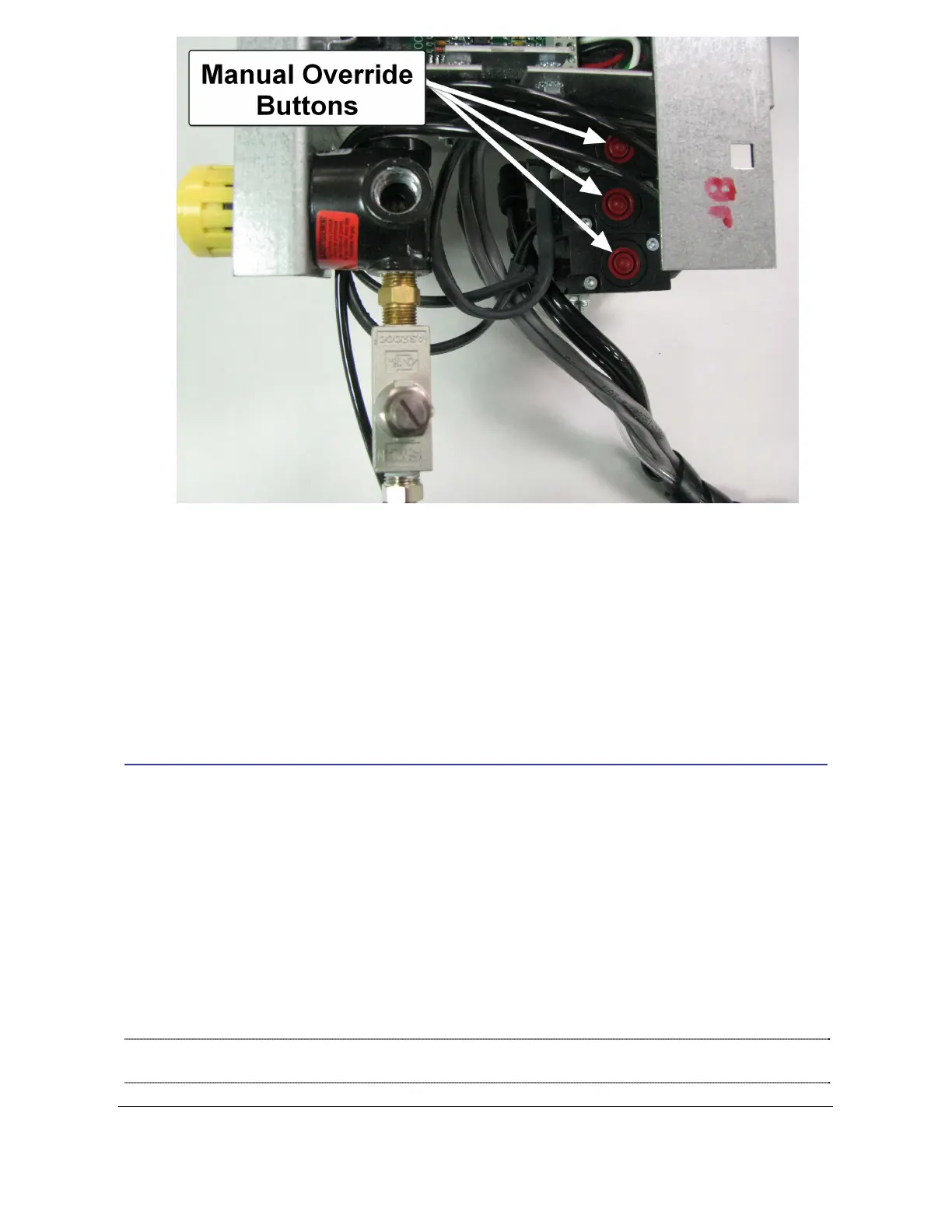

Press and hold the manual override button on the router solenoid.
If the carriage does not tilt toward the back of the machine, then the Router Solenoid may be
stuck closed or clogged.
The Router Fee
d Rate is adjustable to accommodate varying materials and/or bit types. If the
Router Feed Rate is too fast, stock slippage, poor pocket quality, or d
ulled tooling may result. If
the Router Feed Rate is too slow pocket burning and premature wear of the tooling may result.
Rule of Thumb: Router feed speed should be as fast as possible while still maintaining smooth,
clean, straight pockets. The harder the material, the slower the feed rate of the Router. feed
speed should be as fast as possible while still maintaining smooth, clean, straight pockets. The
harder the material, the slower the feed rate of the Router.
TSM-21 Diagnostic Manual Parker/Humphrey Solenoids
