6.8 PSD Belt Clip
The PSD belt clip provides a secure means to wear the PSD so that the E-Stop switch is presented with the best
possible aspect for immediate access; in a safety-critical application this is superior to an end-mounted switch that
may require a two-handed approach to activate.

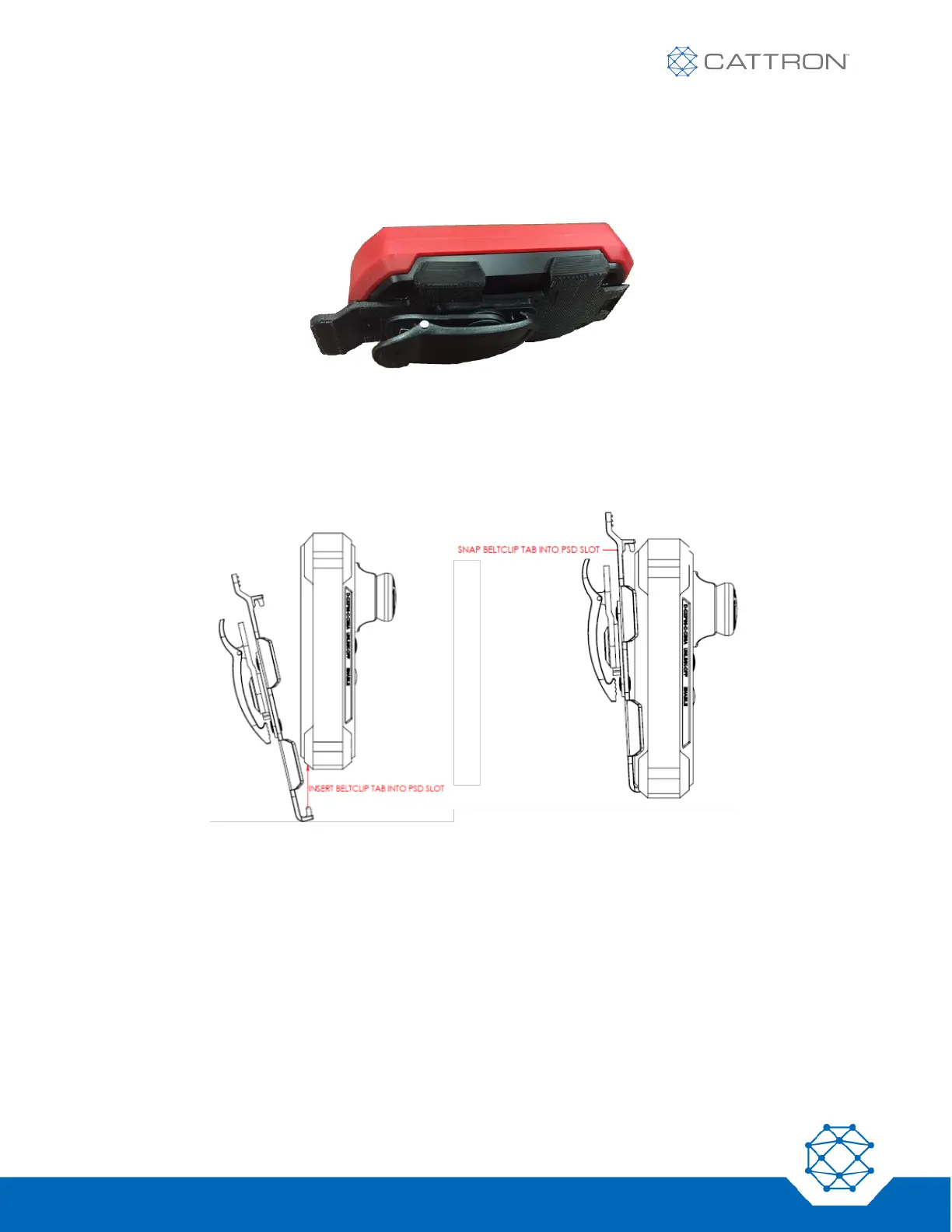

Figure 6: PSD Belt Clip
The belt clip should be attached to a belt that is no wider than 1.5 inches (38mm).
The PSD attachment can be rotated as required by the user.
To attach the PSD to the clip, see the diagram below. The PSD can be attached to the clip either way round.
Figure 7: PSD Belt Clip Attachment
