its operational status by reference to the MSD LEDs and LCD. All required information can also be obtained
through the Ethernet port.
In any case, the enclosure must provide an appropriate protection level for the environment in which it is installed
and also maintain the MSD within its stated operating parameters (see appendix).
The enclosure should provide suitable mechanical rigidity, IP rating, etc. The wiring should carry a suitable rating
for voltage, current, insulation, temperature rating, etc.
It is suggested that an enclosure approved for use by a recognized authority, such as UL, CSA, Intertek, TUV,
etc., be selected. The optional enclosure (Cattron Part Number 2OPT-8637-A102) provides a suitable level of
protection for most generic industrial and commercial environments.

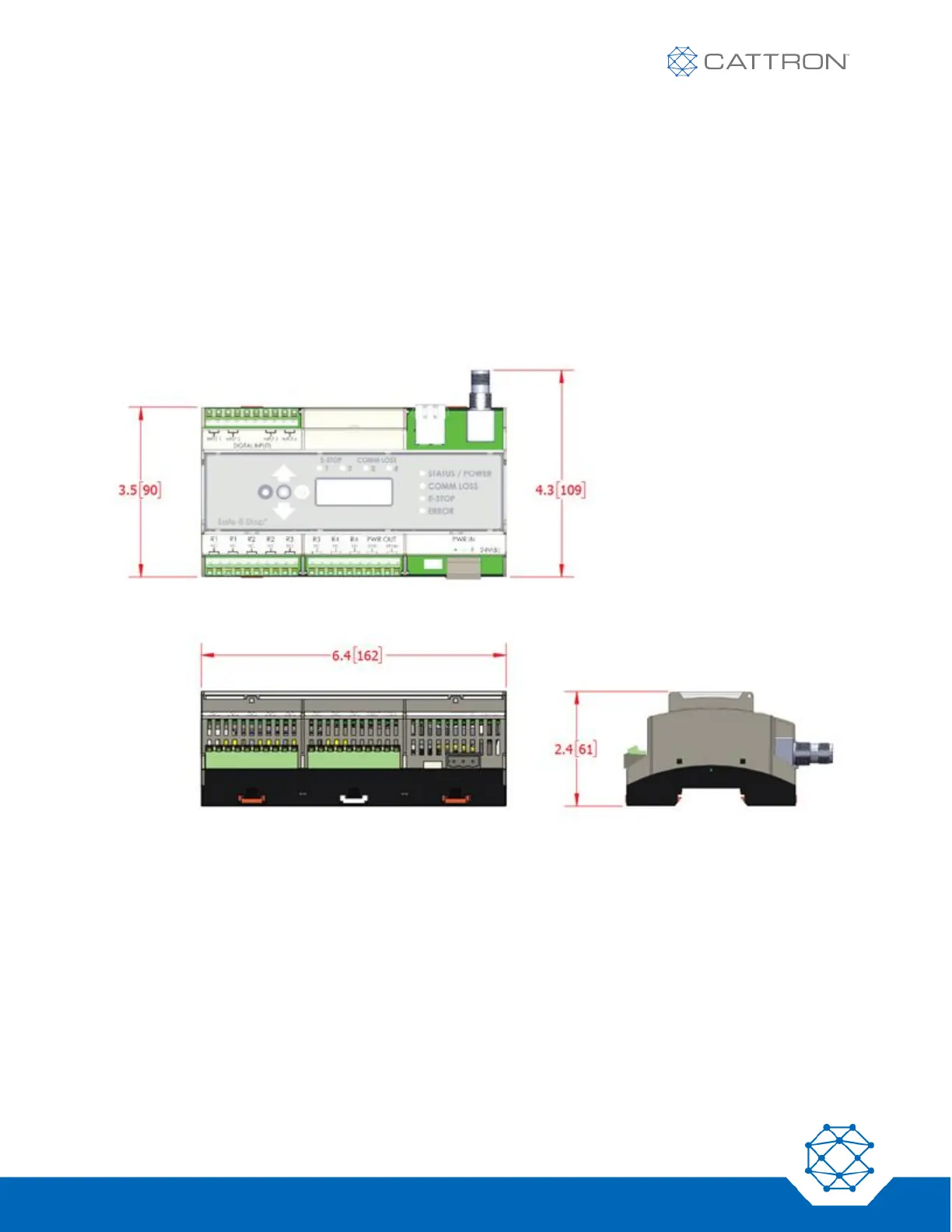

8.8.2.1 MSD Dimensions
Figure 19: MSD Dimensions
