7.3 Single Bay Charger
A single-bay charger can charge one PSD at a time. A PSD will fully charge within approximately 3 hours.

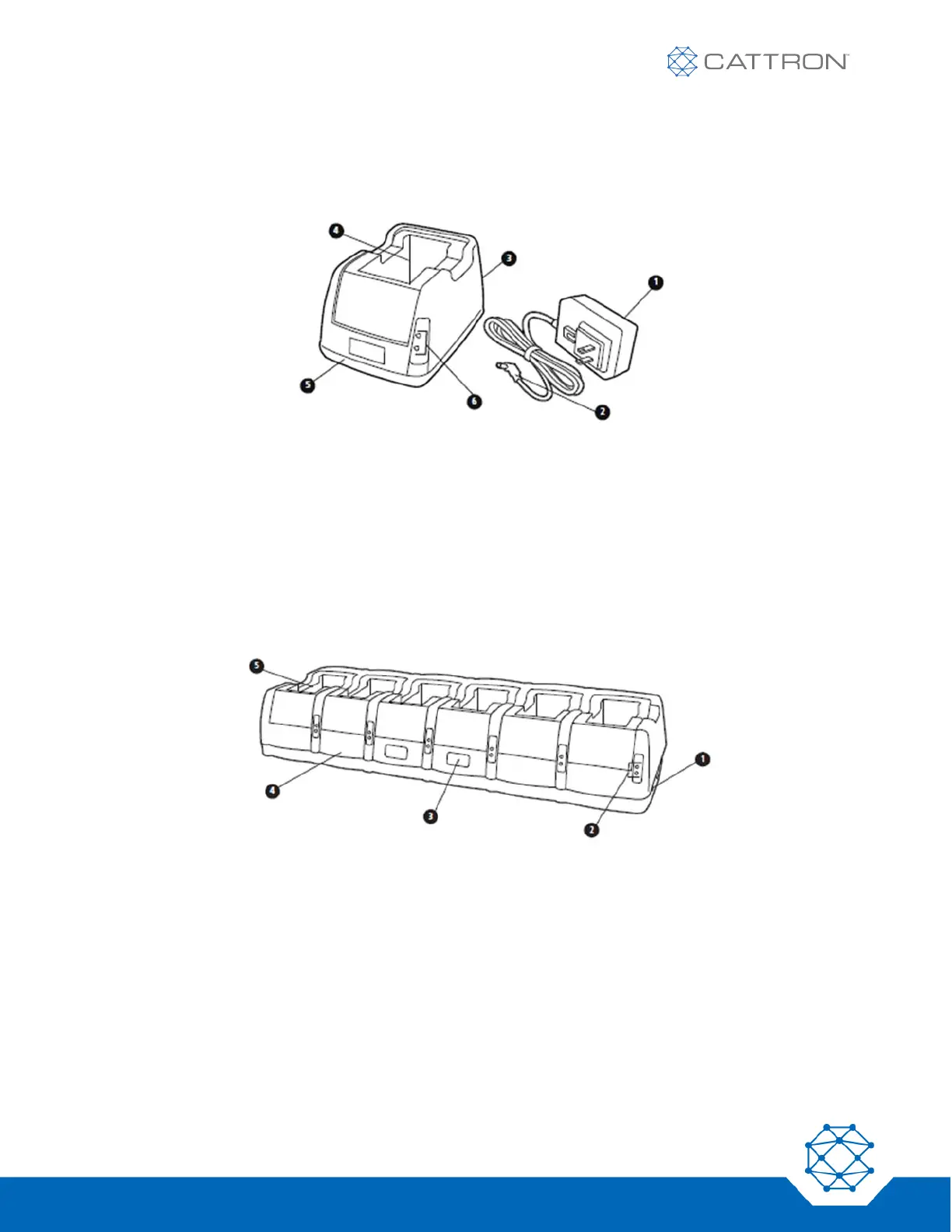

Figure 9: Single Slot Charger Features and Power Cord
1. Power supply (input 100V – 240V AC).
2. DC plug (9V DC output).
3. DC power connection – back of charger.
4. Charging slot for PSD-1-x.
5. Charger base.
6. Charge status and power-on LEDs.
7.4 Six-Bay Charger
A six-bay charger can charge up to 6 PSDs at a time. Each PSD will fully charge within approximately 3 hours.
Figure 10: Six Slot Charger Features
1. DC power connection.
2. Charge status and power-on LEDs.
3. Quick reference information for charge status LEDs.
4. Charger base.
5. Charging slots for batteries.
