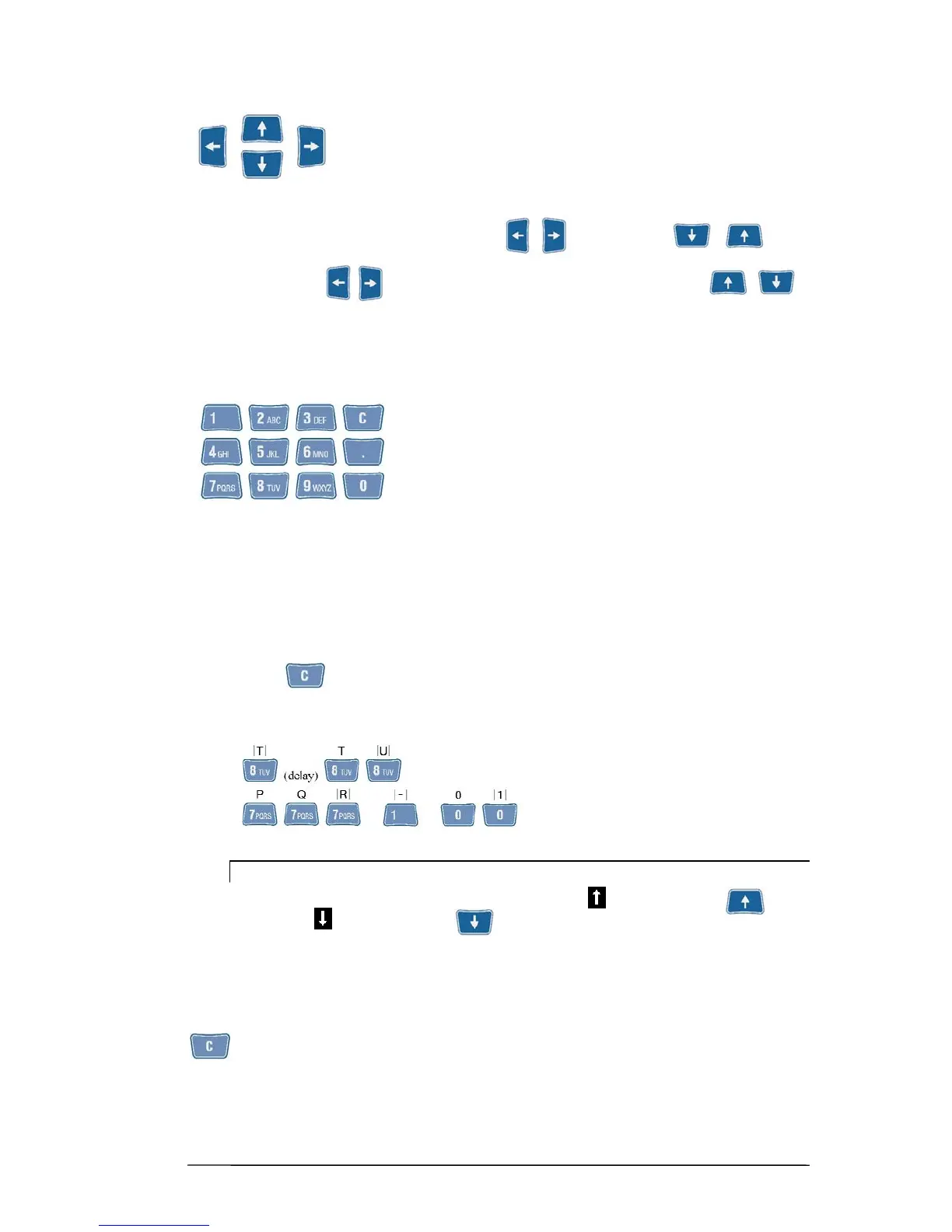

General layout 2 - 3
- arrow keys
When a graph is displayed, these keys increase or decrease respectively the
minimum or max. value of the x axis ( , , ) or the y axis ( , ).
Instead, when inputting a value for a parameter, they either shift the cursor to the
left or right ( , ) and increase or decrease the value in question ( , ).
- alphanumeric keypad
This keypad serves for entering alphanumeric characters in the fields which do not
allow just default selections. Where it is possible to enter just numbers, it acts like a
normal numeric keypad.
To enter a character, press a key repeatedly to scroll the characters assigned to it
(e.g. M N O 6) until the required one is displayed.
The cursor passes on automatically to the next position after a pause of one second,
or else after pressing another key.
With it is possible to delete the character to the left of the cursor.
For example, suppose we wish to enter the word “TUR-1” press:
N.B.
An icon indicates whether the UPPER CASE style (selectable with ) or
lower case (selectable with ) is enabled for the letters.
- image capture key
Pressing of this key has the function of capturing the image present on the display
and opening a screen which allows it to be saved (see 2-10 capture and saving of
displayed images).
