CEMB N500 - Unbalance Measurement and Calculation of the Correction

7 - 10 Balancer mode
Unbalance measurement and calculation of the correction

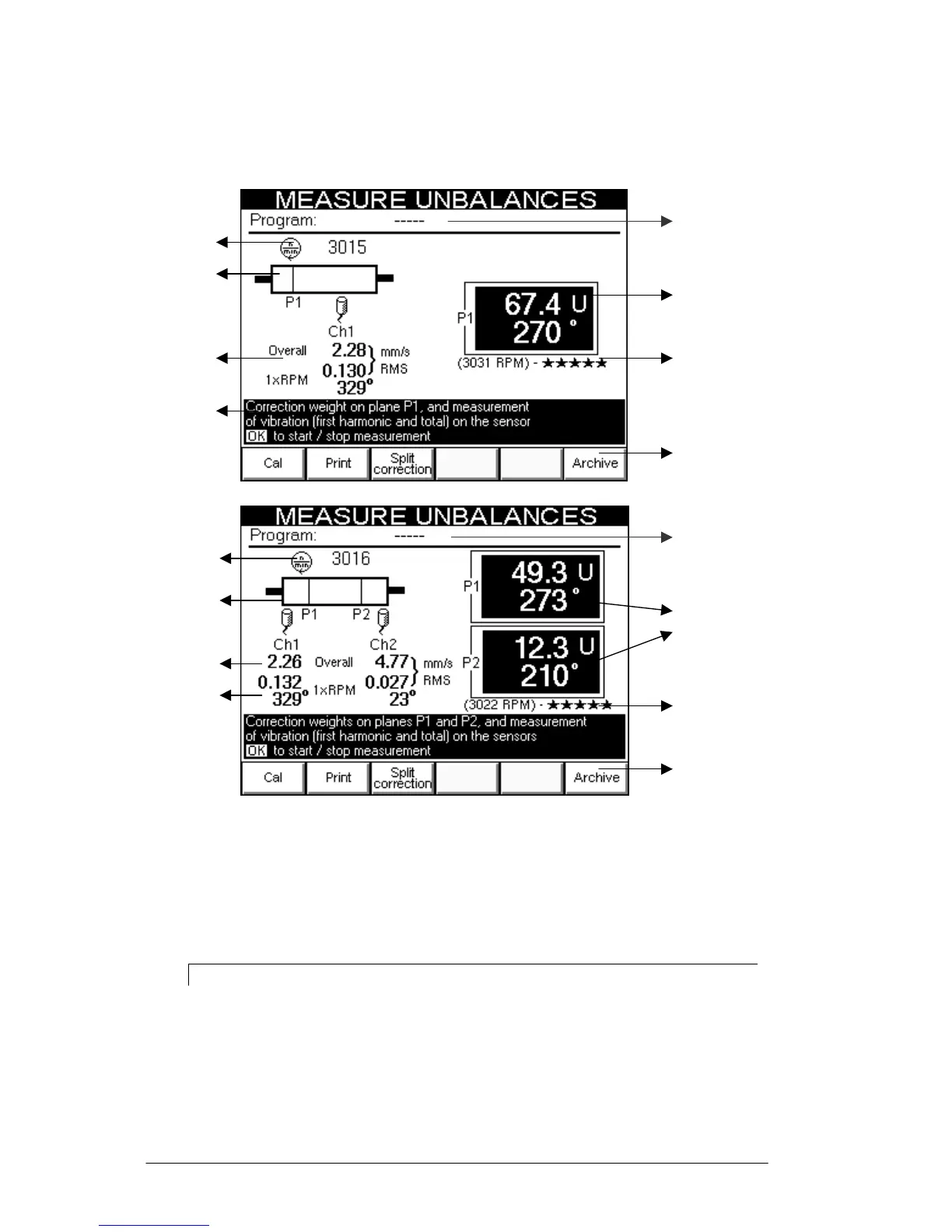

In appearance the UNBALANCE MEASUREMENT page is very similar to the calibration
page:
and the following information is given:
1 – number and name of the balancing program (when loaded from the archive),
otherwise ----
2 – current speed of rotation, in RPM
3 – layout of the position of the sensors and correction planes on the rotor
N.B.
This representation is approximate only; the sensors and correction planes can be
chosen in any position relative to each other (external sensors or sensors inside the
planes, ... ) since the calibration serves especially for determining correct
parameters for balancing in any configuration..
