7 - 6 Balancer mode
Calibration sequence
The calibration operation, necessary for assessing the unbalance of a rotor, is normally a
procedure consisting of various steps. Above all, for the most common two cases, it
consists of:
- Calibration for balancing on one plane:
1) first spin without test weight
2) second spin with test weight on the balancing plane
- Calibration for balancing on two planes:
1) first spin without test weight
2) second spin with test weight only on the first balancing plane
3) third spin with test weight only on the second balancing plane
For the two configurations
– correction on one plane with one sensor
– correction on two planes with two sensors

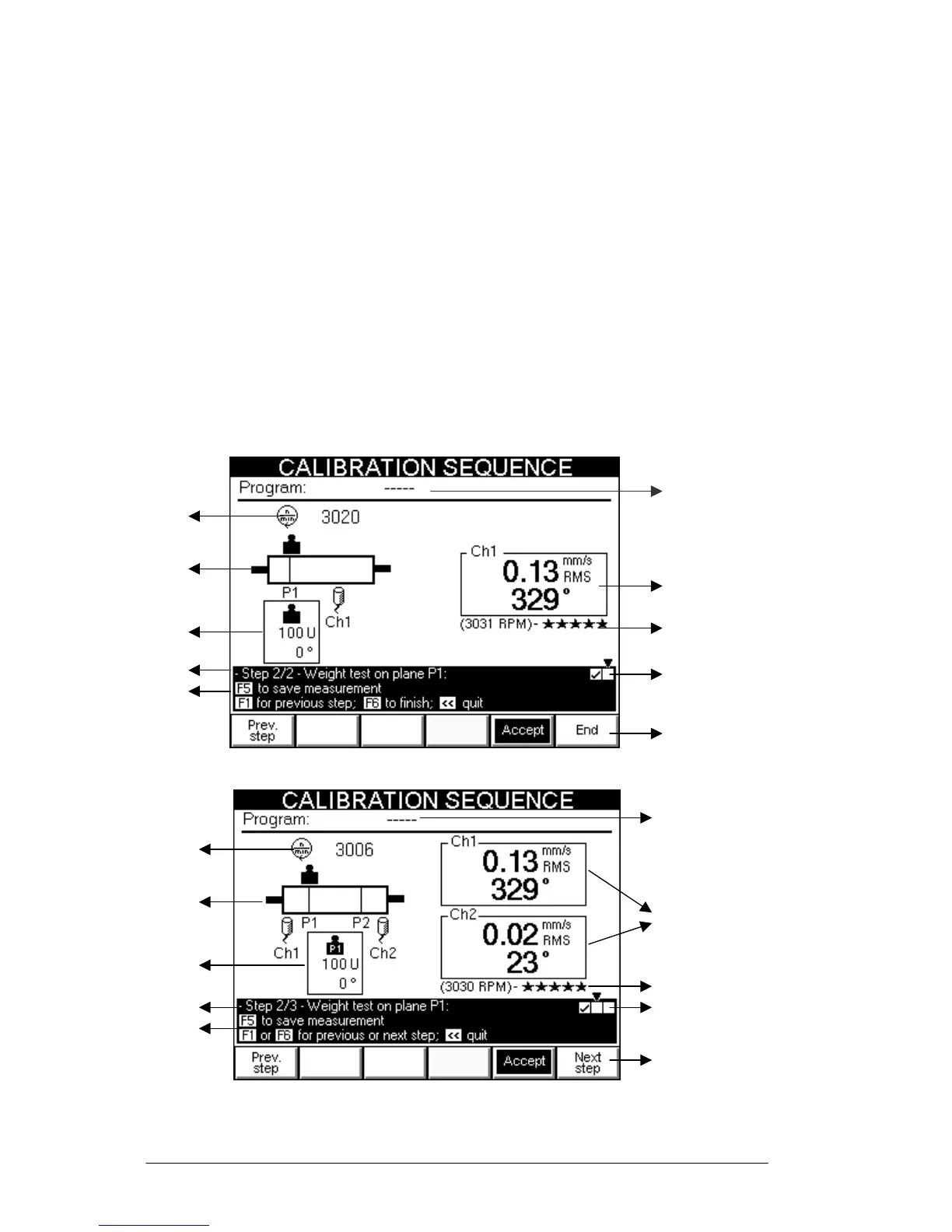

The calibration sequence screen on the N500 instrument is organized as in the figures.
2
3
4
7
9
1
5
6
8
10
2
3
4
7
9
1
5
6
8
10
