DISTRIBUTED I/OSECTION 3
Relationship Connections
One to One
The input of the local device can:
1. Actuate the output locally, or
2. Actuate the output of a remote WiZo
One to Many
The input of the local device can:
1. The input may either actuate its local
output, and the outputs of other
remote devices, or
2. Activate the remote outputs of other
devices.
Many to One
The inputs of remote WiZos can:
1. Actuate the output of the local WiZo.
Many to Many
The inputs of remote WiZos can,
1. Activate their local output, and
2. The output of remote WiZos
3. The output of more than one remote
WiZo.
The outputs of the local WiZo can
1. Be actuated by a remote WiZo
2. Be actuated by more than one remote
WiZo.

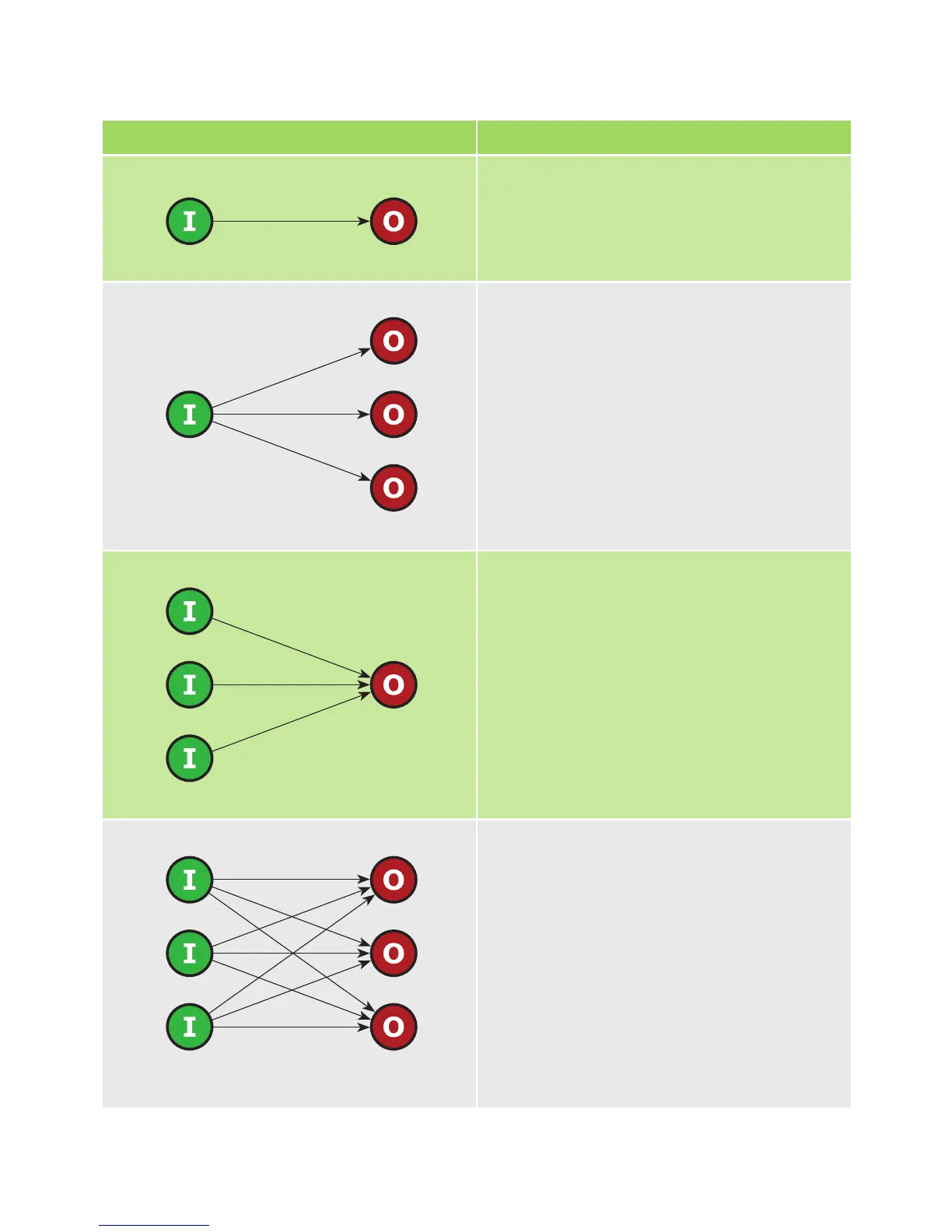

TABLE 6
Thebelowbasiccongurationsallowfortheoutputofadevice to be
actuated.
One-to-One
One-to-Many
Many-to-One
Many-to-Many
To Next Page
