Latched Mode
In latch mode, when the input is active, the output stays active even if the input goes
inactive,i.e.itlatches.Theoutputwillonlyreverttotheo/inactivestatewhenthe
input is active again. In other words, to activate the output requires a change in state
on the input and to deactivate the output requires a change in state on the input.

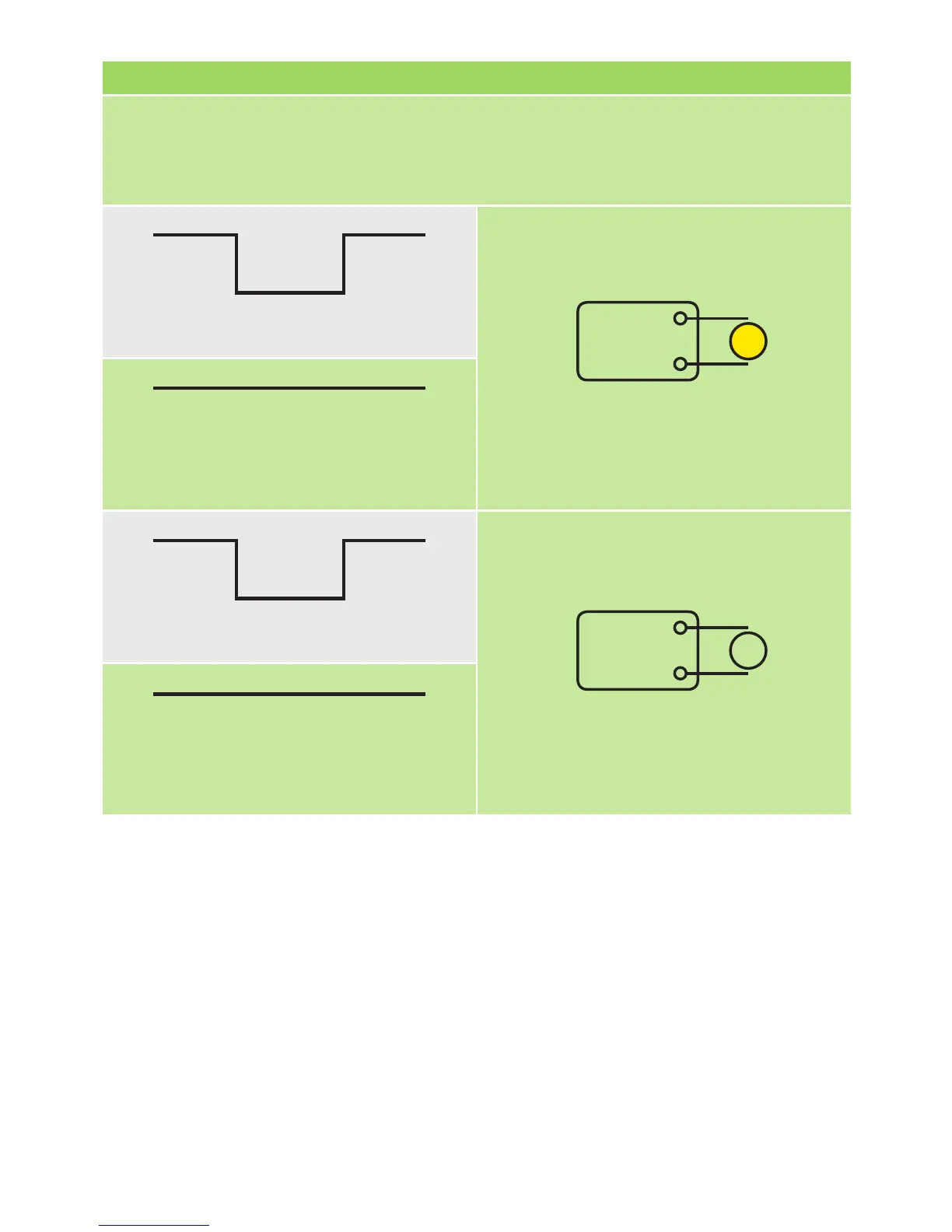

TABLE 5
ACTIVE LOW - INPUT ACTIVE
ACTIVE LOW - INPUT ACTIVE
OUTPUT STAYS ACTIVE
OUTPUT IS INACTIVE
ACTIVE HIGH - INPUT INACTIVE
ACTIVE HIGH - INPUT INACTIVE
The key feature of the device is to actuate the outputs of adjacent devices or
devices at some distance wirelessly; while still able to actuate its own output.
In other words, there is no need to run extended cabling to activate, for example, a gate
motor. The with the dependable mesh network, guarantees that the link or
connection between devices stays active and can reliably be actuated at any time.
The devices create relationships in the following ways;
• One to one
• One to many
• Many to one
• Many to many
