CESAB C3E150 - Control Valve Hydraulic System: 3 & 4 Wheels

chapter 6000
page 4
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
0,5 Bar

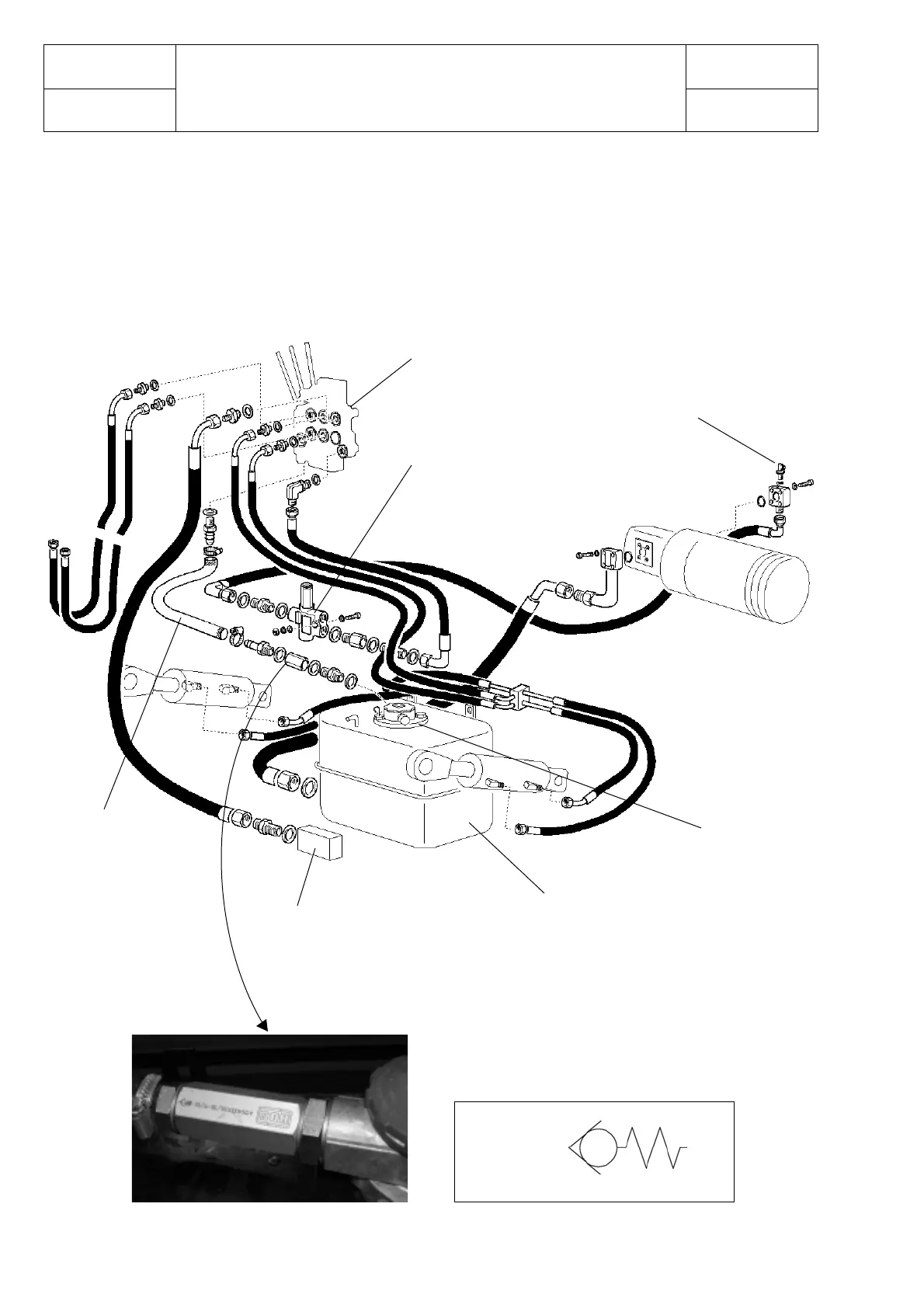

CONTROL VALVE HYDRAULIC SYSTEM
Control valve version
3 AND 4 WHEELS
Manometer connection
Lowering valve
Priority valve
Drain hose
Hydraulic oil tank
AGIP ARNICA 46
~20 litres
The correct position of the valve is shown
in the picture
tankcontrol valve
Hydraulic oil filter
Control valve
