CESAB C3E150 - Hydraulic Control Valves: Control Valve Version

chapter 6000
page 5
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
MANOMETER CONNECTION POINT FOR HYDRAULIC PRESSURE CONTROL
*: screw in to increase pressure, screw out to decrease pressure

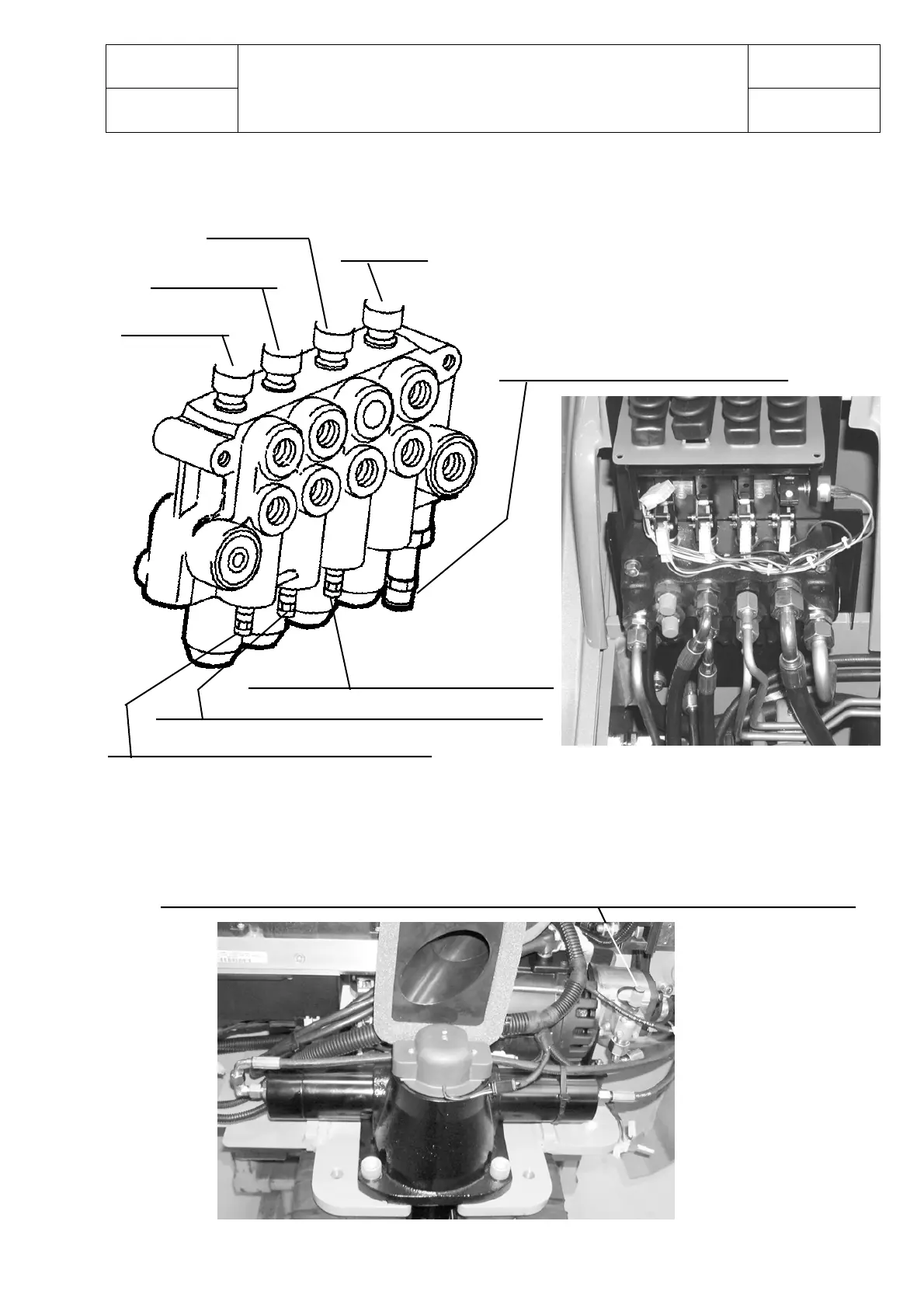

HYDRAULIC CONTROL VALVES
Control valve version
Sideshift max pressure valve *
Lifting max pressure valve *
4th way
Lifting
Sideshift
Tilting
Tilting max pressure valve *
4th way max pressure valve *
