Cessna T182 Series User Manual

MODEL
182
&
T182
SERIES
SERVICE
MANUAL
NOTE
Bushings
(4),
rollers
(3)
and
spacers
(9)
are
first
positioned
through
slots
in
flap
tracks,
then
are
secured
to
the
flap
roller
supports
(2)
with
attaching
bolts,
washers
and
nuts.
Nylon
plug
buttons
(11)
prevent
wing
flap
from
chafing
wing
trailing
edge.
Position
spacers
(9)
and
direction
of
bolts
(5)
as
required
to
provide
adequate
flap
clearance
at
wing
root,
flap
well
skin
and
aileron.
Some
lat-
eral
movement
of
flap
is
inherant
due
to
the
width
of
rollers.
This
movement
should
be
considered
when
positioning
spacers
and
direction
of
bolts.
Detail
A
6
Detail
B
Detail
C
NOTE
1.
Cover
Plate
2.
Flap
Support
Beginning
with
Serial
18268475,
cover
plates
(1)
3.
Roller
Assembly
are
attached
to
flaps
with
recessed
head
screws.
4.
Bushing
5.
Bolt
6.
Push-Pull
Rod
7.
Flap
Bracket
8.
Bolt
9. Spacer
10.
Plug
Button
11.
Nylon
Plug
Button

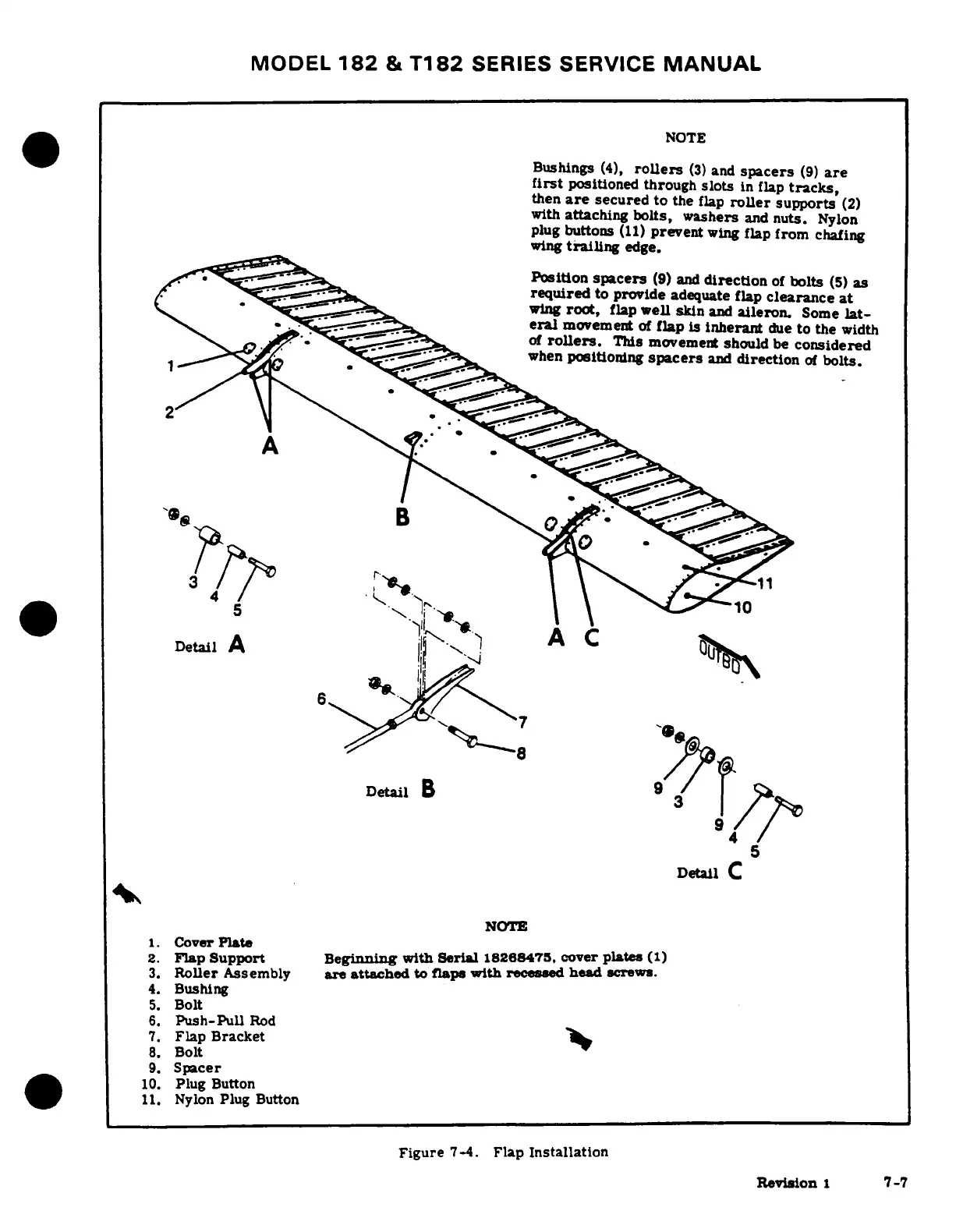

Figure
7-4.
Flap
Installation
Revision
1
7-7

Cessna T182 Series Specifications

General

Engine Type	Lycoming IO-540-AB1A5
Horsepower	230 hp
Seating Capacity	4
Service Ceiling	18, 100 feet
Takeoff Distance	1, 600 feet
Landing Distance	1, 350 ft
Type	Single-engine
Max Takeoff Weight	3, 100 lb
Wingspan	36 ft
Length	29 ft
Height	9 feet 3 inches
Fuel Capacity	92 US gal (348 L)
