Cessna T182 Series User Manual

MODEL
182
& T182
SERIES
SERVICE
MANUAL
*THRU
18267879
BEGINNING
WITH
18267880
19
19
5 *I
17
10
02
. Waste Gate Inlet Clamp 1.
1. Waste
Gate Inlet Clamp
11. Pin
2.
Limiting
Adjustment
Bracket
12.
Washers
3.
Mount Bolts
13. Control
Arm
4.
Control
Retainer
14.
Waste
Gate Control
Cable
5.
Return
Spring
Bracket
15.
Waste
Gate
Exhaust
Pipe
6. Return
Spring
Eye
Bolt
16.
Waste
Gate
Clamp
7. Return
Spring
17.
Waste
Gate
Valve
(Exhaust
Bypass)
8. Maximum
Stop
Screw
(Min
Bypass)
18.
Minimum
Stop
Screw
( Max
Bypass)
9. Waste
Gate
Valve Arm
19.
Cable
Brackets
10. Waste Gate Valve Arm Extension Lever

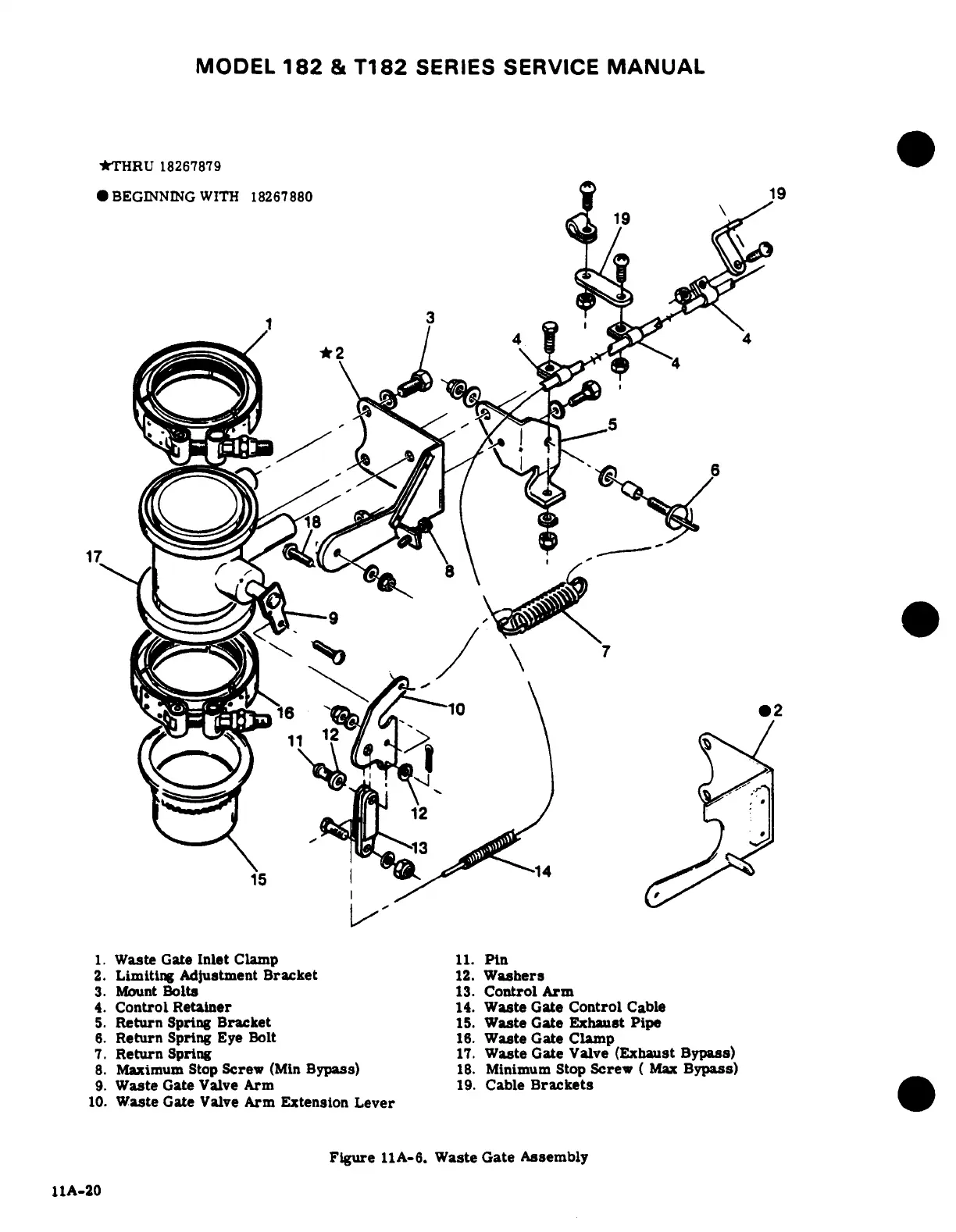

Figure
11A-6.
Waste Gate
Assembly
11A-20

Cessna T182 Series Specifications

General

Engine Type	Lycoming IO-540-AB1A5
Horsepower	230 hp
Seating Capacity	4
Service Ceiling	18, 100 feet
Takeoff Distance	1, 600 feet
Landing Distance	1, 350 ft
Type	Single-engine
Max Takeoff Weight	3, 100 lb
Wingspan	36 ft
Length	29 ft
Height	9 feet 3 inches
Fuel Capacity	92 US gal (348 L)
