Cessna T182 Series User Manual

MODEL
182
&
T182
SERIES
SERVICE
MANUAL
23456
14
V/1
15
17
10
21
20
g>X6tg1
8
Detail A
2
14 Detail B
B 18265176 & ON
F18200076
THRU F18200169
18267716
&
ON
~~~~~*
A
^i.
18267716
& ON
F18200076
THRU
18200169
1. Cabin Heat Control
8. Valve Plate Assembly
16. Cowl Deck
2. Nut 9. Valve Seat 17. Nozzle
3. Washer
10. Shim
18. Cotter Pin
4. Control Arm 11. Valve Body 19. Valve
5. Roll Pin 12. Clamp 20. Shaft
6. Clamp
Bolt 13. Hose
21. Defroster
Control
7. Spring
14. Screw
22. Duct
15. Deflector

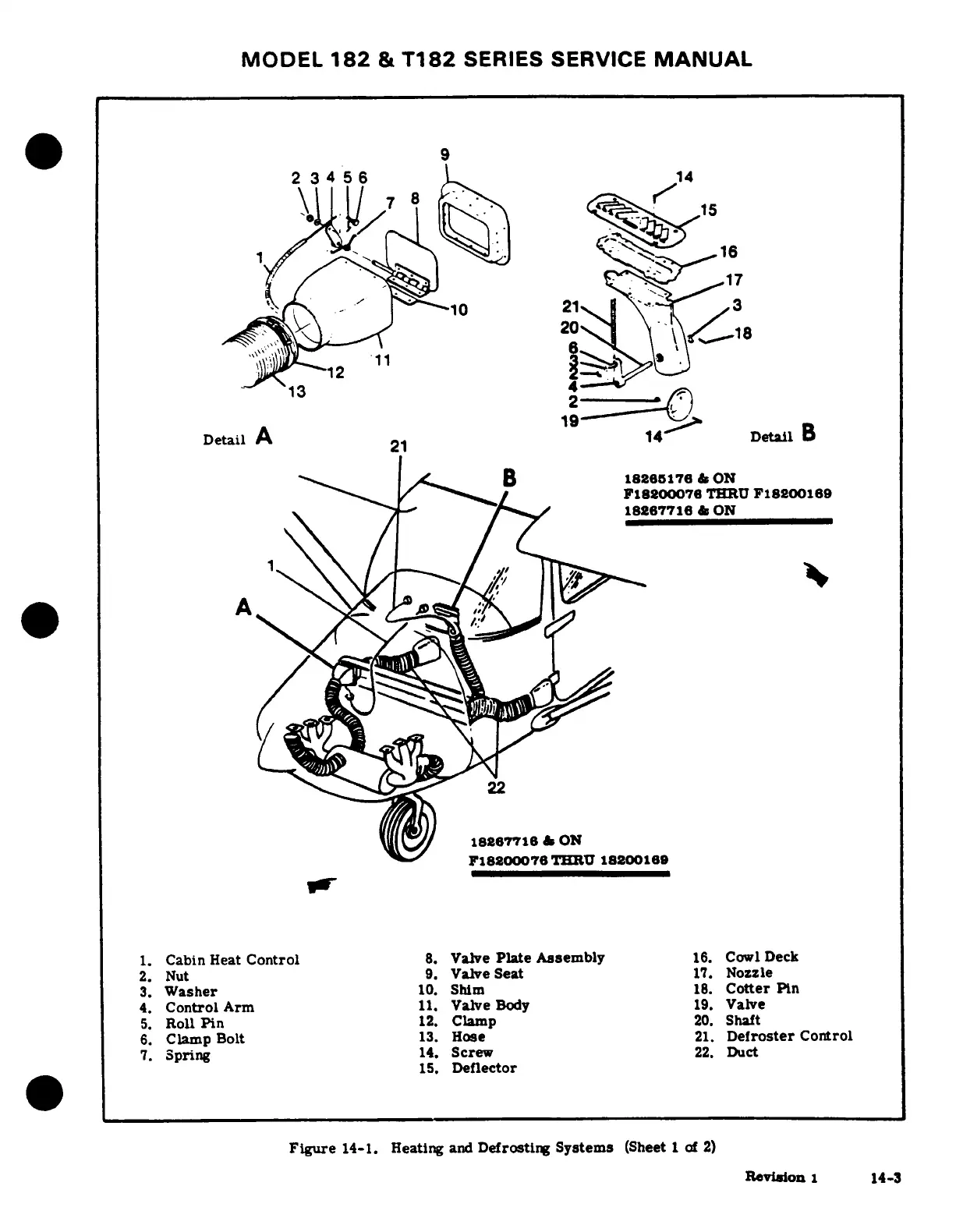

Figure 14-1. Heating
and Defrosting Systems
(Sheet 1 of 2)
Revision
1
14-3

Cessna T182 Series Specifications

General

Engine Type	Lycoming IO-540-AB1A5
Horsepower	230 hp
Seating Capacity	4
Service Ceiling	18, 100 feet
Takeoff Distance	1, 600 feet
Landing Distance	1, 350 ft
Type	Single-engine
Max Takeoff Weight	3, 100 lb
Wingspan	36 ft
Length	29 ft
Height	9 feet 3 inches
Fuel Capacity	92 US gal (348 L)
