Cessna T182 Series User Manual

MODEL
182 & T182 SERIES
SERVICE MANUAL
4
/
/
CAUTION
When inserting lamp into socket
12
-''j^^^ ' V /
>always
use
a handkerchief or
a
tissue to prevent getting finger-
'.; J. /e prints on the lamp.
*~r^- ^y^^~ ~~NOTE
Detail A
Fingerprints
on
lamp may short-
en the life of the lamp.
1. Lens
10. Flasher
2. Gasket 11. Ground Wire
3. Lamp
12. Fin Assembly
4.
Screw
13.
Housing-Plug
5. Baffle
14. Housing-Cap
6. Clamp
15.
Ground Wire
7.
Socket
16. Resistor
8. Nutplate
17. Ground Wire
9. Tip Assembly 18. Wire to Flasher

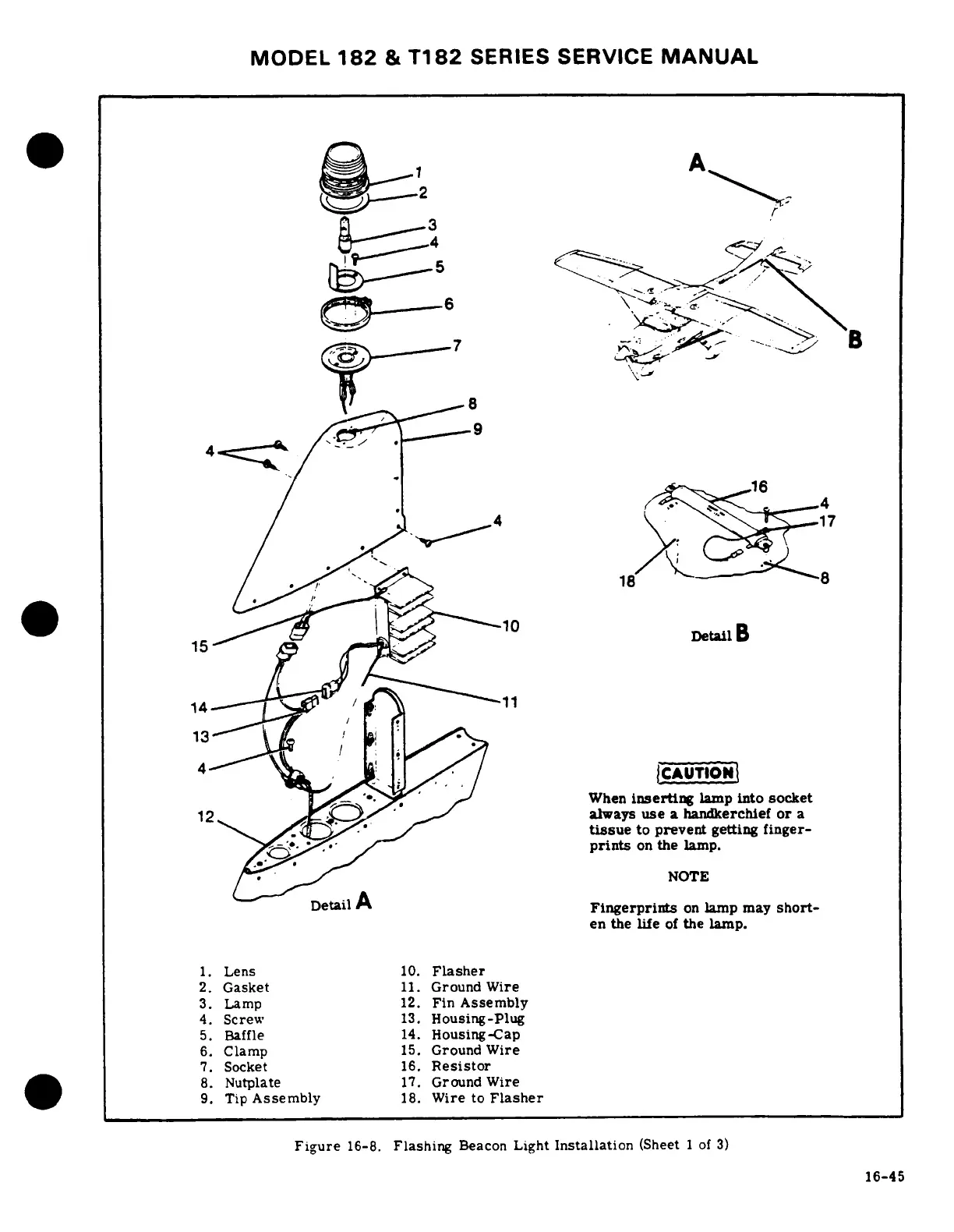

Figure 16-8. Flashing Beacon Light Installation (Sheet 1 of 3)
16-45

Cessna T182 Series Specifications

General

Engine Type	Lycoming IO-540-AB1A5
Horsepower	230 hp
Seating Capacity	4
Service Ceiling	18, 100 feet
Takeoff Distance	1, 600 feet
Landing Distance	1, 350 ft
Type	Single-engine
Max Takeoff Weight	3, 100 lb
Wingspan	36 ft
Length	29 ft
Height	9 feet 3 inches
Fuel Capacity	92 US gal (348 L)
