Challenge EH-3D - Using Auto-Trip Backgauge

4.0 Installation Guide
10
Figure 3
Figure 4
4.2.2 Using Auto-Trip Backgauge:

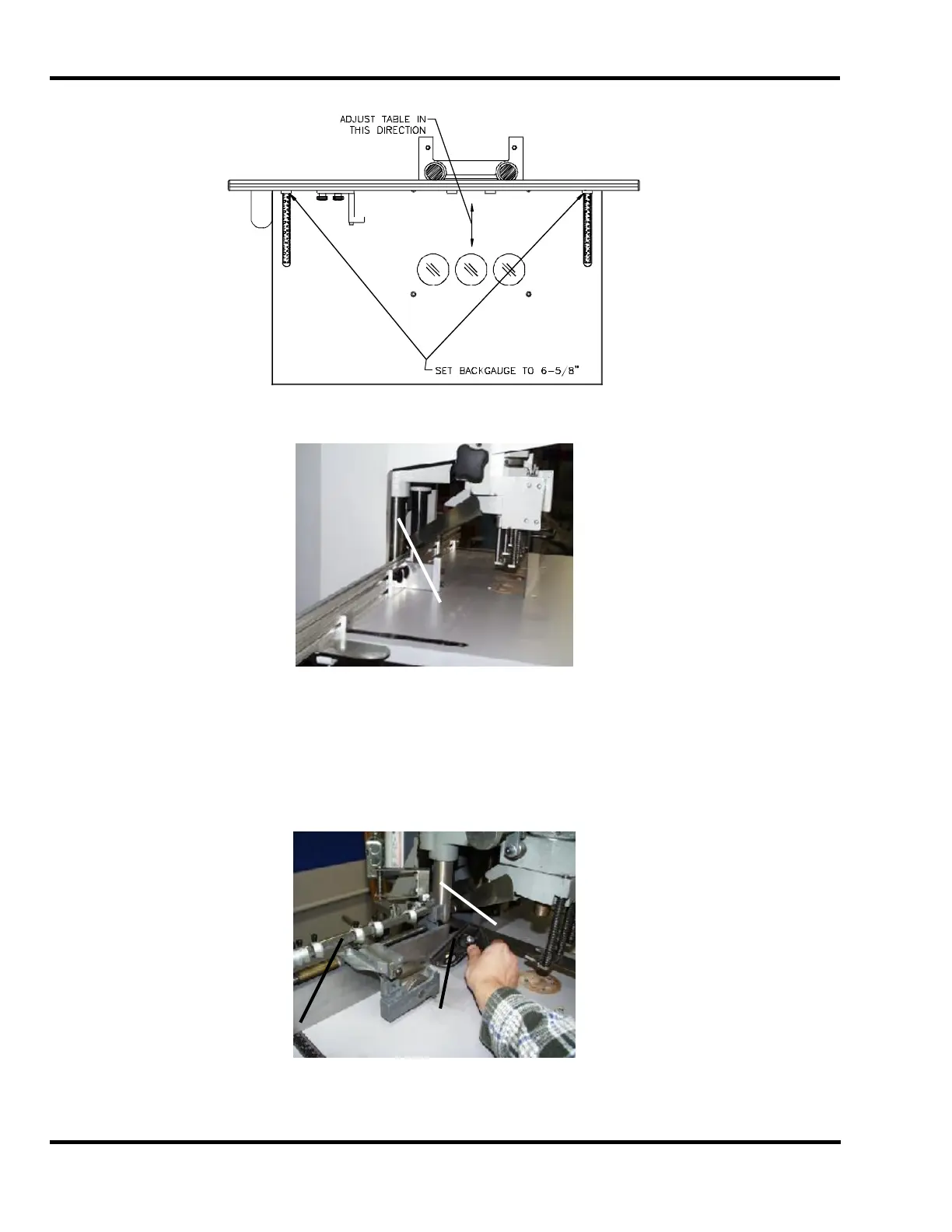

Attach the backgauge assembly to the table and set both sides to the 6” position (as shown in Figure
5). Next, position the table so that the front surface of the backgauge is 1-7/8” from the front of each
pull down shaft (see Figure 5). Now tighten the front two table-mounting screws. Then move the
backgauge forward and tighten the rear two screws.
Figure 5
Pull Down Shaft
Ruler set to 1-7/8”
Pull Down
Shaft
Backgauge
set to 6”
