Challenge EH-3D - Main Assembly - Top View - A-5846-10 Sht. 4 of 5 Rev. C

9.0 Parts Lists & Schematics
39

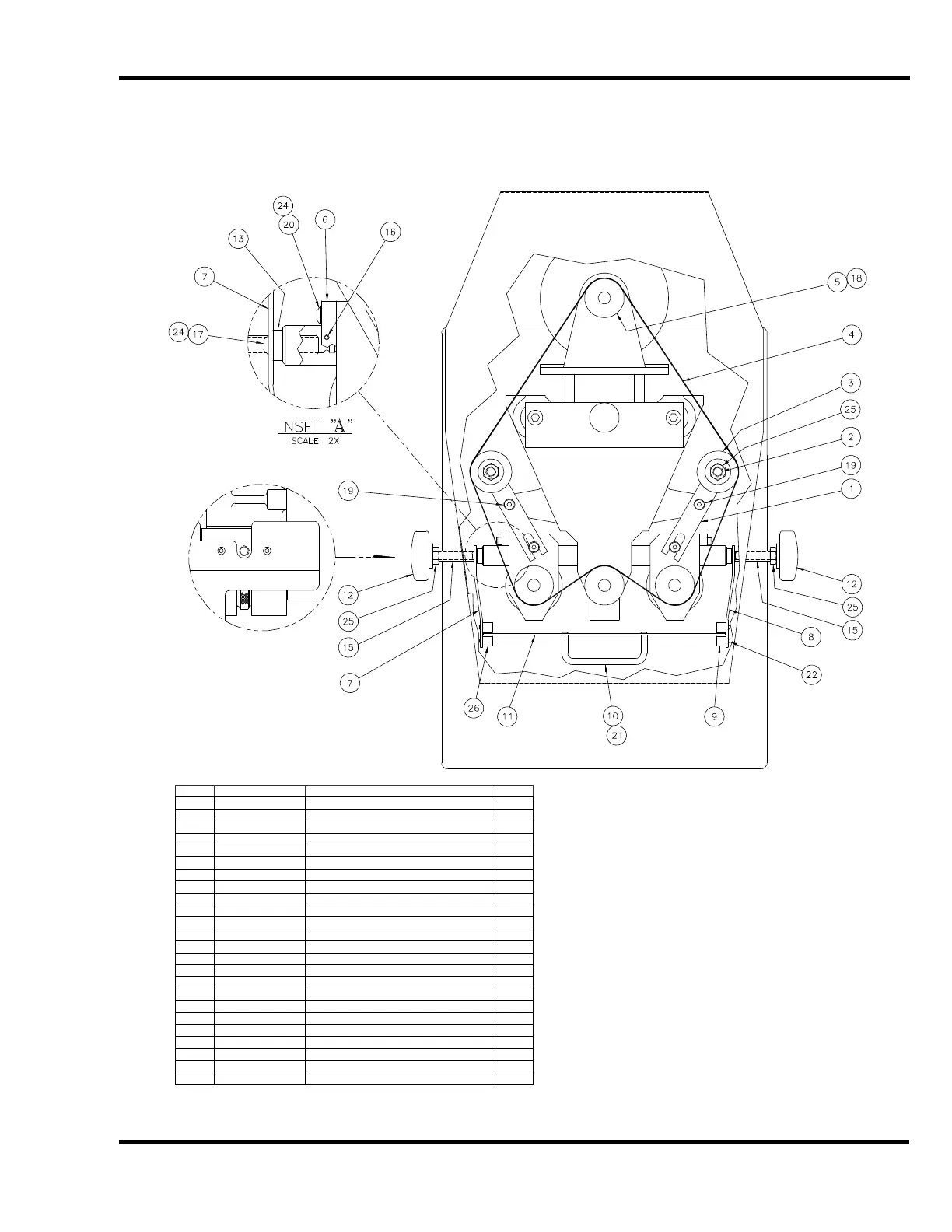

9.7 Main Assembly – Top View – A-5846-10 Sh’t. 4 of 5 Rev. C
S/N’s 14xxxx and Up (ECN 13N070)
NO.
PART NO.
DESCRIPTION OF ACCESSORIES
QTY
1
5861-1
ARM - IDLER PULLEY
2
2
5889
STUD - IDLER PULLEY
2
3
A-5887-1
PULLEY ASM. - IDLER
2
4
S-1661-1
BELT - FLAT
1
5
S-694-4
PULLEY - MOTOR
1
6
5852
BLOCK - ADJUSTING SCREW
2
7
48001-3
BRACKET - SHIELD, L.H.
1
8
48001-2
BRACKET - SHIELD, R.H.
1
9
48002-1
GUIDE - SHIELD
2
10
13940
HANDLE
1
11
48003-1
SHIELD
1
12
5710
ADJ. SCREW KNOB
2
13
5851
ADJ. SCREW PLATE
2
15
5711
ADJ. SCREW
2
16
H-21S-125-1000
PIN - 1/8 X 1" ROLL
2
17
H-6910-406
SCREW - 1/4-20 X 3/4 BUT. HD. CAP
6
18
H-6938-408
SCREW - 1/4-20 X 1/2 SOC. SET
1
19
H-5254-604
SCREW - 3/8 X 1/2 SOC. SHOULDER
2
20
H-6910-406
SCREW - 1/4-20 X 3/4 BUT. HD.
4
21
H-6910-83202
#8-32 X 1/4 BUTTON HD CAP SCREW
2
22
S-1088-3
#6 X 3/8 PN HD S.M. SCREW
8
24
H-7327-8
WASHER - 1/4 MEDIUM LOCK
8
25
H-6424-8
NUT - 1/2-13 HEX JAM
4
26
48002-2
LEFT GUIDE - SHIELD
2
