INSTALLATION
11 cm
3 cm
TOP VIEW OF GATE
The distance between
the rack and the gate
should be 2.4 cm.
Gate
Rack
Mounting Plate
Mounting Plate
Rack
Figure 5
Cables
Figure 6

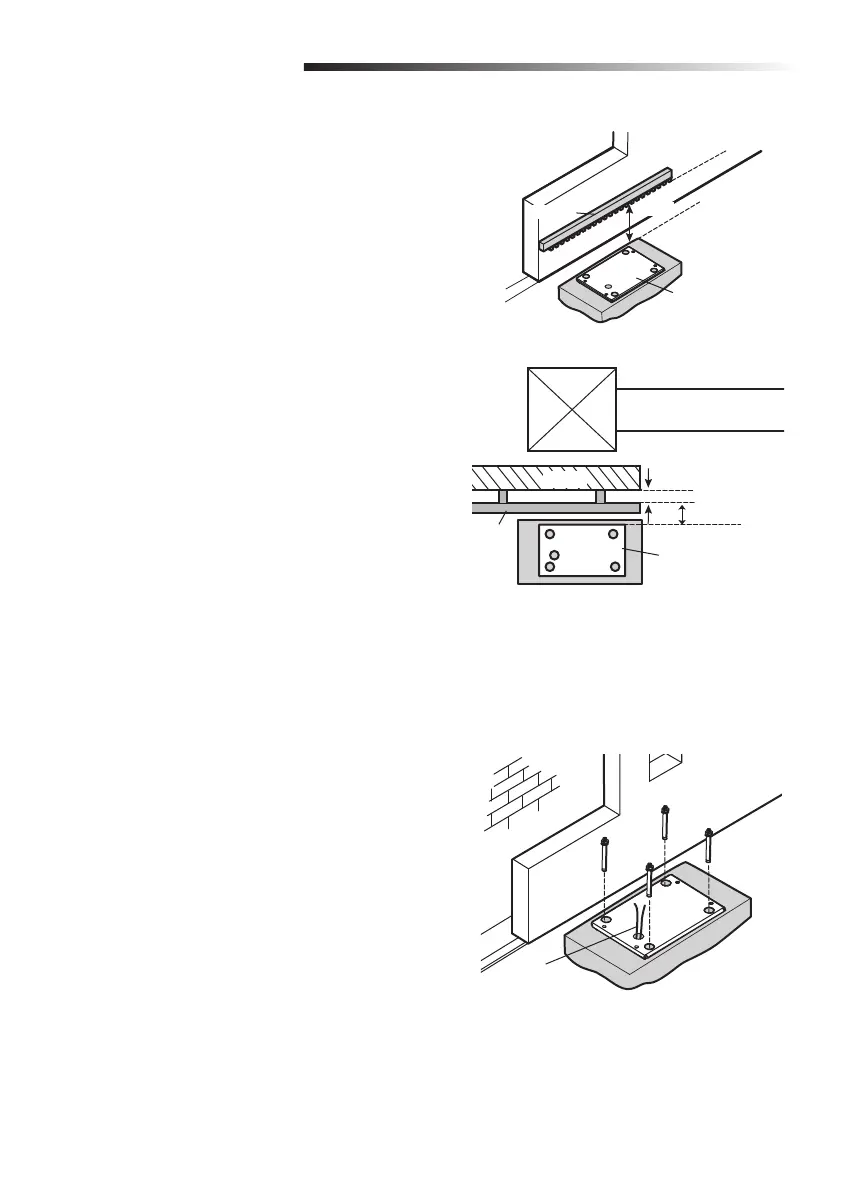

8. Position the mounting plate relative to the gate
(Figure 5).
9. Run all cables through the knockout (Figure 6).
10. Mark the mounting hole locations, drill with
a masonry bit. Screw the mounting plate into
place with provided anchoring hardware
(Figure 6).
