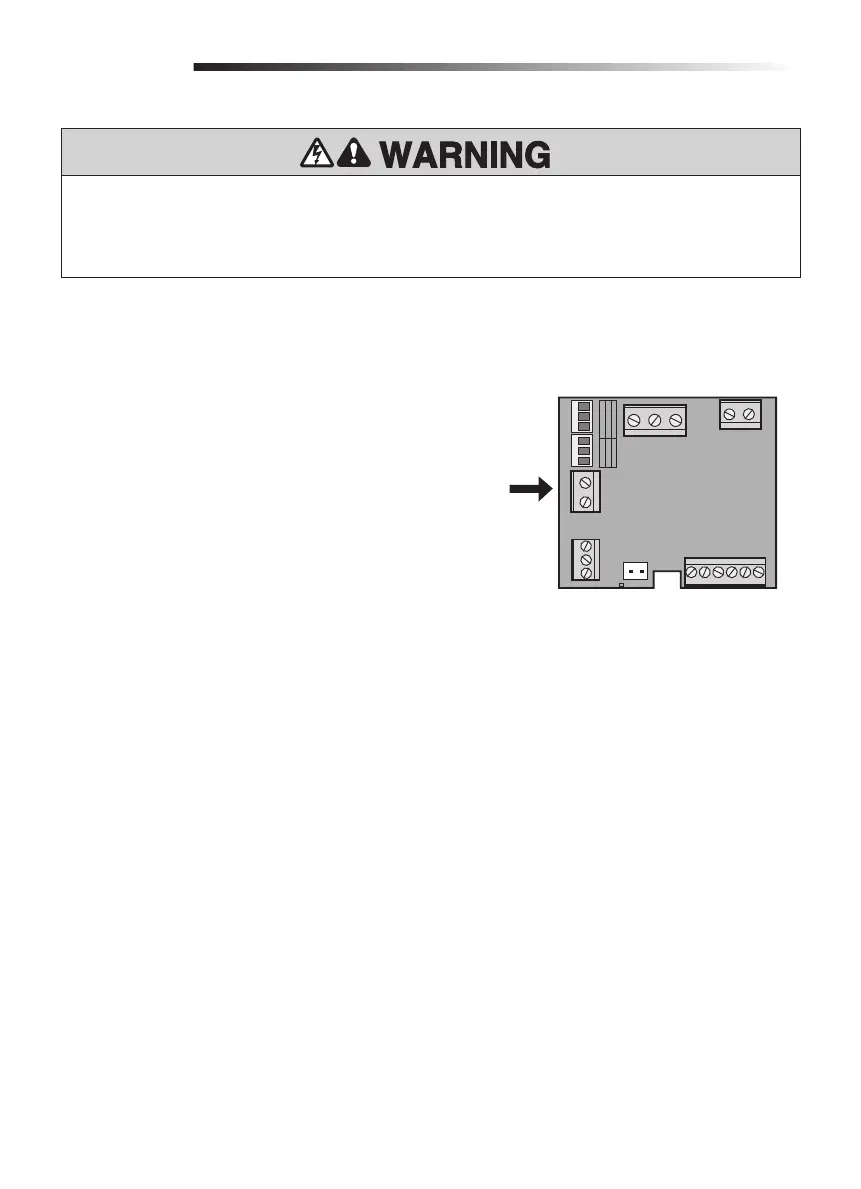

Power Wiring
The operator can be wired for either 110-127 Vac or 220-240 Vac.
1. Turn off the AC power from the main power
source circuit breaker.
2. Insert the AC power wires through the wire
input hole closest to the motor.
3. Connect the “hot” wire to the L terminal on the
power board.
4. Connect the neutral wire to the N terminal on
the power board.
5. Tighten the watertight connector nut.
6. Restore power to the operator.
WIRING
To reduce the risk of SEVERE INJURY or DEATH:
• DO NOT TOUCH the unused connections on J2 or J3 as they are energized.
• Replace cover before reconnecting or connecting power.
J3 J2
CN1
TR IN
TR OUT
CN3
110-127Vac 220-240Vac
J2
J3
OFF
ON
ON
OFF
DC
+
CN4
BAT
CHCTR VBAT
CN2
CN7
PE
POWER LINE
NL
CN6
N
127V
230V
POWER BOARD
Power In
To Next Page
