Chamberlain SL600 - Operator Installation and Clutch; Limit Switch Bracket Installation

11
INSTALLATION

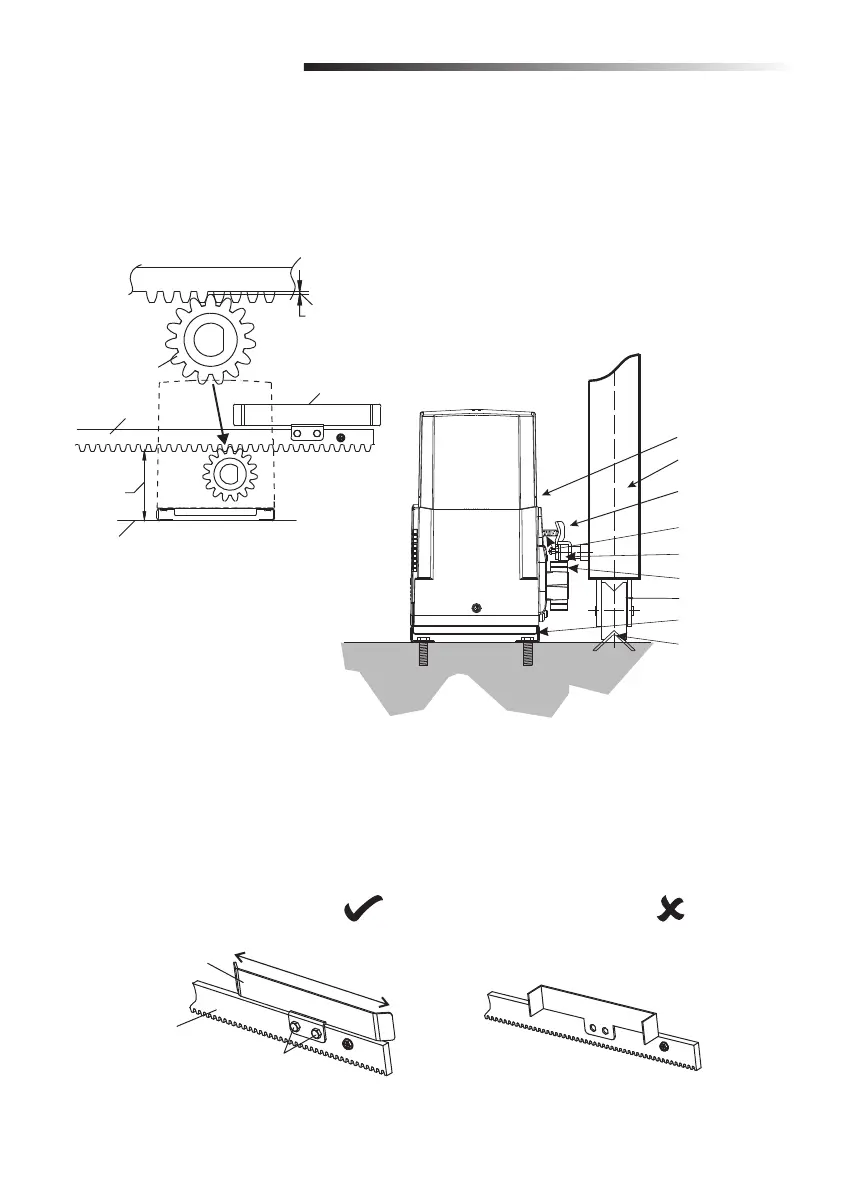

Install the Operator
Make sure the sliding gate can be moved smoothly before installation. There must be a clearance
between rack and gear as shown, or the gate movement may be effected.
Limit Switch Bracket Installation
Attach the limit switch bracket to the rack with adjusting screws. If the limit switch bracket is installed
incorrectly, the gate cannot learn the travel limit.
110 mm
2-3 mm
Operator
Gate
Limit switch
bracket
Limit switch
spring
Rack
Gear
Wheel
Mounting plate
Track
Rack
Gear
Ground level
Limit switch
bracket
Limit switch bracket
Adjust the limit
switch bracket
Adjusting screw
CORRECT INSTALLATION
Rack
INCORRECT INSTALLATION
