13
You can attach the header bracketeither to the
wall above the garage door, or to the ceiling.
Follow the instructionswhich will workbest for
your particular requirements.Do not install the
header bracket over drywall. If installing into
masonry, use concrete anchors (not provided).
HARDWARE
H11 (2)
Lag Screw
5/16"-9x1-5/8"

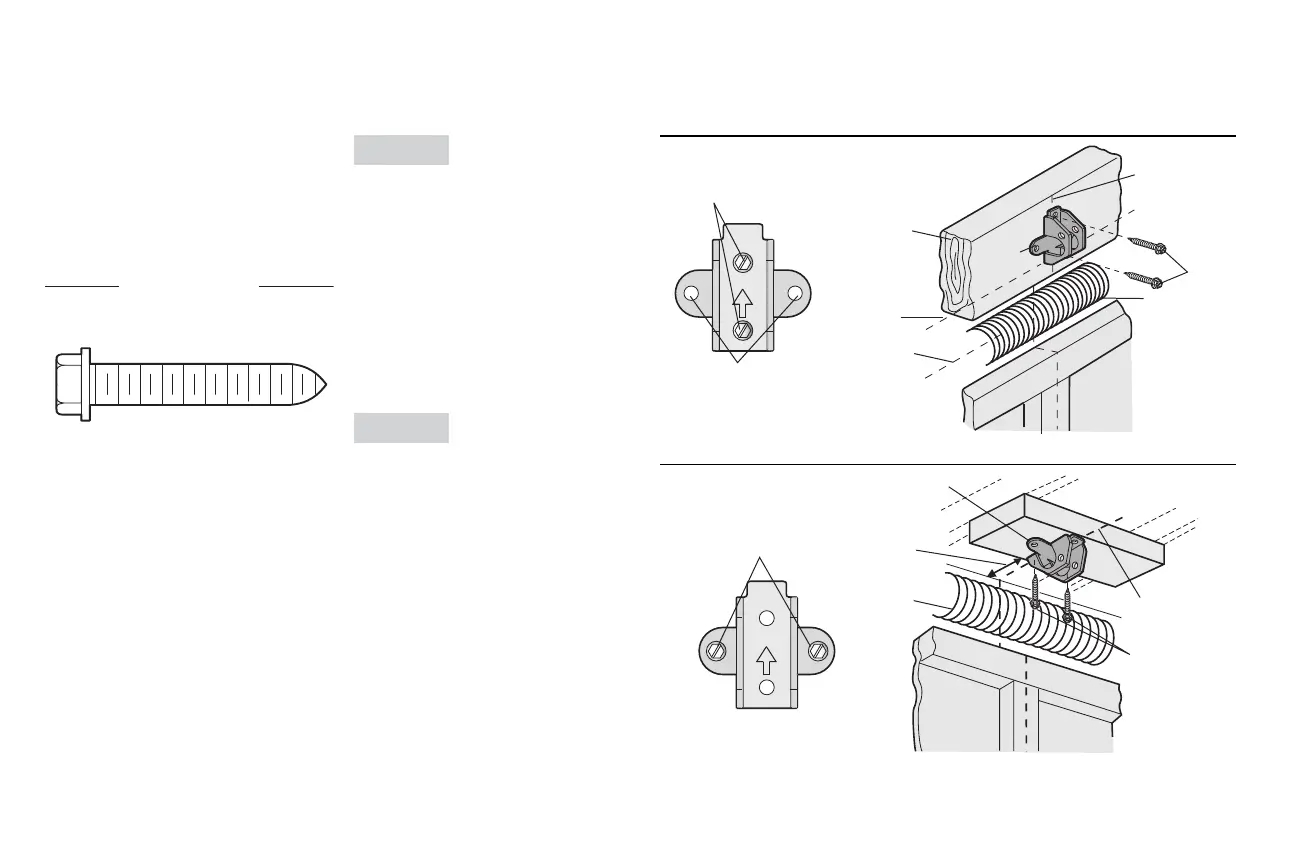

OPTION A WALL INSTALLATION
2.1A Center the bracketon the vertical
centerline with the bottom edge of the
bracketon the horizontal line as shown
(with the arrow pointing toward the
ceiling).
2.2A Markthe vertical setofbracket holes (do
not use the holes designated for ceiling
mount).Drill 3/16" pilot holes and fasten
the bracketsecurely to a structural
supportwith the hardware provided
(H11).
OPTION B CEILING INSTALLATION
2.1B Extend the vertical centerline onto the
ceiling as shown.
2.2B Center the bracketon the vertical mark,
no more than 6" (15 cm) from the wall.
Make sure the arrow is pointing away
from the wall. The bracketcan be
mounted flush against the ceiling when
clearance isminimal.
2.3B Markthe side holes. Drill 3/16" pilotholes
and fasten bracketsecurely to a structural
supportwith the hardware
provided (H11).
UP
Wall Mount
Optional
Mounting
Holes
H11
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door
Travel
Horizontal
Line
UP
(Header Wall)
Ceiling Mounting Holes
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
H11
Installation
2 Install the Header Bracket
