29
Withouta properlyinstalled safetyreversal
system, persons (particularlysmall children)
could be SERIOUSLY INJURED or K LLED by a
closing garage door.
• Incorrect adjustment of garage door travel
limits will interfere with proper operation of
safetyreversal system.
• After ANY adjustments are made, the safety
reversal systemMUST be tested. Door
MUST reverse on contactwith 1-1/2" (3.8
cm) high object (or 2x4 laid flat) on floor.
To preventdamage to vehicles, be sure fully
open door provides adequate clearance.
To watch a short instructional video on how to
program the travel on your newgarage door
opener use your smartphone to read the QR Code
below:

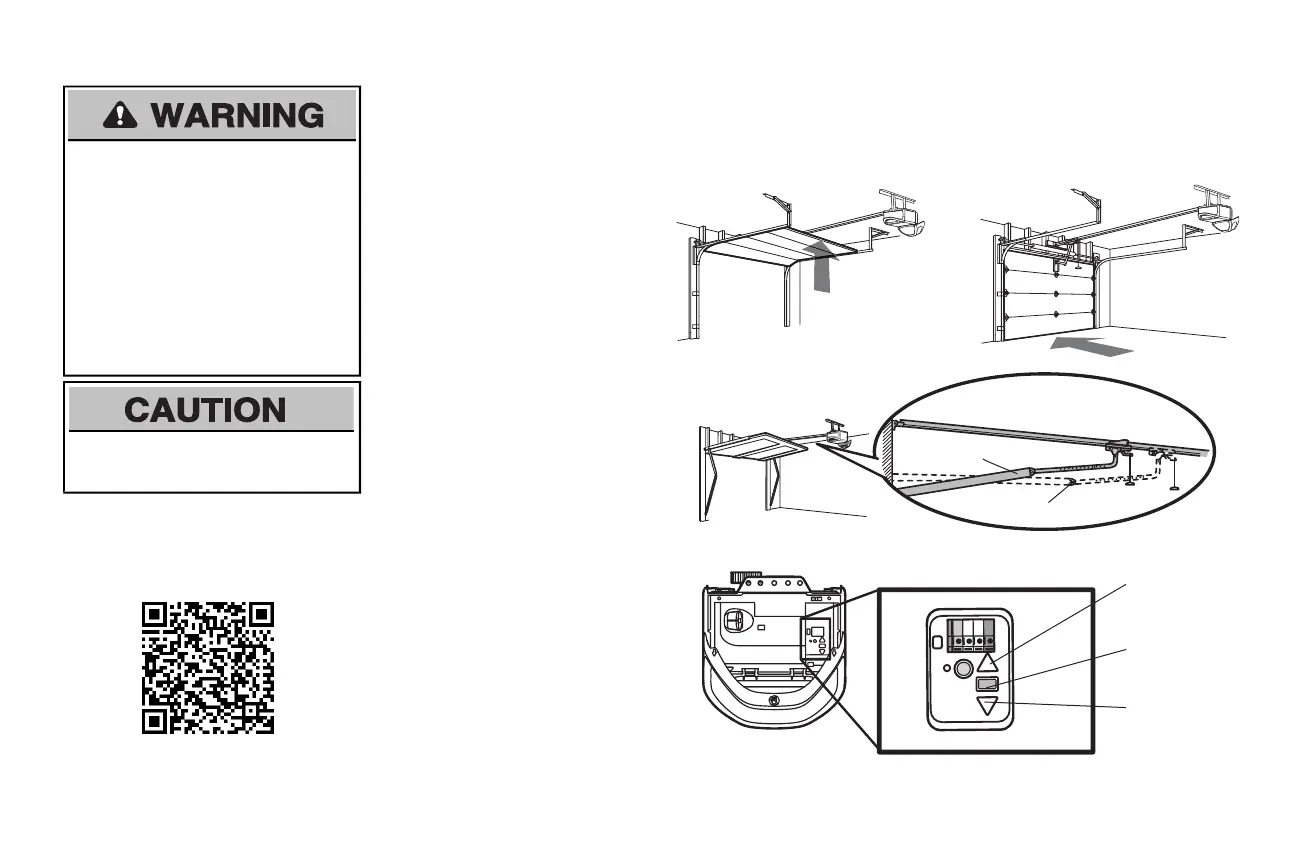

INTRODUCTION
Your garage door opener is designed with
electronic controls to make setup and
adjustments easy.The adjustments allow you to
program where the door will stop in the open
(UP) and close (DOWN) position. The
electronic controls sense the amountofforce
required to open and close the door. The force
is adjusted automaticallywhen you program
the travel.
NOTE: If anything interferes with the door’s
upward travel it will stop. If anything interferes
with the door’s downward travel, it will reverse.
ONE-PIECE DOORS ONLY
When setting the UP travel for a one-piece
door ensure that the door does notslant
backwards when fully open (UP). Ifthe door is
slanted backwards this will cause unnecessary
bucking and/or jerking when the door is
opening or closing.
PROGRAMMING BUTTONS
The programming buttonsare located on the
leftside panel of the garage door opener and
are used to program the travel.
UP Button
Adjustment
Button
DOWN Button
PROGRAMMING BUTTONS
Adjustments
