14

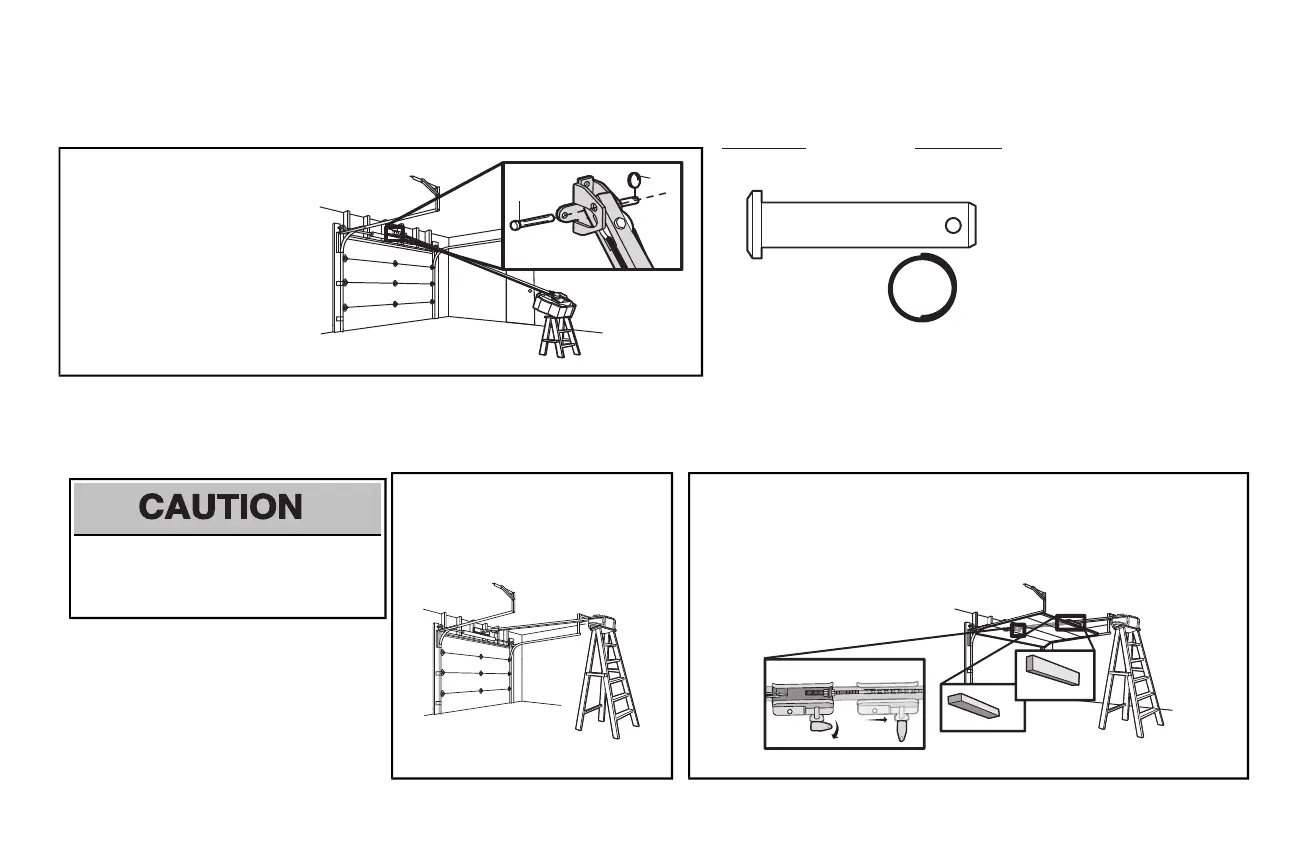

3.1 Align the rail with the header
bracket. Insert the clevis pin
(H12) through the holes in the
header bracket and rail.Secure
with the ring fastener (H19).
NOTE: Use the packing material as a
protective base for the garage door
opener.
HARDWARE
H12
Clevis Pin 5/16"x1-1/2"
H19
Ring Fastener
4 Position the garage door opener
To preventdamage to garage door, rest garage
door opener rail on 2x4 placed on top section of
door.
4.1 Remove the packing material and liftthe
garage door opener onto a ladder.
NOTE: A 2x4 is ideal for setting the distance
between the rail and the door. If the ladder is
not tall enough you will need help at this point.
4.2 Fullyopen the door and place a 2x4 (laid flat) under the rail.For one-piece doors without
tracks, lay the 2x4 on it'sside.
NOTE: If the door hits the trolley when it is raised, pull the trolley release arm down to
disconnectthe inner and outer trolley. Slide the outer trolley toward the garage door opener.
The trolley can remain disconnected until instructed.
Connected Disconnected
One-piece
door
without
tracks
All other
door types
Installation
3 Attach the rail to the header bracket
