To avoid possible SERIOUS NJURY from a
falling garage door opener, fasten it SECURELY to
structural supportsof the garage.Concrete anchors MUST
be used if installing ANY brackets into masonry.
HARDWARE
H10 (2)
Lag Screw 5/16"- 18x1-7/8"
H15 (2)
Hex Bolt 5/16"- 18x7/8"
H21 (2)
Nut 5/16"-18
H20 (2)
Lock Washer
5/16"-18

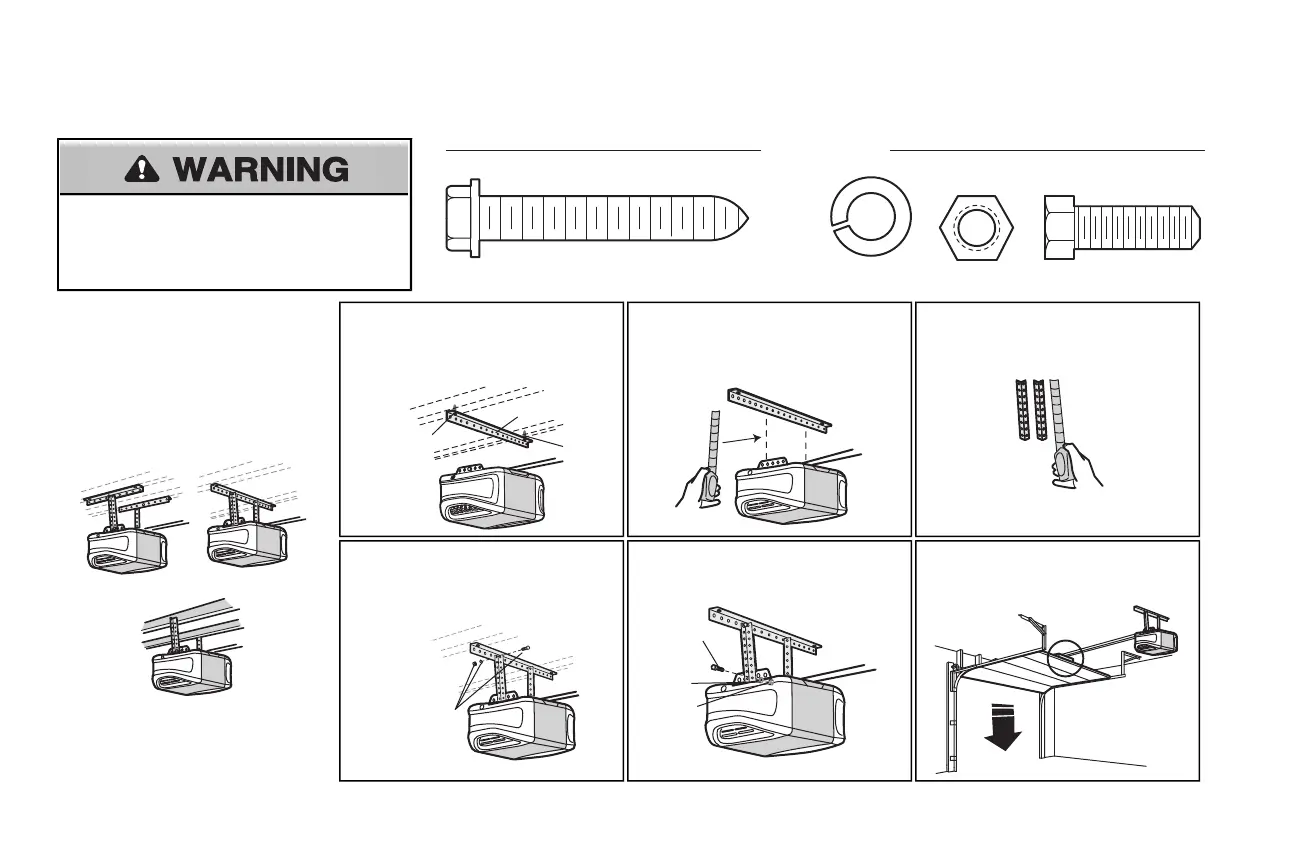

Hanging the garage door opener will vary
depending on your garage. Below are three
example installations. Your installation may be
different. For ALL installations the garage door
opener MUSTbe connected to structural
supports. The instructions illustrate one of the
examples below.
Finished Ceiling
Unfinished Ceiling
5.1 On finished ceilings, use the lag screws
(H10) to attach a support bracket(not
provided) to the structural supports
before installing the garage door opener.
Finished
Ceiling
H10
(not provided)
H10
5.2 Make sure the garage door opener is
aligned with the header bracket.Measure
the distance from each side of the garage
door opener to the support bracket.
5.3 Cut both pieces ofthe hanging bracket
(notprovided) to required lengths.
5.4 Attach the end of each hanging bracketto
the support bracketwith appropriate
hardware (notprovided).
(not provided)
5.5 Attach the garage door opener to the
hanging brackets with the bolts (H21),
lockwashers(H15) and nuts (H20).
H15
H20
H21
5.6 Remove the 2x4 and manuallyclose the
door.If the door hitsthe rail, raise the
header bracket.
Installation
5 Hang the garage door opener
