Chamberlain WD962KPEV User Manual

4

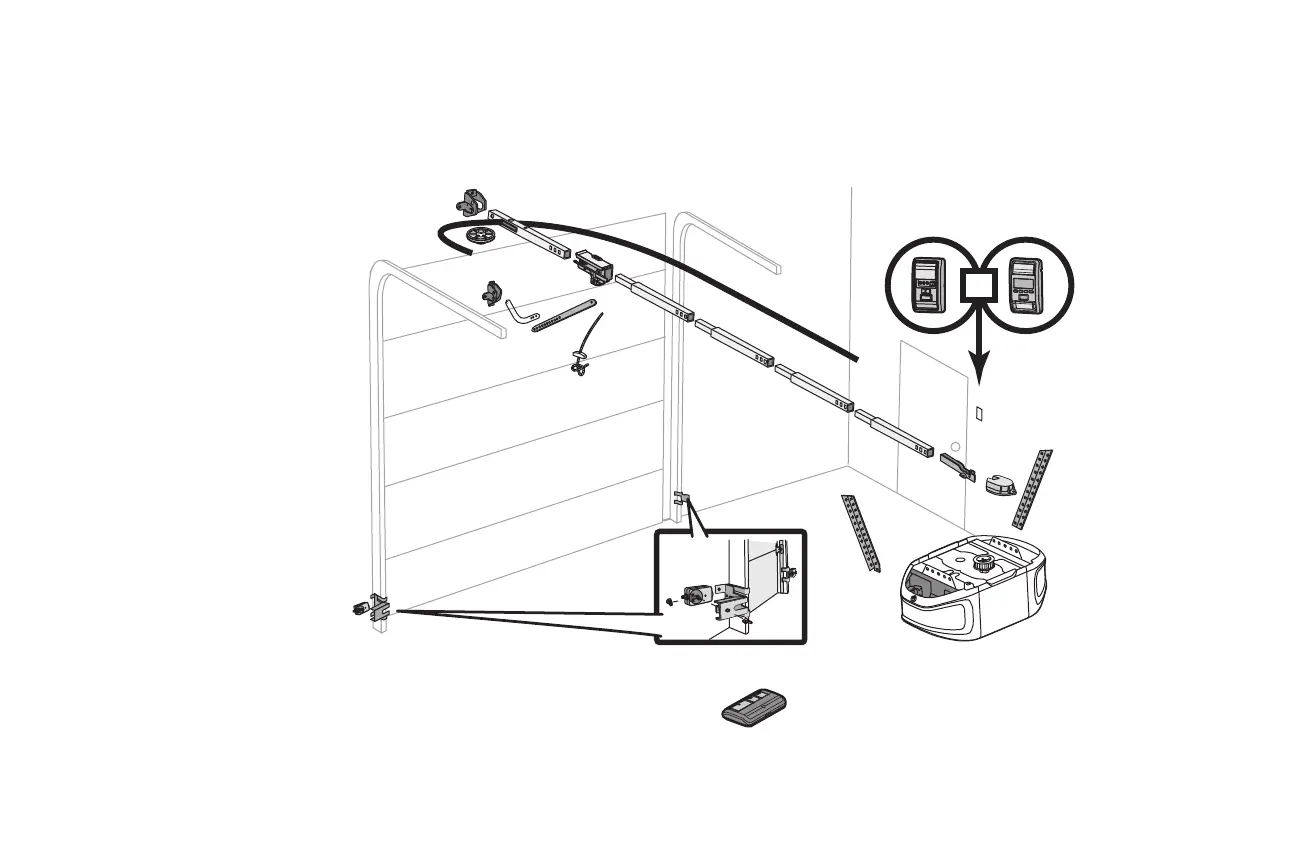

Carton Inventory
Your garage door opener is packaged in one carton which contains the motor unitand all partsillustrated below.Accessories vary depending on the garage door opener model purchased.Depending on your
model, other accessoriesmaybe included with your garage door opener. Instructionsfor these accessories will be attached to the accessory and are notincluded in thismanual.Ifanything is missing, carefully
check the packing material. Parts maybe stuckin the foam.Hardware for assembly and installation is shown on the nextpage. Save the carton and packing material until the installation and adjustmentis
complete. The images throughout thismanual are for reference only and your productmay look different.
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside rail section)
F. Trolley
NOTE: Be sure to assemble the trolley
before sliding onto rail.
G. Emergency release rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside rail section)
J. Garage door opener
K. Sprocket cover and screws
L. “U” bracket
M. Belt
N. Door control (Motion-Detecting Control
Panel or Smart Control Panel
®
)
O. Remote control
P. The Protector System
®
Safety reversing sensors with 2 conductor
white and white/black wire attached:
Sending Sensor (1), Receiving Sensor (1),
and Safety Sensor Brackets (2)
NOTSHOWN
White and red/white wire
Owner's manual
N
A
B
C
H
K
J
O
I
D
E
F
G
L
M
P
OR
Preparation
