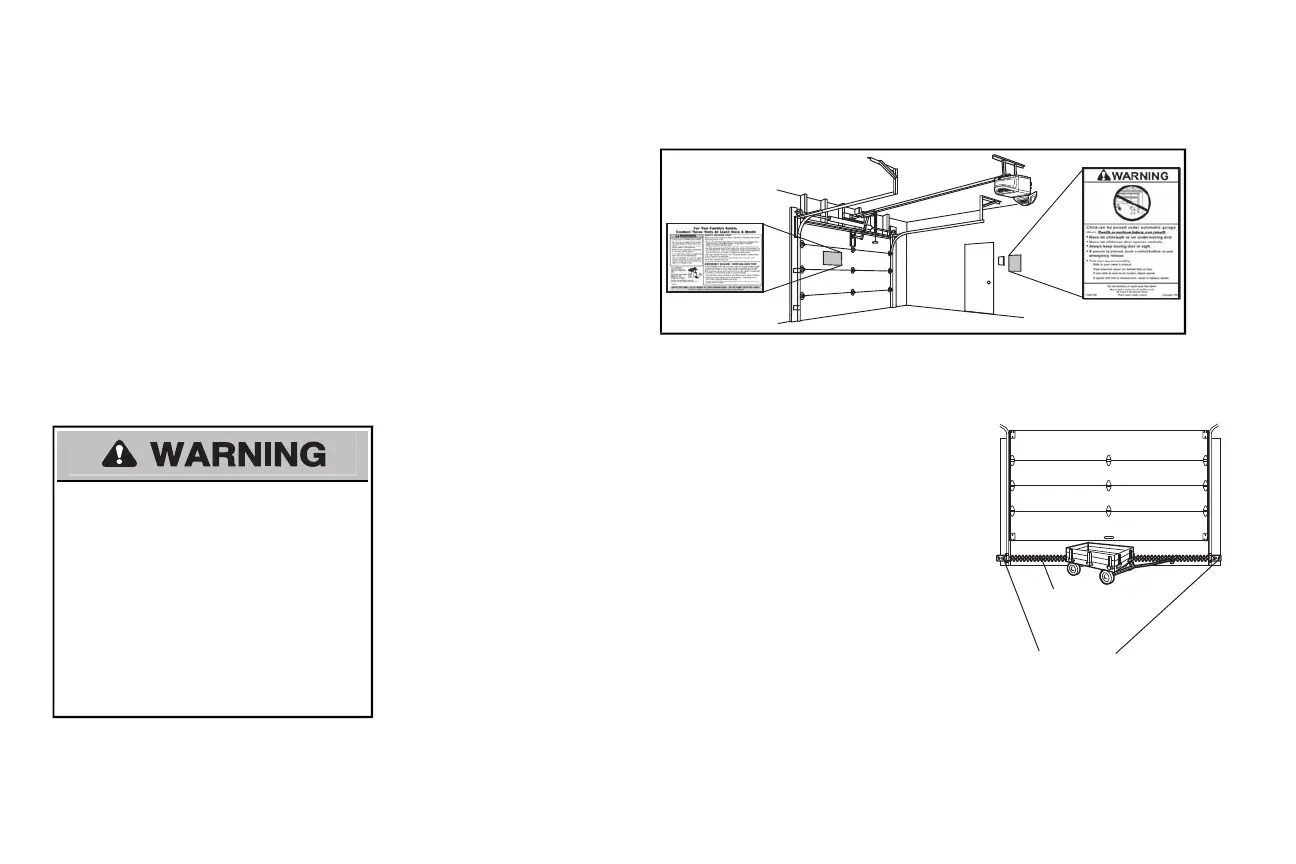

3 Attach the warning labels

Install the Door Control

3.1 Attach the entrapment warning label on the wall near the door control with tacksor staples.

3.2 Attach the manual release/safetyreverse test label in a visible location on the inside of the garage

door.

Install the Protector System

Introduction

Be sure power is NOT connected to the garage

door opener BEFORE installing the safety

reversing sensor.

To preventSERIOUS INJURY or DEATHfrom

closing garage door:

• Correctly connect and align the safetyreversing

sensor.Thisrequired safetydevice MUST NOT

be disabled.

• Install the safetyreversing sensor so beam is

NO HIGHER than 6" (15 cm) above garage

floor.

IMPORTANTINFORMATIONABOUTTHESAFETYREVERSINGSENSORS

The safety reversing sensors must be connected and aligned correctly before the garage door

opener will move in the down direction.

The sending sensor (with an amber LED) transmits an invisible lightbeam to the receiving sensor (with a

green LED). If an obstruction breaks the lightbeam while the door is closing, the door will stop and reverse

to the full open position, and the garage door opener lights will flash 10 times.

NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully closed.

The sleep mode shuts the garage door opener down until activated. The sleep mode is sequenced with the

garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn off and whenever the

garage door opener lights turn on the sensor LEDs will light. The garage door opener will not go into the

sleep mode until the garage door opener has completed 5 cycles upon power up.

When installing the safety reversing sensors check the following:

• Sensors are installed inside the garage,one on either side ofthe door.

• Sensors are facing each other with the lenses aligned and the receiving sensor lensdoesnot receive

direct sunlight.

• Sensors are no more than 6 inches (15 cm) above the floor and the lightbeam is unobstructed.

Safety Reversing Sensor

6" (15 cm) max. above floor

Invisible Light

Beam Protection

Area
