USING THE DOOR CONTROL
SYNCHRONIZETHEDOORCONTROL
To synchronize the door control to the garage door opener,press the push bar until the garage door
opener activates(it may take up to 3 presses).Test the door control by pressing the push bar, each
press ofthe push bar will activate the garage door opener.
Push Bar
LIGHT
button
Motion
Sensor
Navigation
Buttons
LIGHT
Button
HOLD OPEN
Button(TTC)
Motion
Sensor
Push Bar
1 Minute,
5 Minute
and 10 Minute
TTC LED

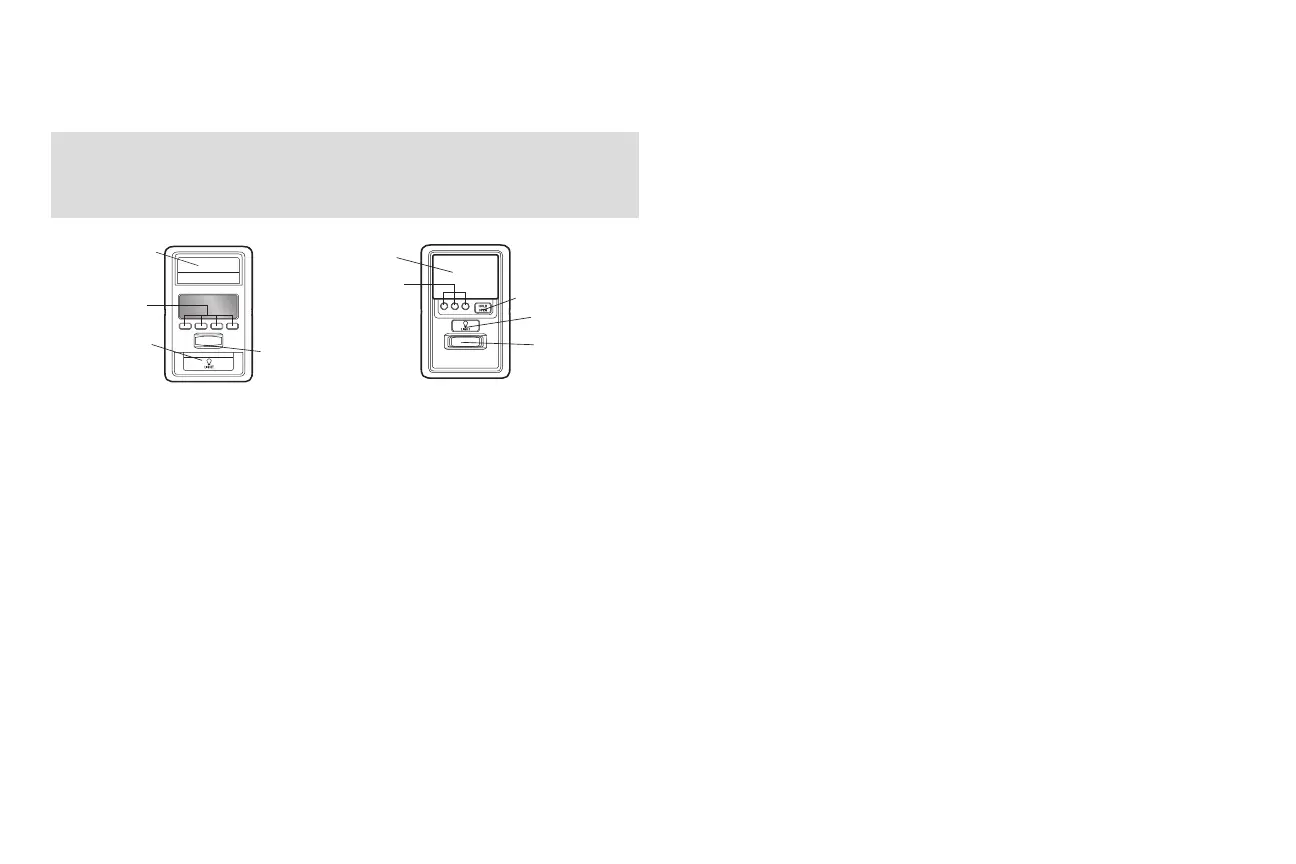

SMART CONTROL PANEL
MOTION-DETECTING CONTROL PANEL
PUSH BAR
Press the push bar to open or close the door.
NAVIGATION BUTTONS (SMART CONTROL PANEL ONLY)
Use the navigation buttons to make selectionsand program features.
LIGHT BUTTON
Press the LIGHTbutton to turn the garage door opener lights on or off.When the lights are turned on
they will stay on until the LIGHTbutton is pressed again,or until the garage door opener is activated.
Once the garage door opener is activated the lights will turn offafter the specified period of time (the
factorysetting is 4-1/2 minutes). The LIGHT button will not control the lights when the door is in motion.
The duration of the light timing can be adjusted using the door control.
SCREEN (SMART CONTROL PANEL ONLY)
The screen will display the time and temperature until the menu button is pressed, and then it will
display the menu options. Ifthere is a problem with the garage door opener the screen will display the
Diagnostic Code. Refer to the Troubleshooting section.
The following features are accessible through the screen using the navigation buttons on the
Smart Control Panel or by lifting the push bar on the Motion-Detecting ControlPanel:
LEARN A DEVICE
Any compatible remote controls, wireless keyless entry, or MyQ™ accessories can be programmed to
the garage door opener by accessing the menu and using the navigation buttons on the Smart Control
Panel or by pressing the Learn button on the Motion-Detecting Control Panel.
LOCK
The LOCK feature is designed to preventactivation of the garage door opener from remote controls
while still allowing activation from the door control and keylessentry.This feature is useful for added
peace ofmind when the home is empty (i.e. vacation).
TIMER-TO-CLOSE (TTC)
DO NOT enable TTC if operating a one-piece door.Factory defaultis setto off. The garage door
opener will Beep and the lights will Flash before closing the door.
If the door encounters an obstruction while closing, the garage door opener will make a second attempt
to close the door. Ifthe obstruction hasnot been cleared after the second attempt, the garage door
opener will reverse open, stop and W LL NOT close until the obstruction hasbeen cleared.TTC WILL
NOTwork if the garage door opener is operating by battery power or if the safetyreversing sensors are
misaligned. Thisfeature is NOT intended to be the primary method of closing the door.A keyless entry
should be installed in the event of an accidental lock out when using this feature.
AUTOMATIC LIGHT
Motion Sensor
Factory defaultis setto on.This feature automatically turns on the garage door opener lights when
motion is sensed. The lights will come on for the setperiod of time,then shut off. Ifusing the garage door
opener light asa work light disable the motion sensor,otherwise the light will turn offautomaticallyif you
are beyond the range of the sensor.
Light Feature
The lights will turn on when someone entersthrough the open garage door and the safetyreversing
sensor infrared beam is broken.
Door Control
