2 Ensure the Safety Reversing Sensors are aligned
The door will not close if the sensors have not been
installed and aligned correctly.
When the lightbeam is obstructed or misaligned while
the door is closing, the door will reverse and the
garage door opener lights will flash ten times.Ifthe
door is alreadyopen, it will notclose. The sensorscan
be aligned byloosening the wing nuts,aligning the
sensors, and tightening the wing nuts.
.

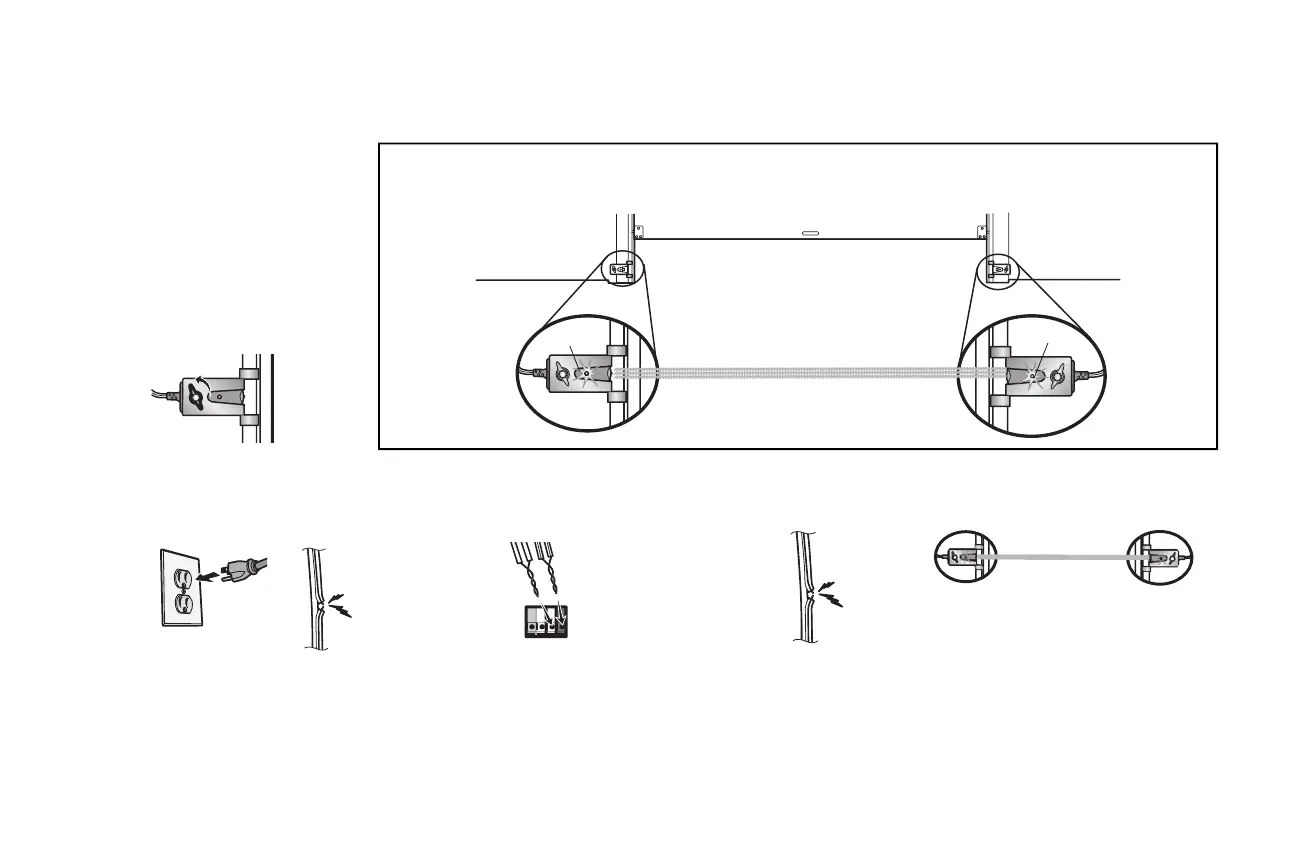

2.1 Checkto make sure the LEDs in both sensorsare glowing steadily. The LEDs in both sensors will glow steadily if theyare aligned and
wired correctly.
Green LED
ROSNES GNIVIECERROSNES GNIDNES
Amber LED
If the receiving sensor is in
direct sunlight, switch it with
sending sensor so it is on the
opposite side of the door.
(invisible light beam)
IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING: IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
Make sure there is
power to the garage
door opener.
Make sure the
sensor wire is not
shorted/broken.
Make sure the sensor has been wired
correctly: white wires to white terminal
and white/black wires to grey terminal.
Make sure the sensors are aligned.Make sure the sensor wire is
not shorted/broken.
3 Ensure the Door Control is wired correctly
If the door control hasbeen installed and wired correctly, a message will displayon the Smart Control Panel screen or the command LED on the Motion-Detecting Control Panel will blink.
