Chamberlain WD962KPEV User Manual

18
OPTION B ONE-PIECEDOORS

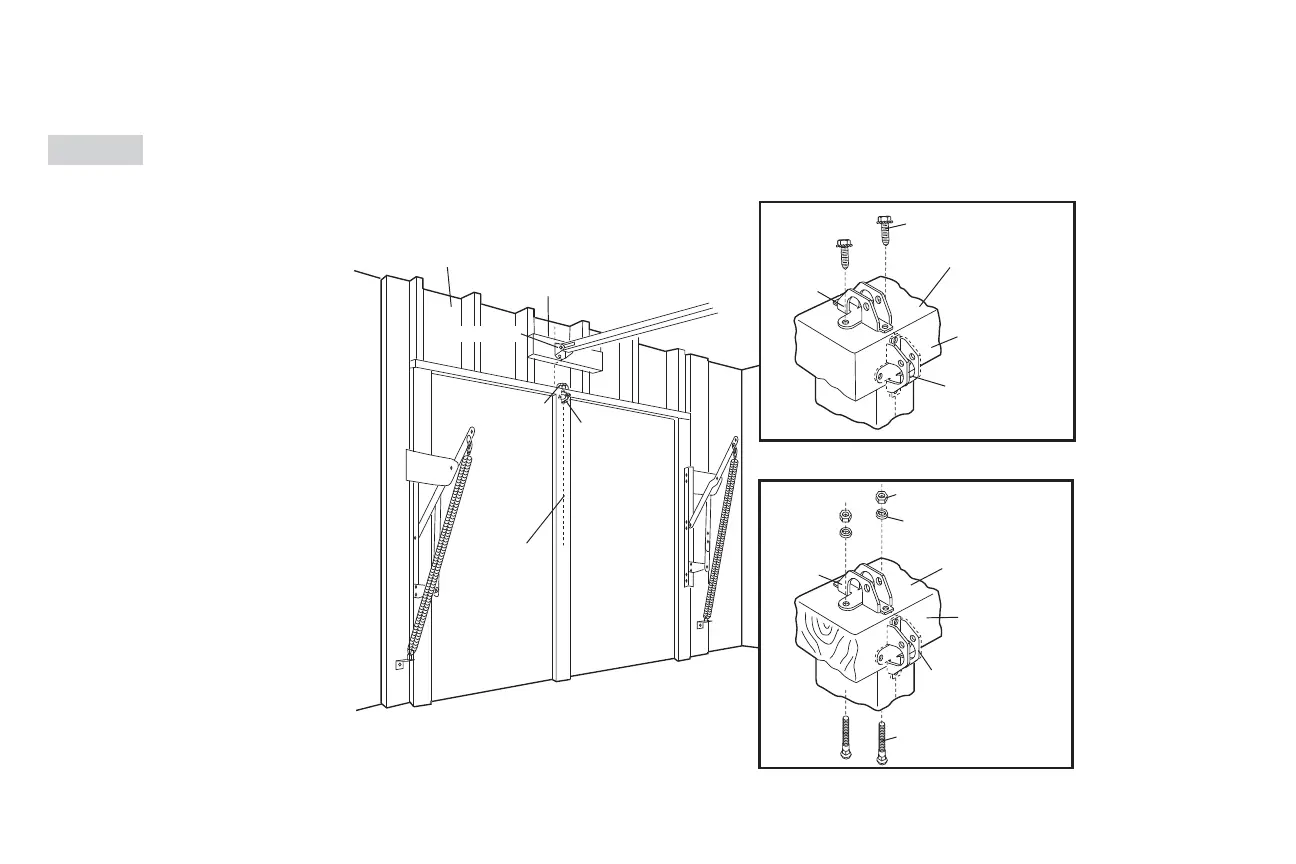

8.1B Center the door bracketon the top of the
door,in line with the header bracketas
shown.
8.2B Mark either the leftand right, or the top
and bottomholes.
Metal Doors:
• Drill 3/16" pilotholes and fasten the bracket
with the self-threading screws (H16)
provided.
Wood Doors:
• Drill 5/16" holesand use 5/16"x2" carriage
bolts, lockwashers and nuts (not provided)
or 5/16"x1-1/2" lag screws(not provided)
depending on your installation needs.
NOTE: The door bracket may be installed on the
top edge of the door if required for your
installation. (Refer to the dotted line optional
placement drawing.)
For a door with no exposed framing, or for the
optional installation, use lag screws 5/16"x1-1/2"
(not provided) to fasten the door bracket.
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Door Bracket
Header Bracket
Header Wall
2x4 Support
(Finished Ceiling)
H16
Door
Bracket
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Optional
Placement
Top Edge
of Door
Top of Door
(Inside Garage)
Door
Bracket
Carriage Bolt 5/16"x2"
(not provided)
Nut 5/16"-18
Lock Washer 5/16"
Metal Door
Wood Door
Installation
8 Install the door bracket

Chamberlain WD962KPEV Specifications

General

Brand	Chamberlain
Model	WD962KPEV
Category	Garage Door Opener
Language	English
