7

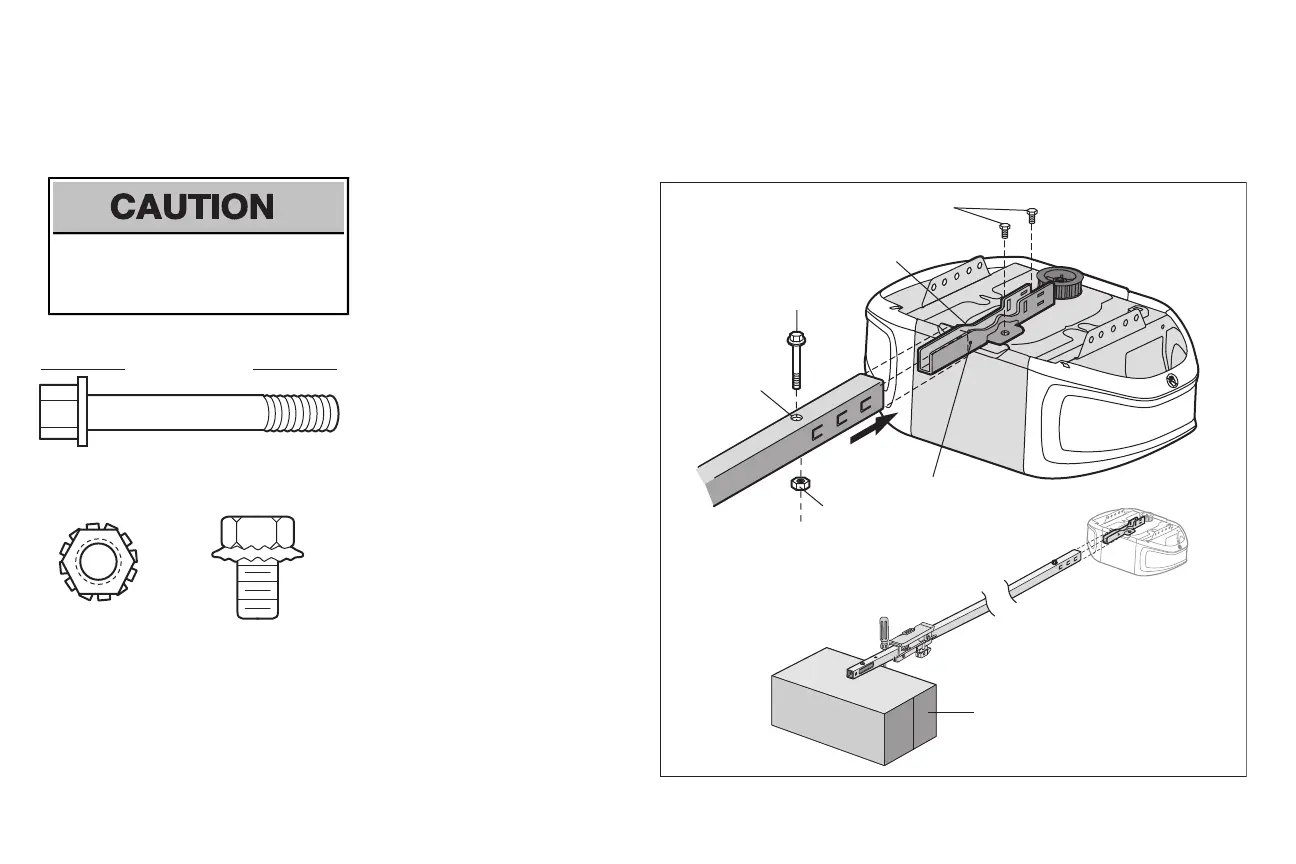

2 Fasten the rail to the garage door opener
To avoid SERIOUS damage to garage door
opener, use ONLY those bolts/fasteners
mounted in the top of the opener.
(Mounted in the
garage door opener)
HARDWARE
H2
Bolt 1/4"-20x1-3/4"
H4
Lock Nut 1/4"-20
NOTE: ONLY use the bolts removed from the
garage door opener. Place the garage door
opener on the packing material to prevent
scratching.
2.1 Insert the bolt(H2) into the hole on the
backend of the rail as shown. Tighten
securely with the lock nut (H4). Do not
overtighten.
2.2 Remove the two bolts from the top of the
garage door opener.
2.3 Place the “U” bracket, flat side down onto
the garage door opener and align the
brackethole with the boltholes.Fasten the
“U” bracket with the previously removed
bolts.
2.4 Prop up the end of the rail on the carton to
help align it with the “U” bracket.
2.5 Slide the rail onto the “U” bracket, until it
reachesall the stops on the top and sides
of the “U” bracket.
H2
“U” Bracket
Bolts
H4
SLIDE RAIL TO
STOPS ON TOP AND
SIDES
Cover
Protection
Bolt Hole
Carton
Assembly
To Next Page
