Champion DH6000T Installation Guide

Installation
LINE IN
L1
L2
L1
L2
1 Phase Power Connection
208-240V/60/1
GND
NOT
USED
NOT
USED
3 Phase Power Connection
208-240/480V/60/3
GND
LINE IN
L1
L2
L3
L1
L2
L3
Fig. 13
Fig. 12
WARNING:
There may be more than one power source connected to the
machine. Make sure all power sources are disconnected,
locked and tagged out before working on the machine.

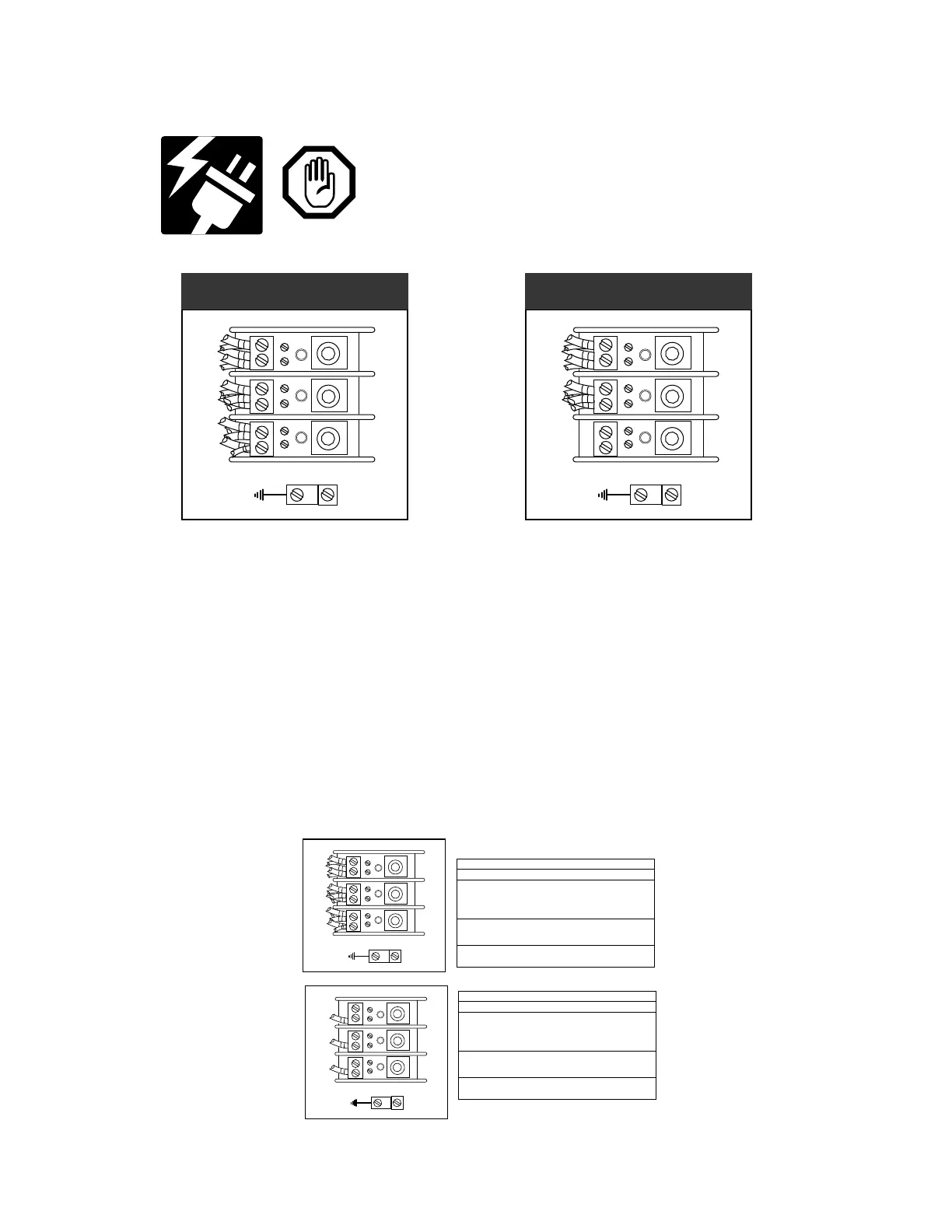

Electrical Connection - Single and Three Phase
1. Machine wiring can be converted from a single to a two point input power connection
by installing a field conversion kit, P/N 901168.
2. New electrical connection data plates must be applied in front of the input terminal
blocks.
3. Refer to Appendix B at the end of this manual for conversion instructions.
GND
LINE IN
L1
L2
L3
L1
L2
L3
GND
LINE IN
L1
L2
L3
L1
L2
L3
Volt: 208-240 Amp: 38-34Ph: 3 Hz: 60
2-Point Machine Connection Data Plate
Mod: DH6000T Series: VHR
Minium Supply Conductor Ampacity
For supply connection, use copper connectors in accordance
with local electrical code. Rated Minimum 90°C (194°F).
50/50 AMPS
50/50 AMPS
Maximum Supply Overcurrent
Protection Device
Overcurrent Protection Device: Time Delay or Inverse Time
Circuit Breaker
Volt: 208-240 Amp: 39-34Ph: 3 Hz: 60
2-Point Booster Connection Data Plate
Mod: DH6000T Series: VHR
Minium Supply Conductor Ampacity
For supply connection, use copper connectors in accordance
with local electrical code. Rated Minimum 90°C (194°F).
50/50 AMPS
50/50 AMPS
Maximum Supply Overcurrent
Protection Device
Overcurrent Protection Device: Time Delay or Inverse Time
Circuit Breaker
Fig. 14
Single to Two Point Power Connection Conversion
9
