Installation
Ventilation (Vent Fan Control)

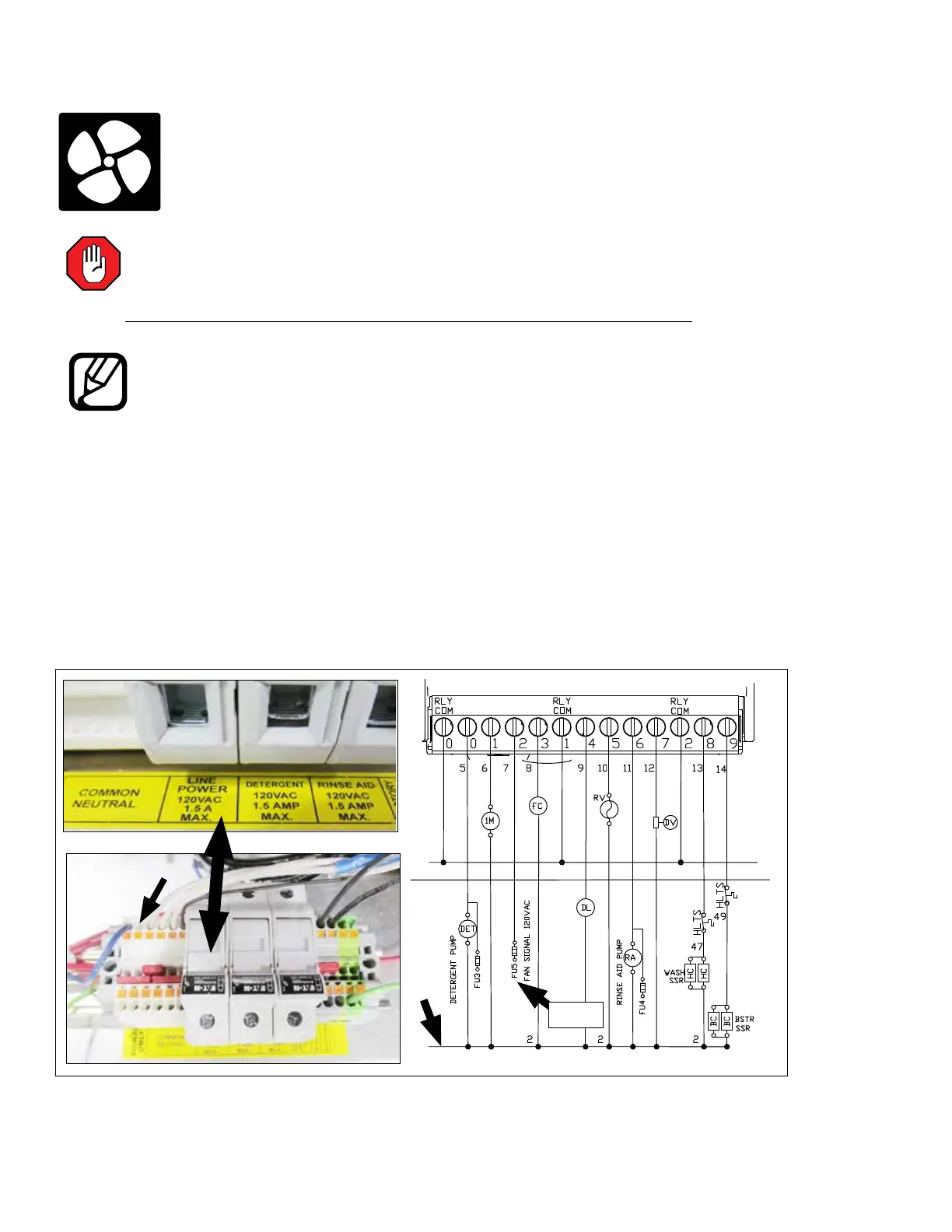

The standard DH6000 and DH6000T are equipped with a 120VAC, 1.5 A MAX
signal for an external vent fan contactor (supplied by others).
STOP:
The 120VAC signal is designed only to operate an external vent fan contactor
(supplied by others) and is limited to a 1.5A maximum load.
DO NOT CONNECT A VENT FAN MOTOR TO THE SIGNAL TERMINALS.
To connect the external vent fan contactor:
1. Disconnect all power to the machine.
2. Remove the lower front panel and locate the three fuse blocks on the machine base.
3. Connect one wire of the external vent fan contactor to the LINE POWER fuse block (Fig. 1).
4. Connect the other wire to a #2 neutral terminal on the terminal block (Fig. 2).
5. Connect the external vent fan contactor coil wires.
6. Re-install the lower panels.
7. Restore power to the machine.
(Electrical Schematic P/N 703078-B from control cabinet)
NOTE:
The 120VAC signal is available whenever the dishwasher green power switch is ON.
Neutral #2
Wire
Fig. 2
Fig. 1
#2
Signal
22
