Converting 3 Phase to 1-Phase Operation
Installation
OPTIONAL CHAMPION BUILT-IN DETERGENT
AND RINSE-AID DISPENSING SYSTEM
(IF EQUIPPED)
DET
R /A

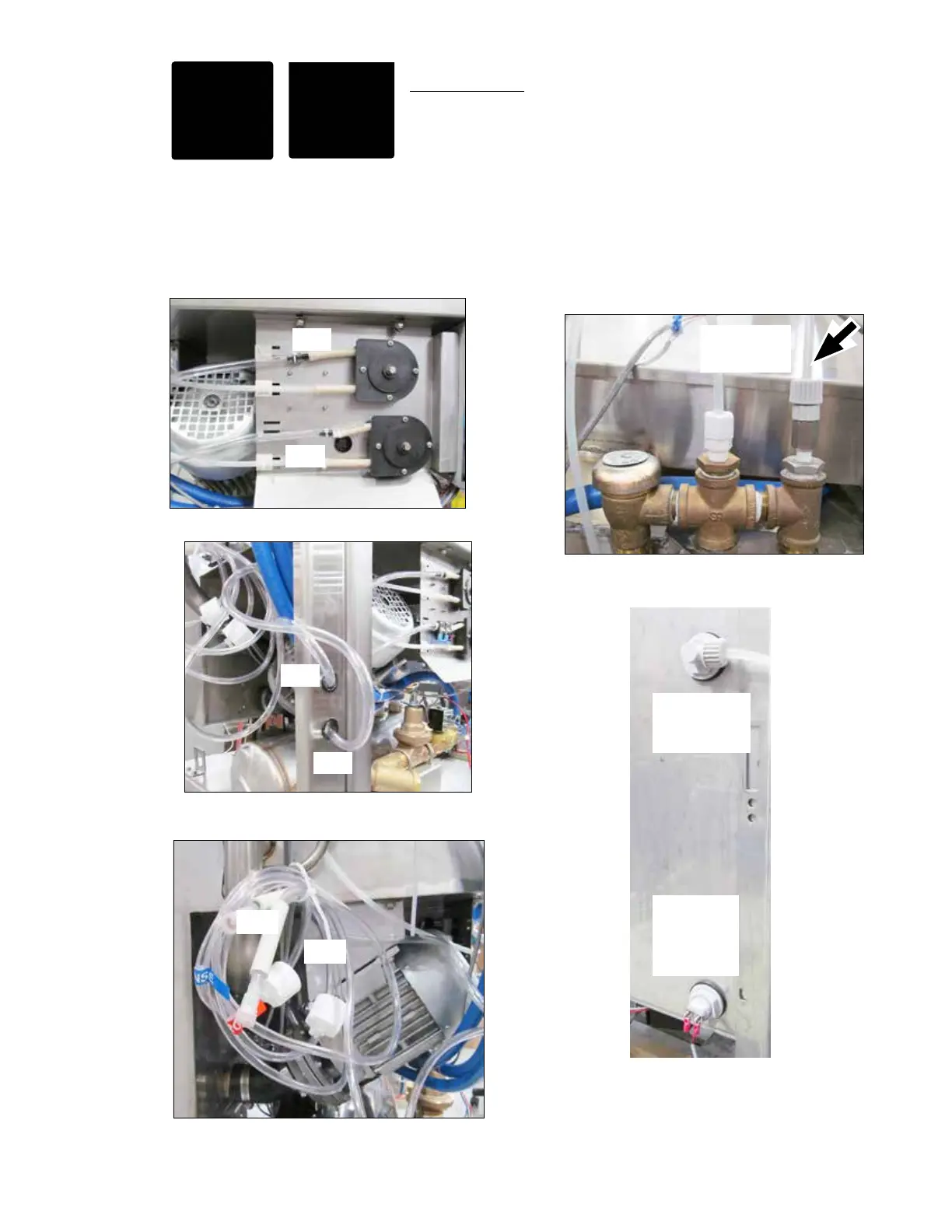

1. Detergent and rinse-aid dispensing pumps are located on left-side of machine (Fig.16).
2. Pick-up tubing (Fig.17) exits left-side of machine to containers.
The pick-up tubes are stowed on the back of the machine (Fig. 18).
3. Rinse-aid is dispensed in the final rinse manifold at the top rear of machine. (Fig. 19). Two
7/8" diameter holes are on right-side of machine for detergent sensor and injector (Fig. 20).
Fig. 20
Detergent
Injector
Detergent
Tank
Sensor
Fig. 17
DET
R/A
Fig. 18
DET
R/A
DET
R/A
Fig. 16
Fig. 19
Rinse-aid
Injector
11
